Manufacturer: NVIDIA Corporation
Manufacturer Part Number: 9209N42C00RB7C0
Manufacturer Website Address: http://www.nvidia.com
Brand Name: NVIDIA
Product Line: Spectrum-4
Product Series: SN5000
Product Model: SN5400

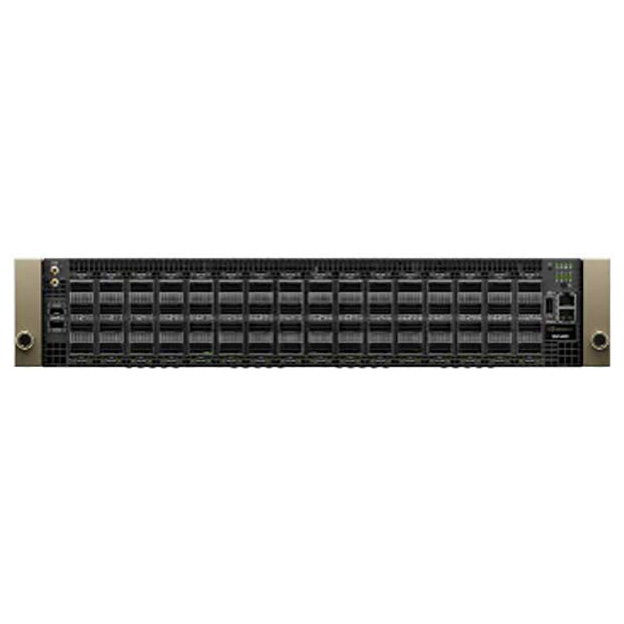

Product Name: Spectrum-4 SN5000 SN5400 Layer 3 Switch
Marketing Information:
The NVIDIA Spectrum SN5000 series switches are the 5th generation of Spectrum switches, purpose-built to accelerate data center fabrics. The SN5000 series provides port speeds spanning from 40GbE to 800GbE, and delivers accelerated Ethernet to every data center. The SN5000 series is ideal for enabling cloud-scale infrastructure for data centers of any size. The SN5000 switch systems provide high performance and consistent low latency along with support for advanced software defined networking features, making them the ideal choice for AI, cloud, data analytics, and simulation applications.
Powered by NVIDIA Spectrum-4 ASICs, the SN5000 series features dynamic, flexible shared buffers and predictable wire speed performance. The SN5000 is built to accelerate NVIDIA platforms, including NVIDIA EGXTM, NVIDIA DGX PODTM , and NVIDIA OVXTM SuperPODs, and AI solution stacks such as NVIDIA AI Enterprise and NVIDIA LaunchPad. As part of the Spectrum platform, the SN5000 systems are pre-tested and pre-validated with NVIDIA’s full portfolio of Ethernet networking technology, including BlueField DPUs, ConnectX SmartNICs, and LinkX interconnects. This end-to-end switch to host solution is critical to powering accelerated workloads, and delivers the high performance and innovative feature set needed to supercharge cloud-native applications at scale.
SN5000 switch systems are based on the high-performance Spectrum-4 ASIC with a bidirectional switching capacity of up to 51.2 Tbps. SN5000 platforms are available in a range of configurations, each delivering high performance combined with feature-rich layer 2 and layer 3 forwarding, ideally suited for both top-of-rack leaf and fixed configuration spines. SN5000 series provides full wire speed, cut through-mode latency, on-chip fully-shared 128MB packet buffering, and flexible port use in addition to advanced capabilities. Combining a wide range of innovations in the area of programmability, telemetry, and tunneling with industry-leading performance, NVIDIA SN5000 series is capable of addressing the complex networking requirements of today’s data centers.
Product Type: Layer 3 Switch
Technical Information
Features: Reset Button
Interfaces/Ports
Port/Expansion Slot Details:
- 64 x 10/25/40/50/100/200/400 Gigabit Ethernet QSFP56-DD Expansion Slot
- 2 x Gigabit Ethernet SFP28 Expansion Slot
- 1 x 10/100/1000 Gigabit Ethernet Management Port
- 1 x USB Type A Port
- 1 x RS232 RJ-45Console Port
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology:
- 10 Gigabit Ethernet
- 25 Gigabit Ethernet
- 40 Gigabit Ethernet
- 50 Gigabit Ethernet
- 100 Gigabit Ethernet
- 200 Gigabit Ethernet
- 400 Gigabit Ethernet
Network Technology:
- 10GBase-X
- 25GBase-X
- 40GBase-X
- 50GBase-X
- 100GBase-X
Maximum Data Transfer Rate: 50 GB/s
I/O Expansions
Total Number of Expansion Slots: 66
Expansion Slot Type:
- QSFP56-DD
- SFP28
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Power Source: Power Supply
Power Consumption: 670 W
Physical Characteristics
Compatible Rack Unit: 2U
Form Factor: Rack-mountable
Height: 3.4″
Width: 17.2″
Depth: 28.3″
Weight (Approximate): 51.81 lb
Miscellaneous
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
