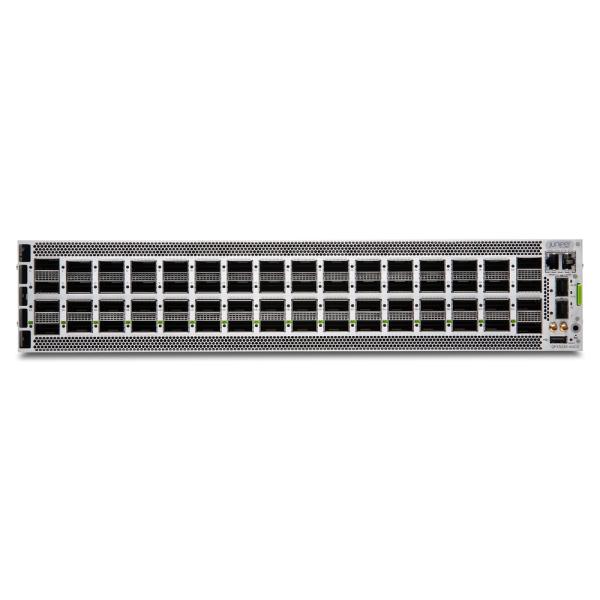

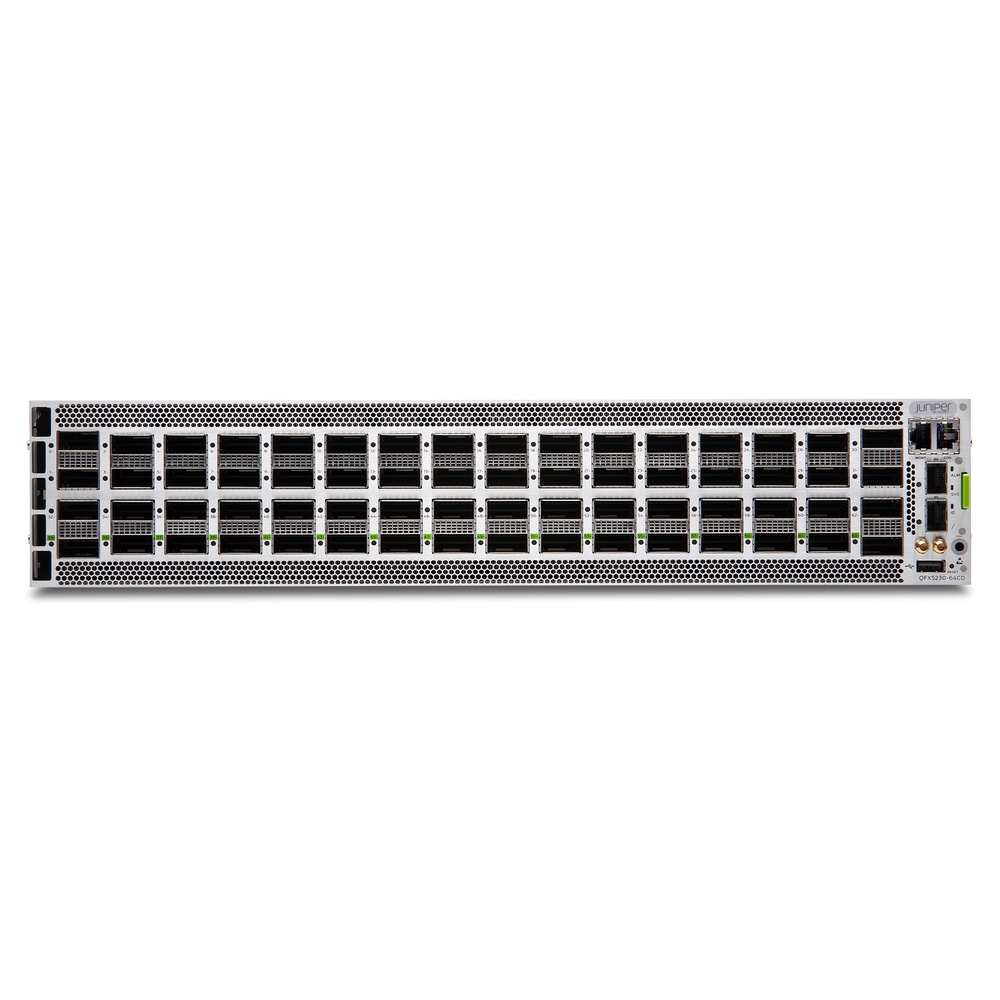

Juniper QFX5230-64CD 64 Port 400G QSFP56-DD Ethernet 2U Switch

MFR#

QFX5230-64CD-AFI

Product Type: Ethernet Switch
Product Family: QFX
Brand Name: Juniper
Form Factor: Rack-mountable
Ethernet Technology: 400 Gigabit Ethernet
Product Brief: QFX5230-64CD-AFI

Juniper QFX5230-64CD-AFI, Hardware with Base Software, 2U, 64 QSFP56-DD Ports, Redundant Fans, 2 AC Power Supplies, Back-to-Front Airflow

Request Pricing
?

B2B Pricing

Shop with confidence knowing that you have a dedicated B2B account team ready to answer any technical or sales questions.

  • Exclusive business pricing
  • Custom quotes
  • Responsive technical support
  • Pre-sales and after-sales support
Add to Quote Cart

Ask a Product Specialist

Looking for something else or have a question about this product?
Overview
General Information
Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: QFX523064CDAFI
Manufacturer Website Address: http://www.juniper.net
Brand Name: Juniper
Product Series: QFX
Product Model: QFX5230-64CD
Product Name: QFX5230-64CD Ethernet Switch
Marketing Information:

Product Overview

With the current growth in artificial intelligence (AI) and machine learning (ML) developments, networks are expected to perform at their best to support heavy workloads. Combine this requirement with the already mature containerized workload requirement, and it’s clear why networks are hitting capacity. Higher bandwidth requirements between the server and the top-of-rack switch result in higher 400G radix requirements at the spine and super-spine layer of the IP fabric multitier architecture.

Juniper Networks QFX5230-64CD switch is aimed at supporting these high-speed, high-density, spine-and-leaf IP fabrics. Supporting 400GbE, 200GbE, 100GbE, 50GbE, 40GbE, 25GbE, and 10GbE connections and offering advanced L2 and L3 features, and Secure ZTP, the QFX5230-64CD enables network operators to build large, next-generation IP fabrics based on a proven, Internet-scale software suite with best-in-class automation capabilities.

Product Description

Juniper Networks® QFX5230-64CD switch is a high-radix class switch, dedicated for high-bandwidth network switching devices supporting up to 64 × 400GbE, 128 × 200GbE, 256 × 100GbE, 64 × 40GbE, 256 × 25GbE, 256 × 10GbE ports in 2 U form factor. This makes the QFX5230-64CD optimal for a spine and super-spine role within IP and Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) fabrics. The additional Remote Direct Memory Access over Converged Ethernet (RoCEv2) capabilities of the QFX5230-64CD support IP storage deployments where instead of relying on deep buffer switching, the QoS mechanisms such as priority-based flow control-distributed services code point (PFC-DSCP) and explicit congestion notification (ECN) deliver high performance for the storage workloads. Support for ZR/ZR-M optics makes it suitable for edge and data center interconnect (DCI) use cases.

Automation and Monitoring

Juniper® Apstra® intent-based networking delivers full Day 0 through Day 2+ capabilities for IP/EVPN fabrics with closed-loop assurance in the data center. Apstra is a fabric management solution that empowers organizations to automate and manage their networks across virtually any data center design, vendor, and topology, making private data center as easy as cloud. Apstra provides full Day 2+ operations assurance with multiple built-in intent-based analytics probes to assure your network is running as designed. In addition, Apstra provides a simple UI workflow to create custom intent-based analytics to capture, enrich, and visualize data from the managed devices. Apstra also provides the capability to capture and analyze flow data to provide complete network visibility.

For additional automation, Junos® OS Evolved supports a robust API set to support HashiCorp® Terraform®, Ansible, zero-touch provisioning (ZTP), operations and event scripts, automatic rollback, and Python scripts. The QFX5230-64CD supports Junos Telemetry Interface, a modern telemetry streaming tool that provides performance monitoring in complex, dynamic data centers.

Product Type: Ethernet Switch
Interfaces/Ports
Modular: Yes
Port/Expansion Slot Details: 64 x 400 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology: 400 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Slots: 64
Expansion Slot Type: QSFP56-DD
Network & Communication
Layer Supported: 3
Networking Standards:

  • IEEE 802.1D
  • IEEE 802.1w
  • IEEE 802.1s
  • IEEE 802.1Q
  • IEEE 802.3ad
  • IEEE 802.1ab
  • IEEE 802.1p
  • IEEE 802.1Qbb

Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 2
Power Consumption: 580 W
Physical Characteristics
Compatible Rack Unit: 2U
Form Factor: Rack-mountable
Height: 3.4″
Width: 17.4″
Depth: 25.6″
Weight (Approximate): 55 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:

  • RoHS
  • WEEE
  • REACH

Warranty
Limited Warranty: 1 Year

Specifications
Weight 55 kg
Dimensions 17.4 × 3.4 cm
Product Type

Ethernet Switch

Product Family

QFX

Brand Name

Juniper

Form Factor

Rack-mountable

Ethernet Technology

400 Gigabit Ethernet

Media Type Supported

Optical Fiber

Manageable

Yes

Expansion Slot Type

QSFP56-DD

Power Source

Power Supply

Layer Supported

3

Power Consumption

580 W

Questions & Answers

Please login to post questions

Question:

What are the available breakout options?

[email protected]
02-Mar-2024

Answer:

Yes, you can break out to 128 × 200GbE, 256 × 100GbE, 64 × 40GbE, 256 × 25GbE, or 256 × 10GbE.

Question:

What is the throughput of this switch?

[email protected]
03-Mar-2024

Answer:

25.6 Tbps bidirectional.

Question:

What use cases are these designed for?

[email protected]
03-Mar-2024

Answer:

This switch is designed for the following use cases: data center fabrics (spine, super spine, including AI), IP storage networks, and edge/data center interconnect (DCI).
