Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: QFX5220-32CD-AFI
Manufacturer Website Address: http://www.juniper.net
Brand Name: Juniper
Product Series: QFX5200
Product Model: QFX5220-32CD

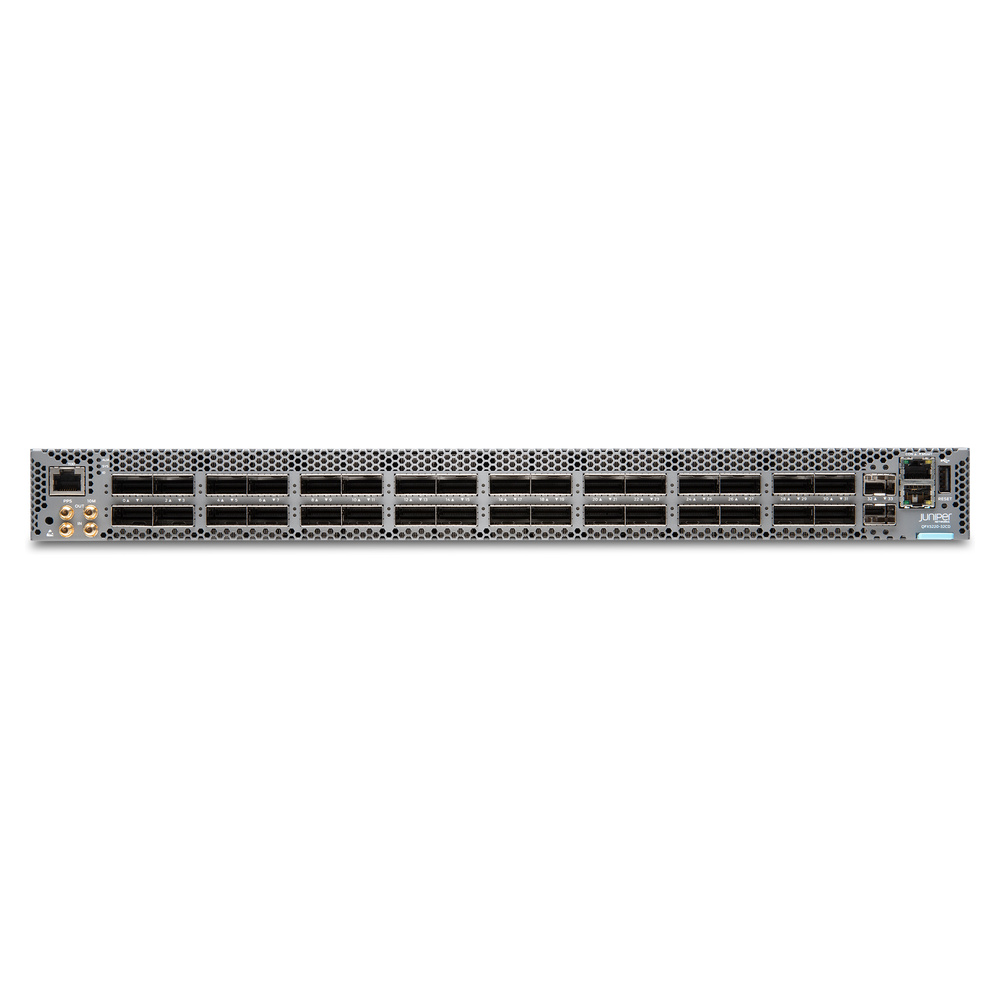

Product Name: QFX5220-32CD Ethernet Switch
Marketing Information:
The QFX5220-32CD offers 32 ports of 400-Gigabit Ethernet in a low-profile 1-U form factor. With 12.8-Tbps bandwidth, the QFX5220-32CD is optimally designed for spine-and-leaf deployments in enterprise, service provider, and cloud data centers. The high-speed ports support a wide variety of port configurations that include speeds of 400 Gbps, 100 Gbps, 25 Gbps, 40 Gbps, and 10 Gbps.
An Intel Xeon D-1500 processor drives the QFX5220 control plane, which runs the Junos OS Evolved software. The Junos OS Evolved software image is stored on two internal 50-GB solid-state drives (SSDs).
Product Type: Ethernet Switch
Interfaces/Ports
Modular: Yes
Port/Expansion Slot Details:
- 32 x 400 Gigabit Ethernet Expansion Slot
- 2 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology:
- 400 Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology: 10GBase-X
I/O Expansions
Number of Total Expansion Slots: 34
Expansion Slot Type:
- QSFP-DD
- SFP+
Number of SFP+ Slots: 2
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
- WEEE
- RoHS 2
- REACH
Warranty
Limited Warranty: 1 Year
