Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: QFX5220-128C-AFO
Manufacturer Website Address: http://www.juniper.net
Brand Name: Juniper
Product Series: QFX5200
Product Model: QFX5220-128C

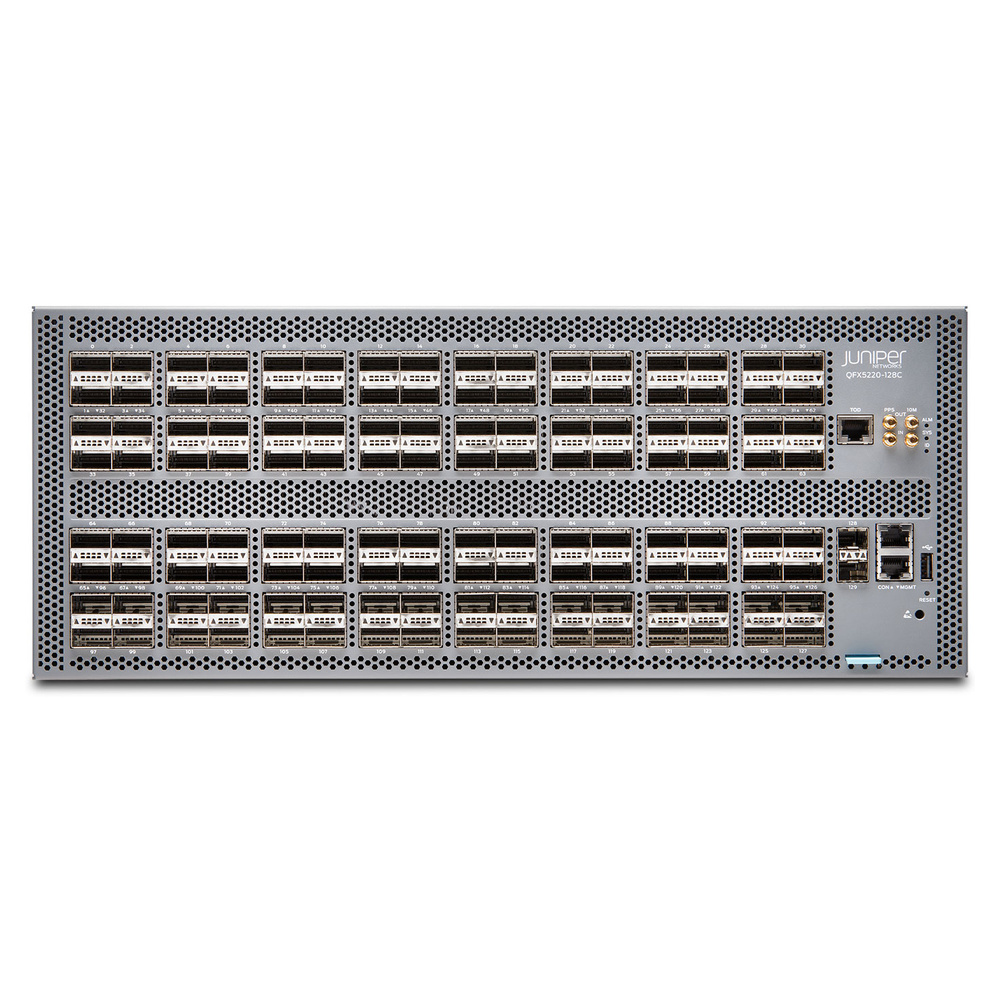

Product Name: QFX5220-128C Ethernet Switch
Marketing Information:
The QFX5220-128C offers 128 ports of 100-Gigabit Ethernet in a 4-U form factor. With 12.8 terabits per second (Tbps) bandwidth, the QFX5220-128C is optimally designed as a data aggregation or top-of-rack switch for small to medium size data centers and Massively Scalable Data Center (MSDC) deployments. The 100-Gigabit Ethernet ports can be configured either for 100-Gbps or 40-Gbps speeds. The 100-Gbps ports can also be channelized into 4 x 25 Gbps or 4 x 10 Gbps. There are two dedicated small-form factor plugable plus (SFP+) ports for 10 Gigabit or 1 Gigabit Ethernet support.
An Intel Xeon D-1518 processor drives the QFX5220 control plane, which runs the Junos OS Evolved software. The Junos OS Evolved software image is stored on two internal 50-GB solid-state drives (SSDs). The QFX5220-128C is available with ports-to-FRUs airflow (Airflow Out) and with AC or DC power supplies.
Product Type: Ethernet Switch
Interfaces/Ports
Modular: Yes
Port/Expansion Slot Details:
- 128 x 100 Gigabit Ethernet Expansion Slot
- 2 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology:
- 100 Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 10GBase-X
- 100GBase-X
I/O Expansions
Number of Total Expansion Slots: 130
Expansion Slot Type:
- QSFP28
- SFP+
Number of SFP+ Slots: 2
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 4U
Form Factor: Rack-mountable
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
- WEEE
- RoHS 2
- REACH
Warranty
Limited Warranty: 1 Year
