Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: EX4100-F-12T
Manufacturer Website Address: http://www.juniper.net
Brand Name: Juniper
Product Series: EX4100-F
Product Model: EX4100-F-12T
Product Name: EX4100-F-12T Ethernet Switch
Marketing Information: The Juniper Networks® EX4100-F line of Switches offers a secure, cloud-ready portfolio of access switches ideal for enterprise branch, remote office, and enterprise campus networks. The EX4100-F switches combine the simplicity of the cloud, the power of Mist AI™, and a robust hardware foundation with high performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper® Mist™ Wired Assurance, the EX4100-F line of Switches can be effortlessly onboarded, configured, and managed from the cloud. This simplifies operations, improves visibility, and ensures a much better experience for connected devices.
Key features of the EX4100-F include:
- Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
- Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
- Standards-based microsegmentation using group-based policies (GBPs)
- Flow-based telemetry to monitor traffic flows for anomaly detection, ability to measure packet delays and report drop reasons
- 10-member Virtual Chassis support
Offering a full suite of Layer 2 and Layer 3 capabilities, the EX4100-F enables multiple deployments. As scaling requirements increase, Juniper’s Virtual Chassis technology allows up to 10 EX4100-F switches to be seamlessly interconnected and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.
The EX4100-F line consists of the following models:

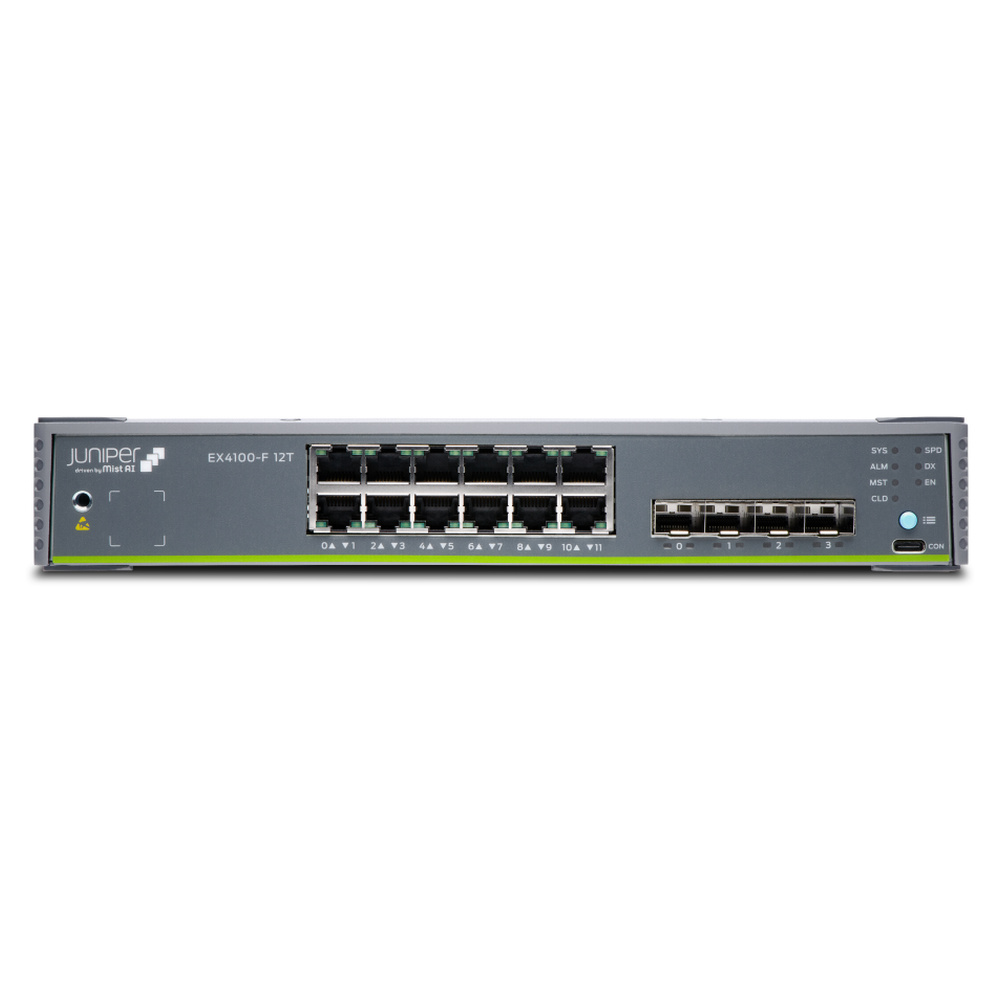

- The EX4100-F-12T, which is a compact, fanless switch offering 12 x 1GbE non-PoE access ports.
- The EX4100-F-12P, which is a compact, fanless switch offering 12 x 1GbE Power over Ethernet Plus (PoE+) access ports and delivering up to 30 W per port with a total of 180 W of PoE power budget with an external power adapter. EX4100-F-12P can also be powered from an external 90 W power sourcing equipment (PSE) device connected via the uplink port. Additional 90 W of PoE budget is available if the second uplink port is connected to a PSE device. With external power adapter and the two uplink ports connected to 90 W external PSE, total PoE power budget supported is up to 300 W.
- The EX4100-F-24T, which offers 24 x 1GbE non-PoE access ports.
- The EX4100-F-24P, which offers 24 x 1GbE PoE+ access ports, delivering up to 30 W per port with an overall total 370 W of PoE power budget.
- The EX4100-F-48T, which offers 48 x 1GbE non-PoE access ports.
- The EX4100-F-48P, which offers 48 x 1GbE PoE+ access ports and delivers up to 30 W per port with an overall total PoE Power budget of 740 W.
Product Type: Ethernet Switch
Technical Information
Features: Fanless
Interfaces/Ports
Total Number of Network Ports: 12
Network (RJ-45): Yes
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:
- 12 x Gigabit Ethernet Network
- 2 x 10 Gigabit Ethernet Uplink
- 4 x 10 Gigabit Ethernet Stack
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 10GBase-T
- 10GBase-X
I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Networking Standards:
- IEEE 802.11ax
- IEEE 802.1ab
- IEEE 802.1ak
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3ae
- IEEE 802.3x
- IEEE 802.3ax
- IEEE 802.3ah
- IEEE 802.1D
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.3ad
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Adapter
Power Consumption: 55 W
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:
- Rack-mountable
- Wall Mountable
- DIN Rail Mountable
Height: 1.8″
Width: 10.6″
Depth: 9.7″
Weight (Approximate): 5.95 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Warranty
Limited Warranty: Lifetime
