Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: EX4100-24T
Manufacturer Website Address: http://www.juniper.net
Brand Name: Juniper
Product Series: EX4100
Product Model: EX4100-24T

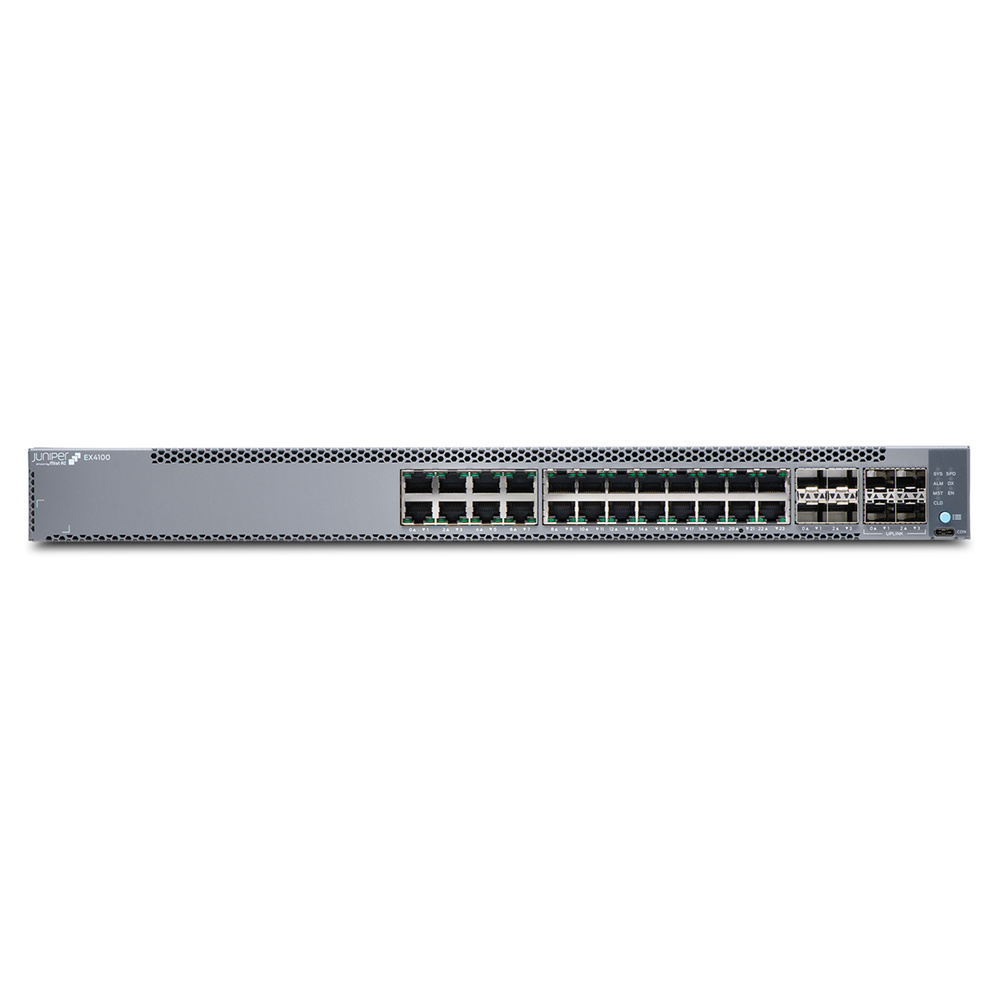

Product Name: EX4100-24T Ethernet Switch
Marketing Information: The Juniper Networks® EX4100 line of Ethernet Switches offers a secure, cloud-ready portfolio of access switches ideal for enterprise branch, campus, and data center networks. The EX4100 switches combine the simplicity of the cloud, the power of Mist AI™ , and a robust hardware foundation with best-in-class security and performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper® Mist™ Wired Assurance, the EX4100 line of Switches can be effortlessly onboarded, configured, and managed from the cloud. This simplifies operations, improves visibility, and ensures a much better experience for connected devices.
Key features of the EX4100 include:
- Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
- Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
- Standards-based microsegmentation using group-based policies (GBPs)
- Switch-to-switch encryption using Media Access Control Security (MACsec) AES256
- IEEE 802.3bt Power over Ethernet Plus (PoE++)
- Flow-based telemetry to monitor traffic flows for anomaly detection, ability to measure packet delays and report drop reasons
- Precision Timing Protocol-Transparent Clock
- 10-member Virtual Chassis support
Offering a full suite of Layer 2 and Layer 3 capabilities, the EX4100 enables multiple deployments, including campus, branch, and data center top-of-rack deployments. As scale requirements increase, Juniper’s Virtual Chassis technology allows up to 10 EX4100 switches to be seamlessly interconnected and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.
The EX4100 family of Ethernet switches consists of the following models:
- The EX4100-48MP, which offers 16 x 100 MB/1GbE/2.5GbE and 32 x 10 MB/100MB/1GbE Power over Ethernet (PoE++) access ports, delivering up to 90 W per PoE port with an overall total 1620 W of PoE power budget (using two power supplies)
- The EX4100-24MP, which offers 8 x 100 MB/1GbE/2.5GbE/5GbE/10GbE and 16 x 10 MB/100 MB/1GbE PoE++ access ports, delivering up to 90 W per port with an overall total 1620 W of PoE power budget (using two power supplies)
- The EX4100-24T, which offers 24 x 1GbE non-PoE access ports
- The EX4100-24P, which offers 24 x 1GbE PoE+ access ports, delivering up to 30 W per port with an overall total 1440 W of PoE power budget (using two power supplies)
- The EX4100-48T, which offers 48 x 1GbE non PoE-access ports
- The EX4100-48P, which offers 48 x 1GbE PoE+ access ports, delivering up to 30 W per port with an overall total 1440 W of PoE power budget (using two power supplies)
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Network (RJ-45): Yes
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:
- 24 x Gigabit Ethernet Network
- 4 x 10 Gigabit Ethernet Uplink
- 4 x 25 Gigabit Ethernet Stack
Media & Performance
Media Type Supported:
- Optical Fiber
- Twisted Pair
Ethernet Technology:
- 10 Gigabit Ethernet
- Gigabit Ethernet
- 25 Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 10GBase-X
- 25GBase-X
I/O Expansions
Number of Total Expansion Slots: 8
Expansion Slot Type:
- SFP+
- SFP28
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Networking Standards:
- IEEE 802.1ae
- IEEE 802.11ax
- IEEE 802.1ab
- IEEE 802.1ak
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3ae
- IEEE 802.3by
- IEEE 802.3ax
- IEEE 802.3ah
- IEEE 802.1D
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.3ad
Management & Protocols
Manageable: Yes
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Number of Power Supplies Supported: 2
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:
- Rack-mountable
- Wall Mountable
Height: 1.7″
Width: 17.4″
Depth: 13.8″
Weight (Approximate): 9.72 lb
Miscellaneous
Package Contents:
- EX4100-24T Ethernet Switch
- 1 x JPSU-150-AC-AFO
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
TAA Compliant: Yes
Warranty
Limited Warranty: Lifetime
