Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: JL259A#B2E
Manufacturer Website Address: http://www.hpe.com
Brand Name: HPE
Product Series: 2930F

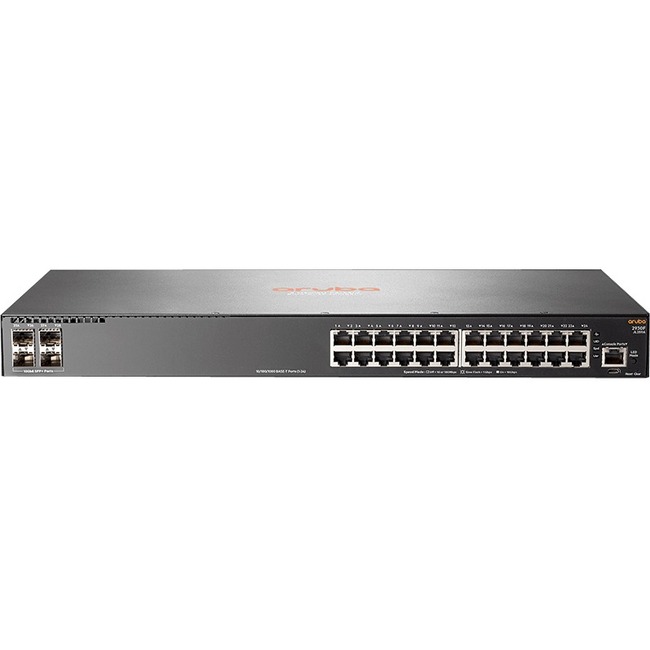

Product Name: 2930F 24G 4SFP Switch
Marketing Information: The Aruba 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These convenient Layer 3 network switches include built-in uplinks and PoE power and are simple to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloudbased Aruba Central.
A powerful Aruba ProVision ASIC delivers performance , robust feature support and value with programmability for the latest applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access OSPF routing, Dynamic Segmentation, robust QoS, RIP routing, and IPv6 with no software licensing required.
The Aruba 2930F Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Provisioning. The robust Layer 3 feature set includes a limited lifetime warranty.
ENHANCED CAPABILITIES | Unified Wired and Wireless Support
- Supports unified wired and wireless policies using Aruba ClearPass Policy Manager
- Switch auto-configuration automatically configures switch for different settings such as VLAN, CoS, PoE max. power, and PoE priority when an Aruba access point is detected
- User Role defines a set of switch-based policies in areas such as security, authentication, and QoS. A user role can be assigned to a group of users or devices, using switch-based local user role or download from ClearPass
- For improved network simplicity and security, Aruba Dynamic Segmentation automatically enforces user, device and application-aware policies on Aruba wired and wireless networks. Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end users alike
- Dynamic Segmentation provides a secure tunnel that transports network traffic on a per-port or per-user role basis to an Aruba Controller. In a per-user role Tunnel Node, users are authenticated by the ClearPass PolicyDynamic Segmentation provides a secure tunnel that transports network traffic on a per-port or per-user role basis to an Aruba Controller. In a per-user role Tunnel Node, users are authenticated by the ClearPass Policy Manager which directs traffic to be tunneled to an Aruba controller or switch locally
- Static IP visibility allows ClearPass to do accounting for clients with a static IP address
Software-defined networks
- Supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting
Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 24
Network (RJ-45): Yes
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details:
- 24 x Gigabit Ethernet Network
- 4 x Expansion Slot
Media & Performance
Media Type Supported:
- Optical Fiber
- Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
I/O Expansions
Total Number of Expansion Slots: 4.0
Expansion Slot Type: SFP
Number of SFP Slots: 4
Network & Communication
Layer Supported: 3
Networking Standards:
- IEEE 802.1p
- IEEE 802.1ab
- IEEE 802.1x
- IEEE 802.1ad
- IEEE 802.1s
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.3az
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.1Q
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Power Consumption: 29.30 W
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.4″
Depth: 7.9″
Weight (Approximate): 5.31 lb
Warranty
Limited Warranty: Lifetime
