Manufacturer: Finisar Corporation
Manufacturer Part Number: FTLC9558REPM
Manufacturer Website Address: http://www.finisar.com
Brand Name: Finisar

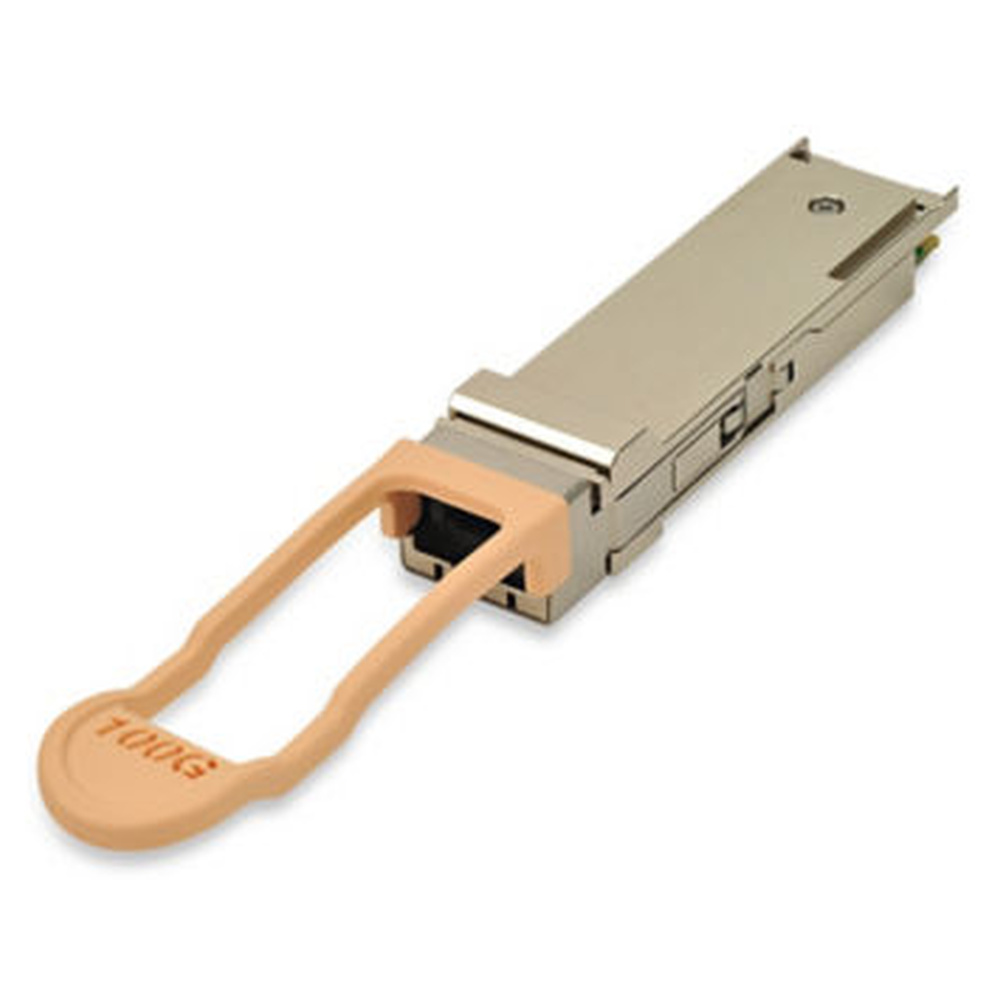

Product Name: 100m Parallel MMF 100G QSFP28 Optical Transceiver
Marketing Information:
Finisar’s FTLC9558REPM 100G QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links over multimode fiber. They are compliant with the QSFP28 MSA1 and IEEE 802.3bm 100GBASE-SR42 and CAUI-42 . Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA1 and Finisar Application Note AN-21413 . The transceiver is RoHS-6 compliant per Directive 2011/65/EU4 and Finisar Application Note AN-20385 .
Product Type: QSFP28
Packaged Quantity: 1
Technical Information
Application/Usage:
- Data Networking
- Optical Network
Interfaces/Ports
Total Number of Ports: 1
Connector Type: MPO-12
Interfaces/Ports Details: 1 x MPO 100GBase-SR4 Network
Media & Performance
Media Type Supported: Optical Fiber
Fiber Optic Cable Standard: 850 nm
Fiber Mode Supported: Multi-mode
Ethernet Technology: 100 Gigabit Ethernet
Network Technology: 100GBase-SR4
Maximum Distance Supported: 328.08 ft
Maximum Data Transfer Rate: 103.10 Gbit/s
Physical Characteristics
Product Color: Silver
Form Factor: Hot-pluggable
Height: 0.5″
Width: 0.7″
Depth: 4.9″
Miscellaneous
Energy Star: No
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
