Manufacturer: Extreme Networks, Inc
Manufacturer Part Number: X435-8P-4S
Manufacturer Website Address: http://www.extremenetworks.com
Brand Name: Extreme Networks
Product Line: ExtremeSwitching
Product Series: X430
Product Model: X435-8P-4S

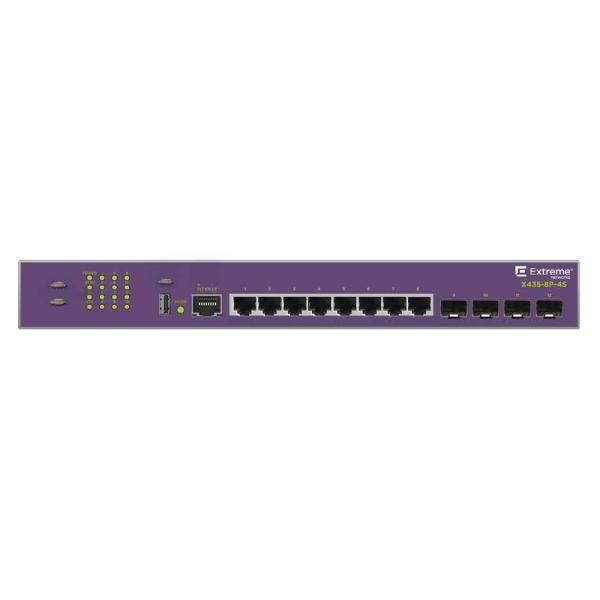

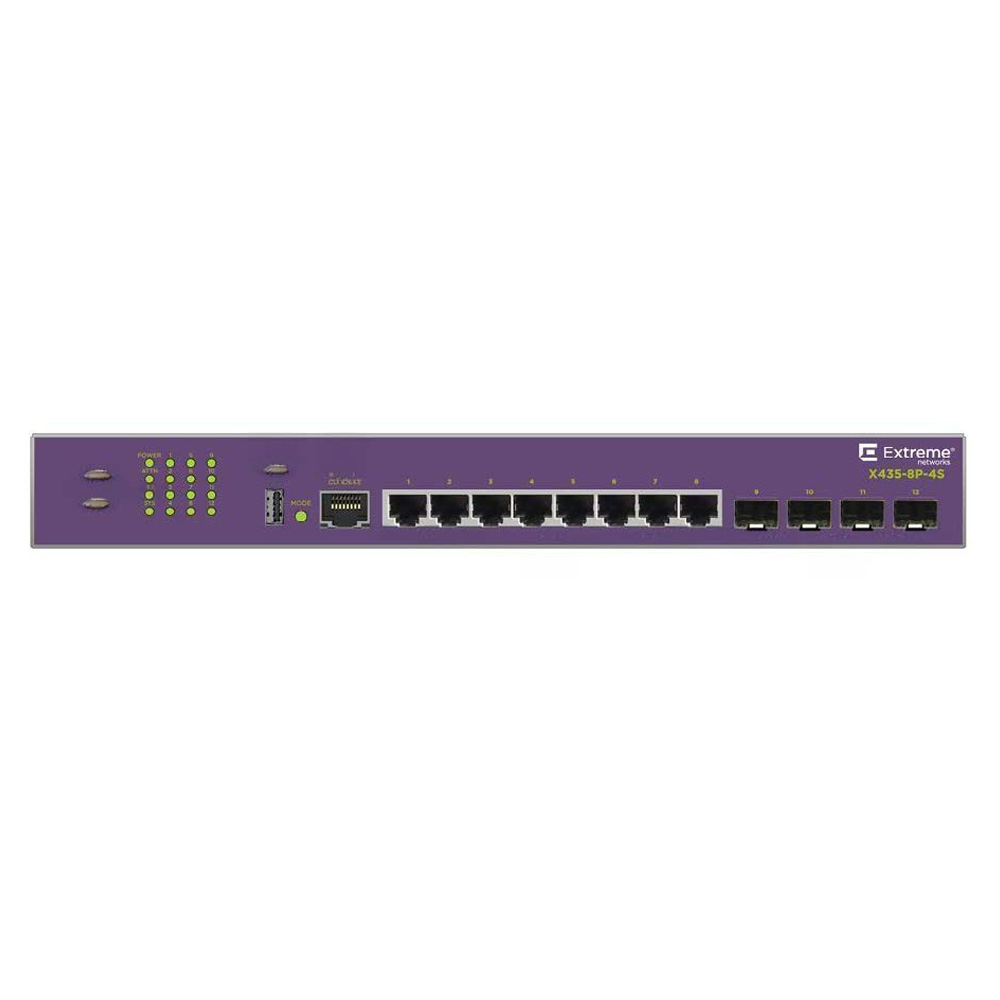

Product Name: ExtremeSwitching X435-8P-4S Ethernet Switch
Marketing Information: ExtremeSwitching™ X435 Series
Economical Edge Switches for Distributed Enterprises, Branches and Small Sites
The ExtremeSwitching X435 Series are economical, standalone Ethernet switches suited to the needs of cost-conscious enterprises looking for a value-based edge solution. Powered by Extreme Networks ExtremeXOS, the X435 Series offers comprehensive Layer 2 switching, static routing, advanced PoE, role-based policy and comprehensive security services. This makes it ideal for enterprises looking for cost-effective Ethernet connectivity in their branch/small sites or at their network edge.
The X435 Series consist of three 8-port compact Gigabit Ethernet switches and two 24-port Gigabit Ethernet models with up to 4 x 1 / 2.5 Gb SFP uplink ports. 8-port models come without a fan enabling quiet operation in noise sensitive environments. IEEE 802.3at PoE+ models are also available to power connected IP Phones, wireless APs, surveillance cameras or other devices.
The family also includes an 8-port model supporting PoE pass-through that can draw power from an upstream PoE switch while providing up to 100W of downstream PoE to connected Ethernet devices.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 8
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details:
- 8 x Gigabit Ethernet PoE+
- 4 x 2.5 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology:
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 2.5GBase-X
I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP (mini-GBIC)
Number of SFP Slots: 4
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 124 W
Power Source: Power Supply
Physical Characteristics
Form Factor:
- Wall Mountable
- Rack-mountable
Height: 1.7″
Width: 12.6″
Depth: 7.9″
Weight (Approximate): 4.85 lb
