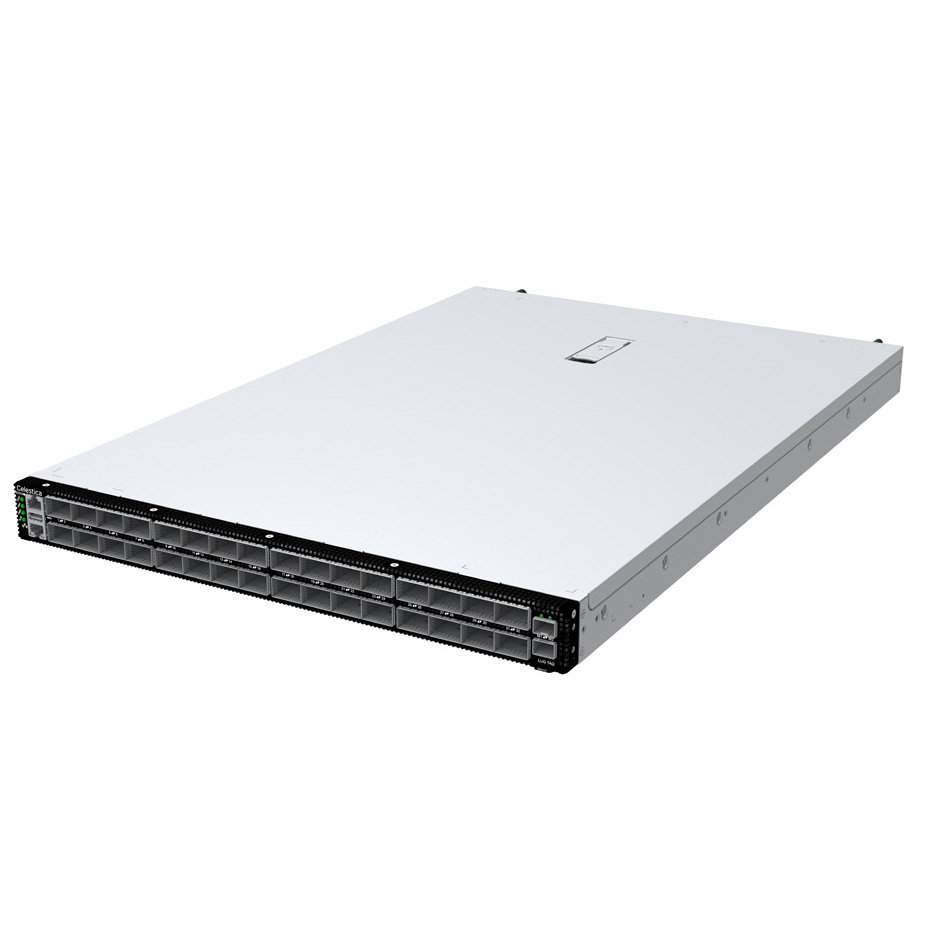

Celestica DS4101 25.6T 32x800G OSFP Ports Data Center Switch

MFR#

DS4101

-20%
Brand Name: Celestica
Product Type: SONiC Switch
Power Supply: Dual PSU
Supported NOS: SONiC
Software: Open Network Install Environment (ONIE)
Product Brief: DS4101

Celestica DS4101 R4030-F9001-A1 1U Data Center Switch, 25.6T, 32x800G OSFP Ports, SONiC NOS, Tomahawk 4 ASIC, Manufacturer Warranty

Request Pricing
?

B2B Pricing

Shop with confidence knowing that you have a dedicated B2B account team ready to answer any technical or sales questions.

  • Exclusive business pricing
  • Custom quotes
  • Responsive technical support
  • Pre-sales and after-sales support
Request a Quote
Add to Quote Cart

Ask a Product Specialist

Considering white box for increased flexibility and reduced costs? Our multi-vendor experts can help you select, deploy, and orchestrate white box networking solutions. We have years of experience deploying disaggregated network infrastructure powered by SONiC, Cumulus Linux, IP Infusion, Pica8, and leading traditional vendors. We help you navigate the ecosystem and ensure your network is secure, reliable, and optimized for cost and performance. Our expertise encompasses enterprise, cloud, data center, 5G/service provider infrastructure, and edge IT. Contact us for a free assessment, product quotes, infrastructure architecture expertise, or pre-sales inquiries.

Looking for something else or have a question about this product?
800.398.1262  |  Live Chat  |  Email
Get a Quote
Overview

The Celestica DS4101 is a compact 1RU open network switch with 32×800G OSFP ports, providing up to 25.6Tbps switching capacity. Built on Broadcom Tomahawk 4 silicon and powered by Intel Hewitt Lake CPUs, the DS4101 is designed to meet the demands of hyperscale, enterprise, and cloud data centers. With flexible breakout options, SONiC support, and precision timing features, it delivers high-density performance in a space-efficient form factor.

Use Cases

  • Next-gen enterprise and edge networks
  • 800G leaf or spine in modern data centers
  • Hyperscale and cloud-scale deployments
  • Network backbone and high-performance fabric

Ports & Optics

  • 32 × OSFP (800G) ports
  • Breakout support: 2x400G, 4x200G, 8x100G, or lower-speed variations
  • 2 × SFP+ (10G) ports
  • 1 × RJ45 Mgmt, 1 × Console, 1 × USB 3.0 Type-A
  • Supports OSFP optics up to 26W

Switch Hardware

  • Switching capacity: 25.6 Tbps
  • Broadcom Tomahawk 4-100 (StrataXGS)
  • Intel Hewitt Lake x86 CPU (4 or 8 cores)
  • Up to 32GB ECC DDR4 RAM
  • 128GB / 256GB SSD options

Platform Features

  • ONIE preloaded (SONiC NOS ready)
  • Supports SONiC, ONL, and Redfish-based tools
  • RunBMC with OpenBMC firmware
  • Precision timing: IEEE 1588v2 (1-step/2-step), SyncE
  • Edge bridging, DCB, VXLAN support, hardware tunneling

Cooling & Power

  • 1RU rackmount chassis
  • 1+1 redundant, hot-swappable 2000W PSUs
  • 6+1 redundant fan modules
  • Front-to-back airflow

Environmental

  • Operating Temp: 0°C to 40°C @950m
  • Humidity: 5% to 95% non-condensing
  • Compliance: RoHS, REACH, UL/CSA/EN 62368-1

Physical Dimensions

  • Height: 43.1 mm (1.7”)
  • Width: 438.5 mm (17.3”)
  • Depth: 657.5 mm (25.9”)

Ordering Information

  • R4030-F9001-A1: DS4101, 1U, 32x800GbE, COMe 4C/32GB-DDR/128GB-SSD (Front-to-Back airflow)
Specifications
Brand Name

Celestica
Product Type

SONiC Switch
Power Supply

Dual PSU
Supported NOS

SONiC
Software

Open Network Install Environment (ONIE)
Warranty

Manufacturer Warranty
Questions & Answers

Please login to post questions

Question:

Is SONiC stable enough to run on this platform in production?
[email protected]
13-Jul-2025

Answer:

Yes, as long as you're using a commercial SONiC distribution. These versions are validated, hardened, and have support available.

Question:

What’s the telemetry visibility like on this switch?
[email protected]
13-Jul-2025

Answer:

You can get access to Redfish APIs, as well as advanced telemetry and monitoring features via the NOS. With SONiC, support for streaming telemetry and gNMI is available depending on the build. The platform also supports packet-level timestamping and congestion diagnostics when enabled in the NOS.

Question:

Can this be used as a leaf switch or is it overkill?
[email protected]
13-Jul-2025

Answer:

It depends on your architecture. In AI or HPC clusters, it’s often used as a high-radix leaf, especially if you’re connecting to GPU nodes with 100G/200G links.

Question:

What’s the power draw like for this platform at full load?
[email protected]
13-Jul-2025

Answer:

Expect peak consumption to be under 1300W with high-power 800G optics. The DS4101 ships with 1+1 redundant 2000W PSUs and 6+1 fan redundancy for cooling. You’ll want proper airflow and headroom in your rack power budget, especially in high-density deployments.

Question:

Can this switch be used in a GPU cluster environment with RoCEv2?
[email protected]
13-Jul-2025

Answer:

Yes, the switch supports congestion management features needed for lossless fabrics, including PFC, ECN, and advanced QoS. With breakout support down to 100G and up to 32 OSFP ports, it integrates cleanly into large-scale GPU clusters using 800G or 400G NICs.
