DS4000
Overview

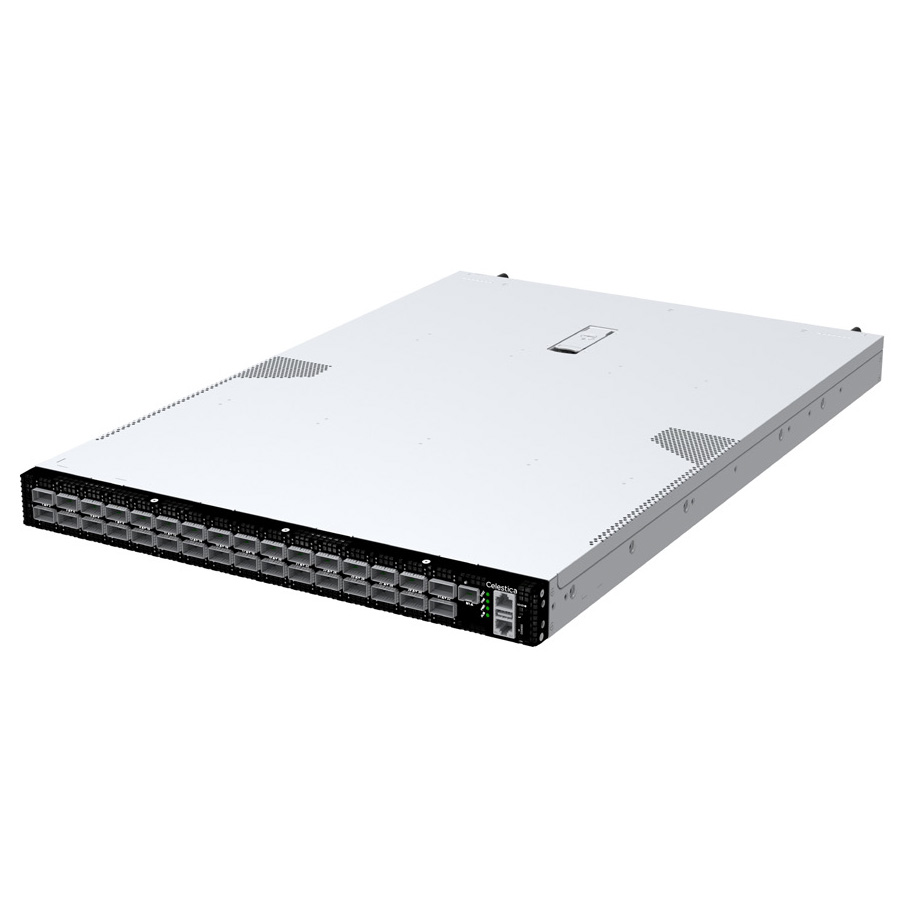

The Celestica DS4000 is a 1RU open network switch with 32×QSFP-DD 400GbE ports, delivering up to 12.8Tbps switching capacity. Designed for high-density leaf/spine fabrics and dynamic aggregation layers, it supports flexible port breakout (from 10G to 400G), precision timing, and SONiC-ready software compatibility. Built for performance, the DS4000 combines low latency, high reliability, and power-efficient design in a compact form factor for modern data centers.
Use Cases
- 400G leaf or spine switch in CLOS networks
- Enterprise aggregation and cloud fabric
- Big data, AI/ML, and scalable infrastructure
- SONiC and open NOS-based deployments
Ports & Optics
- 32 × QSFP-DD (400G) ports
- Breakout: up to 144 x 10/25/50G or 128 x 40/100G
- QSFP-DD optics up to 3m DAC support
- Optics power: up to 12W (B2F), 20W (F2B)
- 1 × RJ45 Mgmt, 1 × Console, 1 × USB Type-A
Switch Hardware
- Switching capacity: 12.8 Tbps
- 64MB shared buffer
- Intel Xeon-D x86 CPU (up to 8 cores)
- 16–32GB ECC DDR4 RAM
- Configurable M.2 SSD
- Latency: <700ns (cut-through mode)
Platform Features
- ONIE preloaded (SONiC NOS ready)
- Supports SONiC, ONL, and commercial NOS
- Timing: IEEE 1588v2 (1-step/2-step), SyncE, TC/BC
- BMC with IPMI 2.0, Serial-over-LAN, remote upgrade
- Layer 2–7 packet classification & telemetry support
Traffic Management
- 802.3ad LACP, Q-in-Q, PVLAN, TRILL, PBB
- Hardware IP routing: OSPF, BGP, IS-IS, VRF
- Multicast: IGMPv1/2/3, PIM-SM, DM, SSM
- DCBX, ETS, PFC, QCN (congestion control)
- QoS: 2-rate, 3-color, SP, WRR, WDRR
Cooling & Power
- 1RU rackmount chassis
- 1+1 redundant, hot-swappable PSUs
- Max draw: ~1100W (with optics)
- 6+1 redundant fan modules
- Available in front-to-back and back-to-front airflow
Environmental
- Operating Temp: 0°C to 45°C @900m
- Humidity: 5% to 90% non-condensing
- MTBF: >150,000 hours
- Certifications: CE, FCC, VCCI, UL, RoHS
Ordering Information
- R4023-F9102-A0: DS4000, 1U, 32x400GbE, COMe 4C/16GB/64GB SSD (Front-to-Back airflow)
- R4023-F9003-A0: DS4000, 1U, 32x400GbE, COMe 4C/16GB/64GB SSD (Back-to-Front airflow)
