DS3001
Overview

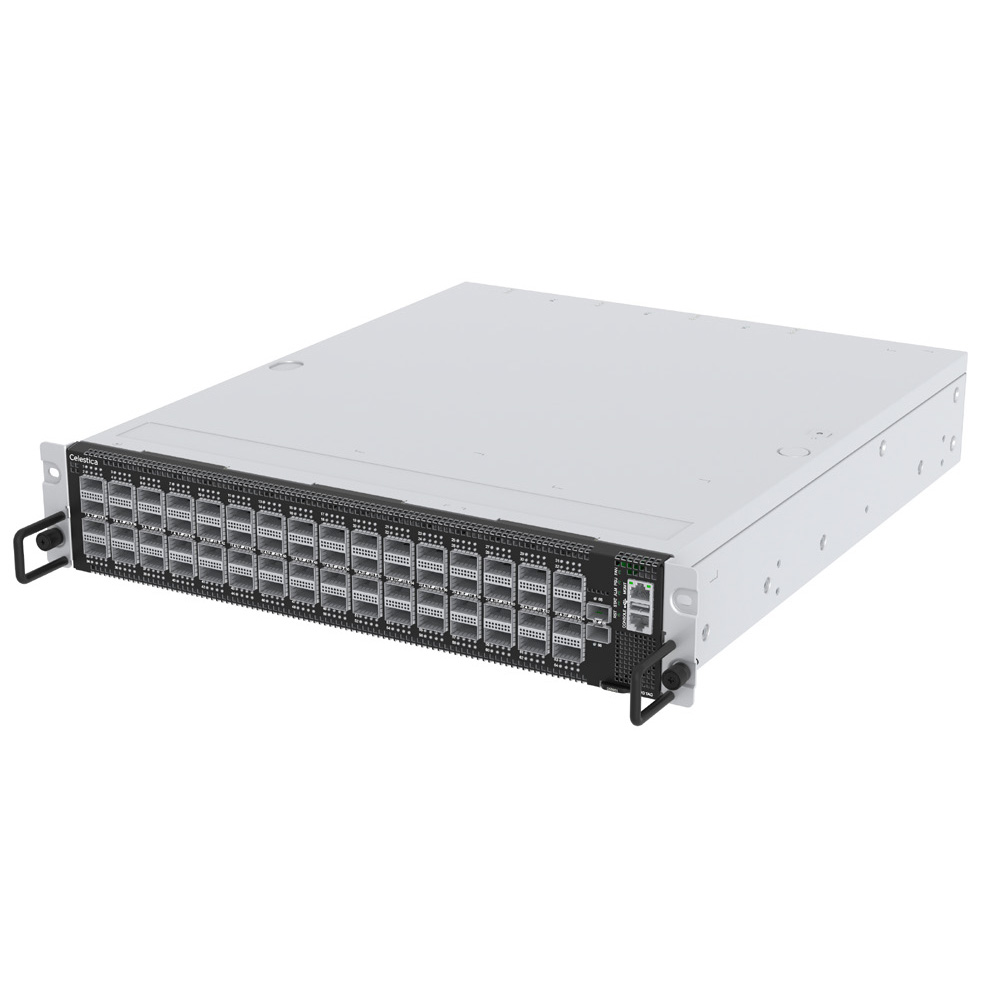

The Celestica DS3001 is a 2RU open network switch designed for high-radix leaf/spine fabrics and enterprise aggregation layers, offering 64×100G QSFP28 ports with flexible breakout, low-latency cut-through switching, and full L2–L3 capabilities in a power-efficient, PHY-less architecture.
Use Cases
- High-density 100Gb leaf or spine switch
- Enterprise core/aggregation networks
- Supports open and third-party NOS
- High-radix CLOS network topologies
Ports & Optics
- 64 × QSFP28 (100G) ports
- Breakout: 2x50G, 4x25G, or 4x10G
- Max port config: 168x 10/25G using breakout
- Supports DACs up to 3M; 5W per port
Switch Hardware
- Switching capacity: 6.4 Tbps
- Buffer: 70MB
- Intel Denverton/Hewitt Lake-DE CPU (4–8 cores)
- Up to 32GB DDR4 ECC RAM
- Up to 1TB M.2 SSD
Platform Features
- ONIE preloaded (SONiC NOS ready)
- BMC system management (IPMI 2.0)
- Serial over LAN (SoL)
- Remote BIOS/firmware upgrade support
- Layer 2–7 processing, FCoE, jumbo frames
Cooling & Power
- 2RU rackmount chassis
- 1+1 redundant, hot-swappable 1300W PSUs
- 3+1 hot-swappable fan modules
- Front-to-back and back-to-front airflow options
Timing & Sync
- IEEE 1588v2 PTP
- SyncE
- 1PPS timing support
Environmental
- Operating Temp: 0°C to 45°C @900m
- Humidity: 5% to 90% non-condensing
- Max Power Draw: ~1300W
Ordering Information
- R3250-F9102-A0: DS3001, 2U, 64x100GbE, COMe 4C/16GB/64GB SSD, Back-to-Front airflow
- R3250-F9101-A0: DS3001, 2U, 64x100GbE, COMe 4C/16GB/64GB SSD, Front-to-Back airflow
