Edge-Core AGR560 AS9947-36XKB-O-AC-F 24x100G QSFP28 Ports Aggregation Router AC Power

MFR# AS9947-36XKB-O-AC-F
Authorized Dealer
Check availability

Request Pricing
?

B2B Pricing

Shop with confidence knowing that you have a dedicated B2B account team ready to answer any technical or sales questions.

  • Exclusive business pricing
  • Custom quotes
  • Responsive technical support
  • Pre-sales and after-sales support
Request a Quote
Add to Quote Cart
Brand: Edge-Core
Product Type: Aggregation Router
Main Port Count: 24 Ports
Main Port Type: QSFP28
Main Port Speed: 100GbE
Product Brief: AS9947-36XKB-O-AC-F

Edge-Core AGR560 AS9947-36XKB-O-AC-F 24x100G QSFP28 Ports Aggregation Router AC Power, 2RU, 24x100GbE QSFP28 ports, 12x400GbE QSFP-DD ports, Broadcom Jericho2c+ BCM88851 ASIC, Intel Xeon D Ice Lake, 8 Cores, 3.1GHz Processor, Dual AC PSU, Front-to-back airflow, Supported NOS IP Infusion OcNOS, ONL

Ask a Product Specialist

Open networking requires the right combination of hardware, software, and support to succeed. Our in-house engineering and support team works closely with industry-leading partners to help you source and integrate the right components, validate designs, and deploy with confidence, backed by two decades of successful deployments for data centers, service providers, and enterprises.

Looking for something else or have a question about this product?
800.398.1262  |  Email
Get a Quote
Overview

The Edgecore AGR560 (AS9947-36XKB-O-AC-F) is a 2RU 400G aggregation router based on the Broadcom Jericho2c+ ASIC with 24 100G QSFP28 ports and 12 400G QSFP-DD ports for carrier and data center networks. This configuration includes dual AC power supplies and front-to-back airflow.

Use Cases

  • Metro aggregation and provider edge
  • Broadband Network Gateway and data center interconnect

Ports & Switching

  • 24x100GbE QSFP28 ports
  • 12x400GbE QSFP-DD ports
  • Four 10G SFP+ combo interfaces share QSFP28 ports 0 and 1
  • 400G coherent optics support

Hardware & Platform

  • Broadcom Jericho2c+ BCM88851 silicon
  • Intel Xeon D Ice Lake, 8 Cores, 3.1GHz
  • 64GB DDR4 ECC system memory
  • 480GB NVMe SSD
  • 2RU rack form factor
  • 17.32 x 25.56 x 3.43 in (W x D x H)
  • 45.19 lbs (with 2 PSUs and 4 fans)

Compatible Software (NOS)

  • Open Network Install Environment (ONIE)
  • Compatible with IP Infusion OcNOS
  • Compatible with ONL
  • Software licensing and the supported feature set depend on the selected NOS and configuration.

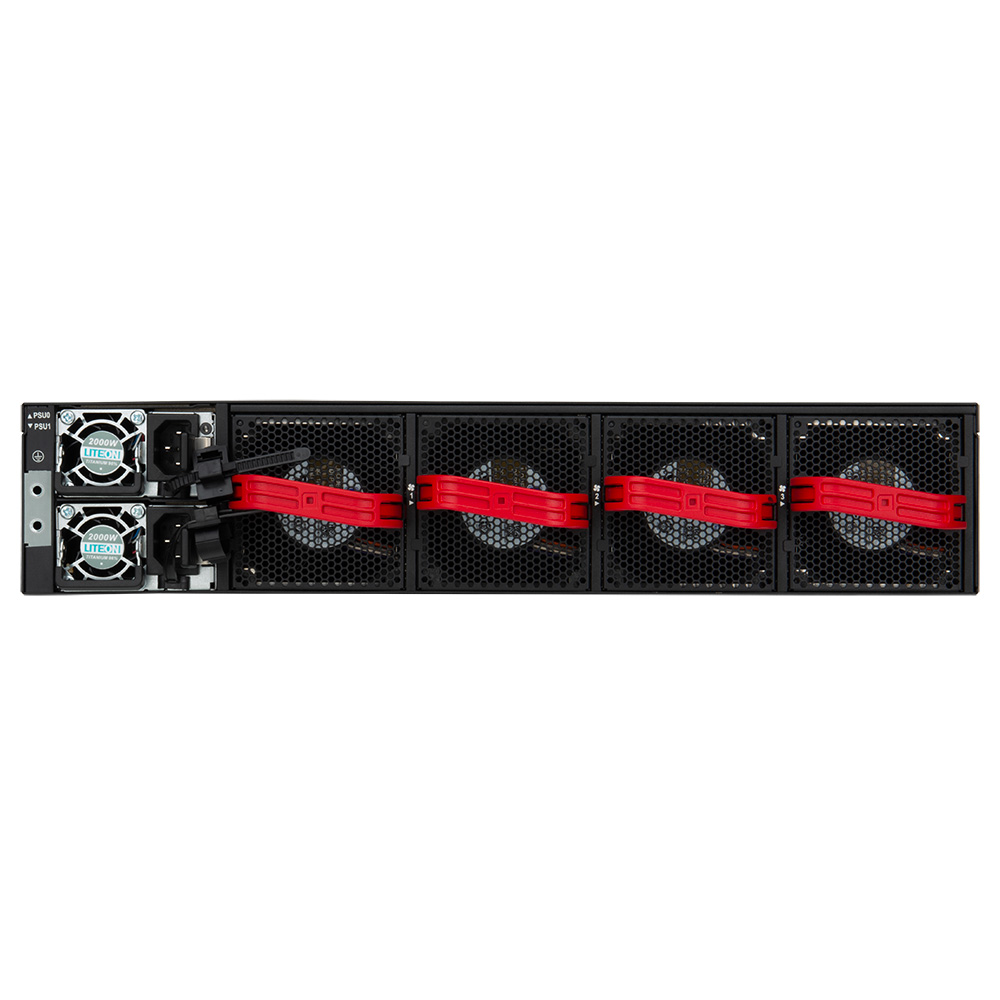

Cooling & Power

  • Dual AC PSU
  • 3+1 hot-swappable fans
  • Front-to-back airflow

Efficiency & Reliability

  • External TCAM for routing scale
  • SyncE, IEEE 1588v2 and BMC management

Ordering Information

  • AS9947-36XKB-O-AC-F with dual AC PSU and front-to-back airflow
  • Power cord is not included in this base AC code. Confirm the appropriate cord for the destination country.
  • Other configuration AS9947-36XKB-O-48V-F with dual 48VDC PSU and front-to-back airflow
Specifications
Product Type

Aggregation Router
Main Port Count

24 Ports
Main Port Type

QSFP28
Main Port Speed

100GbE
Uplink Port Count

12 Ports
Uplink Port Type

QSFP-DD
Uplink Port Speed

400GbE
ASIC

Broadcom Jericho2c+ BCM88851
Processor

Intel Xeon D Ice Lake, 8 Cores, 3.1GHz
Flash Memory

480GB NVMe SSD
Power Supply

Dual PSU
Supported NOS

IP Infusion OcNOS, ONL
Software

Open Network Install Environment (ONIE)
Dimensions

17.32 x 25.56 x 3.43 in
Weight

45.19 lbs
Frequently Asked Questions

Question:

Which network operating systems can I run on the AS9947-36XKB-O-AC-F?
Hardware Nation
12-Oct-2026

Answer:

IP Infusion OcNOS is a compatible NOS option for the AGR560 / AS9947-36XKB. ONIE is preloaded for installation; the required routing features depend on the selected OcNOS release and license package. Other NOS options may be available as the ecosystem evolves.

Question:

What ports does the AGR560 have?
Hardware Nation
12-Oct-2026

Answer:

24x100G QSFP28 ports and 12x400G QSFP-DD ports in a 2RU chassis. It also has four 10G SFP+ combo ports that share QSFP28 ports 0 and 1: either the SFP+ ports or those two QSFP28 ports can be used, not both at once, and the QSFP28 ports are enabled by default.

Question:

What switch chip does it use?
Hardware Nation
12-Oct-2026

Answer:

Broadcom Jericho2c+, BCM88851.

Question:

What is it designed for?
Hardware Nation
12-Oct-2026

Answer:

Provider-edge routing, metro aggregation and data center interconnect. Its hardware supports deep buffering and coherent optics; the actual routing services depend on the installed NOS and license.

Question:

What power and airflow does this version use?
Hardware Nation
12-Oct-2026

Answer:

AS9947-36XKB-O-AC-F has dual AC power supplies and front-to-back airflow.

Question:

Does it have redundant cooling?
Hardware Nation
12-Oct-2026

Answer:

Yes. Four hot-swappable fan modules provide 3+1 redundancy.

Question:

Does it support network timing?
Hardware Nation
12-Oct-2026

Answer:

Its hardware supports SyncE, IEEE 1588v2 PTP and timing interfaces including 1PPS. The deployed timing functions depend on the NOS release and configuration.

Question:

What CPU, memory and storage does it have?
Hardware Nation
12-Oct-2026

Answer:

An eight-core Intel Xeon CPU, 64 GB DDR4 memory and 480 GB SSD storage. It also has an AST2600 BMC for hardware management.
