Overview

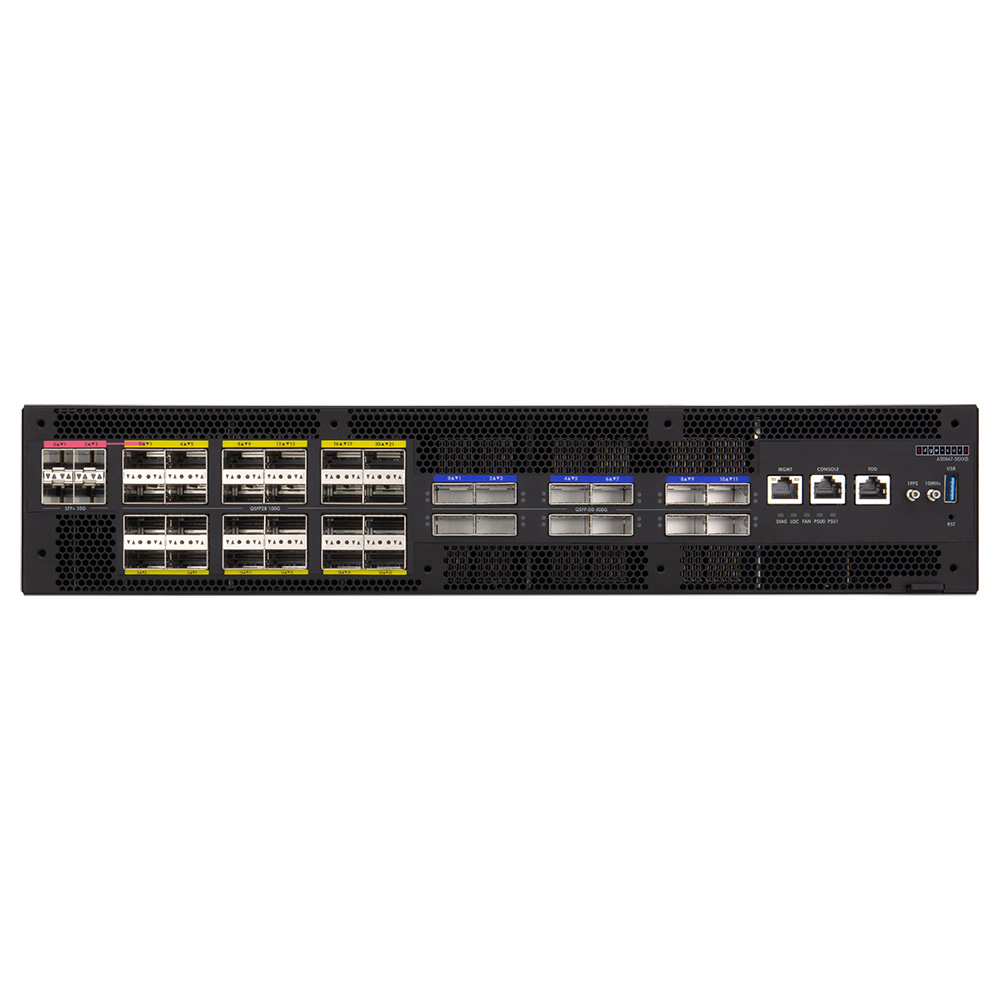

The Edge-Core AGR560 AS9947-36XKB aggregates 100G connections onto 400G interfaces with deep buffering and an external TCAM for carrier and data center routing. The AS9947-36XKB-O-48V-F configuration uses dual 48VDC PSU and front-to-back airflow.
Use Cases
- Metro aggregation and provider edge
- Broadband Network Gateway and data center interconnect
Ports & Switching
- 24x100GbE QSFP28 ports
- 12x400GbE QSFP-DD ports
- Four 10G SFP+ combo interfaces share QSFP28 ports 0 and 1
- 400G coherent optics support
Hardware & Platform
- Broadcom Jericho2c+ BCM88851 silicon
- Intel Xeon D Ice Lake, 8 Cores, 3.1GHz
- 64GB DDR4 ECC system memory
- 480GB NVMe SSD
- 2RU rack form factor
- 17.32 x 25.56 x 3.43 in (W x D x H)
- 45.19 lbs (with 2 PSUs and 4 fans)
Compatible Software (NOS)
- Open Network Install Environment (ONIE)
- Compatible with IP Infusion OcNOS
- Compatible with ONL
- Software licensing and the supported feature set depend on the selected NOS and configuration.
Cooling & Power
- Dual 48VDC PSU
- 3+1 hot-swappable fans
- Front-to-back airflow
Efficiency & Reliability
- External TCAM for routing scale
- SyncE, IEEE 1588v2 and BMC management
Ordering Information
- AS9947-36XKB-O-48V-F with dual 48VDC PSU and front-to-back airflow
- Other configuration AS9947-36XKB-O-AC-F with dual AC PSU and front-to-back airflow
