UfiSpace S9720-56ED 18x800G QSFP-DD Ports Core and Edge Router

MFR# S9720-56ED
Authorized Dealer
Check availability

Request Pricing
?

B2B Pricing

Shop with confidence knowing that you have a dedicated B2B account team ready to answer any technical or sales questions.

  • Exclusive business pricing
  • Custom quotes
  • Responsive technical support
  • Pre-sales and after-sales support
Request a Quote
Add to Quote Cart
Brand: UfiSpace
Product Type: Core Router
Main Port Count: 18 Ports, 36 Ports
Main Port Type: QSFP-DD
Main Port Speed: 800GbE, 400GbE
Product Brief: S9720-56ED

UfiSpace S9720-56ED 18x800G QSFP-DD Ports Core and Edge Router, 2RU, 18x800GbE or 36x400GbE QSFP-DD service ports, 20x800G QSFP-DD fabric ports, Broadcom Jericho3 BCM88860 ASIC, Intel Ice Lake D, 8 Cores, 2.1GHz Processor, Dual AC or DC PSU

Ask a Product Specialist

Open networking requires the right combination of hardware, software, and support to succeed. Our in-house engineering and support team works closely with industry-leading partners to validate designs, integrate hardware and software, and coordinate support across vendors, so you don’t have to piece it all together yourself. We bring over a decade of successful deployments for data centers, service providers, and enterprises.

Looking for something else or have a question about this product?
800.398.1262  |  Email
Get a Quote
Overview

The UfiSpace S9720-56ED is a 2RU core and edge router based on the Broadcom Jericho3 ASIC that can operate standalone or as a line card in a Distributed Disaggregated Chassis. It supports 18x800G or 36x400G service interfaces and 20 separate 800G fabric interfaces.

Use Cases

  • Standalone core and edge routing
  • Distributed Disaggregated Chassis line card

Ports & Switching

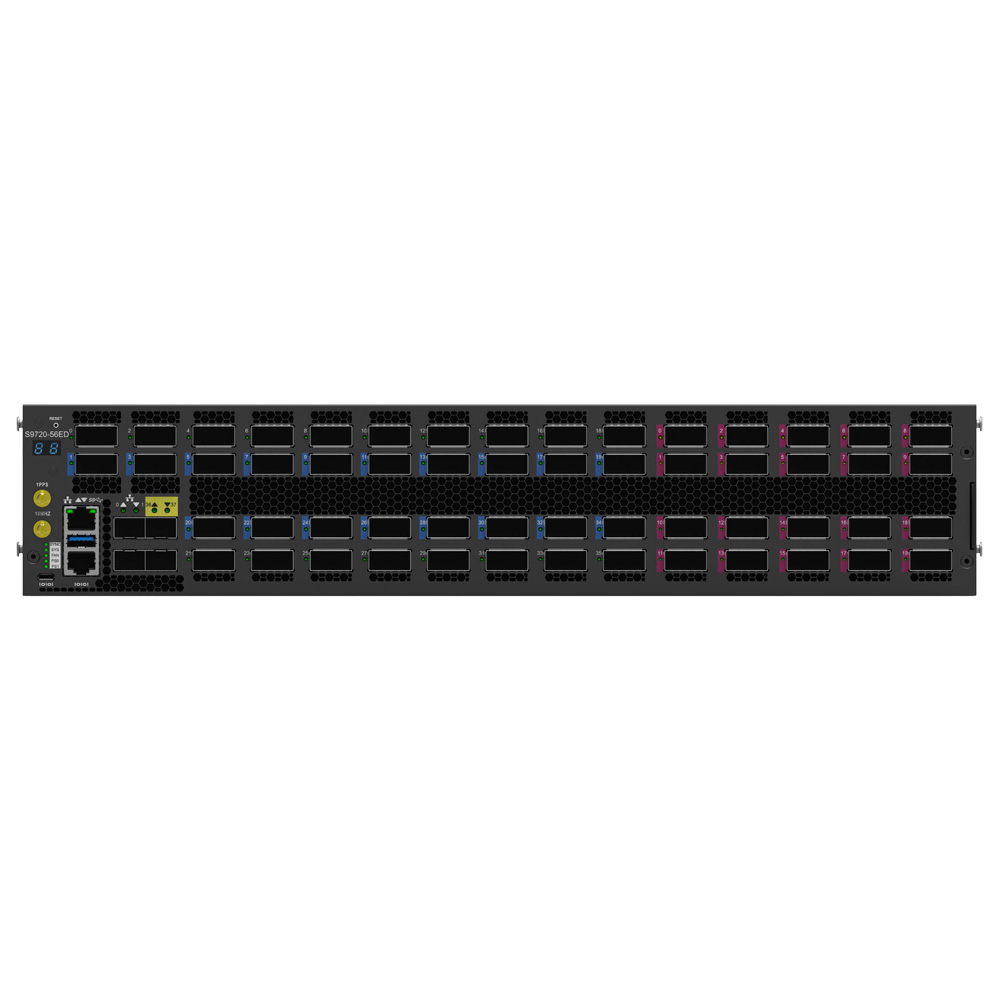

  • 18x800GbE or 36x400GbE QSFP-DD service ports
  • 20x800G QSFP-DD fabric ports
  • Service ports operate as 18x800G or 36x400G
  • 20x800G fabric interfaces for DDC cluster connectivity
  • SyncE, PTP, Class C timing, MACsec and ZR+ support

Hardware & Platform

  • Broadcom Jericho3 BCM88860 silicon
  • Intel Ice Lake D, 8 Cores, 2.1GHz
  • 64GB DDR4, expandable to 128GB system memory
  • 2x256GB SSD
  • 2RU rack form factor
  • 17.17 x 30.00 x 3.45 in (W x D x H)
  • 56.88 lbs (without FRU)

Compatible Software (NOS)

  • Deployed with DriveNets Network Cloud as part of a DDC cluster. Confirm the cluster configuration and software release.

Cooling & Power

  • Dual AC or DC PSU

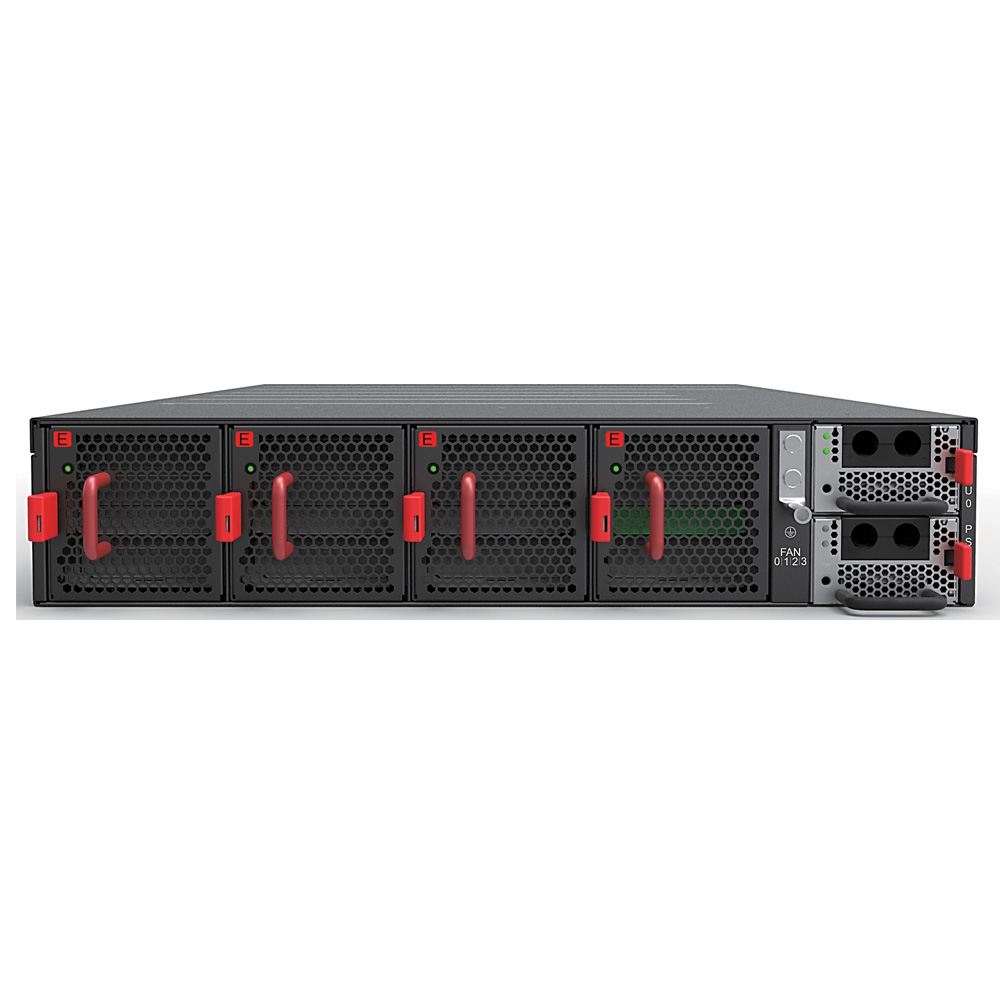

  • 3+1 hot-swappable fan units

Efficiency & Reliability

  • Standalone or DDC line card operation

Ordering Information

  • S9720-56ED platform. Confirm the quoted configuration.
Specifications
Product Type

Core Router
Main Port Count

18 Ports, 36 Ports
Main Port Type

QSFP-DD
Main Port Speed

800GbE, 400GbE
ASIC

Broadcom Jericho3 BCM88860
Processor

Intel Ice Lake D, 8 Cores, 2.1GHz
Flash Memory

2x256GB SSD
Power Supply

Dual PSU
Supported NOS

DriveNets
Dimensions

17.17 x 30.00 x 3.45 in
Weight

56.88 lbs
Frequently Asked Questions

Question:

How many service and fabric ports does the S9720-56ED support?
Hardware Nation
12-Oct-2026

Answer:

18x800G service interfaces, or 36x100G/200G/400G service interfaces, plus 20x800G QSFP-DD fabric ports. Service and fabric interfaces have different roles and should not be added together as ordinary Ethernet access ports.

Question:

What switch chip does it use?
Hardware Nation
12-Oct-2026

Answer:

Broadcom Jericho3, BCM88860, with a 16 GB deep packet buffer and 14.4 Tbps switching capacity.

Question:

Can it run on its own or does it need a cluster?
Hardware Nation
12-Oct-2026

Answer:

It can be deployed as a standalone router or as a line-card element in a distributed disaggregated chassis. Cluster operation connects it to a compatible fabric platform such as the S9725-64E.

Question:

What does the S9725-64E add to the system?
Hardware Nation
12-Oct-2026

Answer:

It supplies the cell-based switch fabric between router elements. The S9720-56ED handles the service-facing routing role, while the S9725-64E interconnects those elements inside the cluster.

Question:

Does it have redundant power and cooling?
Hardware Nation
12-Oct-2026

Answer:

Yes. Two hot-swappable power supplies provide 1+1 redundancy, and four hot-swappable fan modules provide 3+1 redundancy. AC and DC PSU options are available.

Question:

What CPU, memory and storage does it have?
Hardware Nation
12-Oct-2026

Answer:

An eight-core Intel Ice Lake-D CPU at 2.1 GHz, 64 GB DDR4 memory with support for up to 128 GB, and two 256 GB M.2 SSDs. It also has an AST2620 BMC.

Question:

Can it connect to coherent optical links?
Hardware Nation
12-Oct-2026

Answer:

Its service interfaces support ZR and ZR+ optical configurations. The module, line rate, NOS release and optical link design must be qualified together.
Warranty
All new products are covered by the manufacturer warranty. To claim warranty, you may contact the manufacturer directly or contact your account executive at Hardware Nation. We can help facilitate the warranty processes between the customer and manufacturer.
