Overview

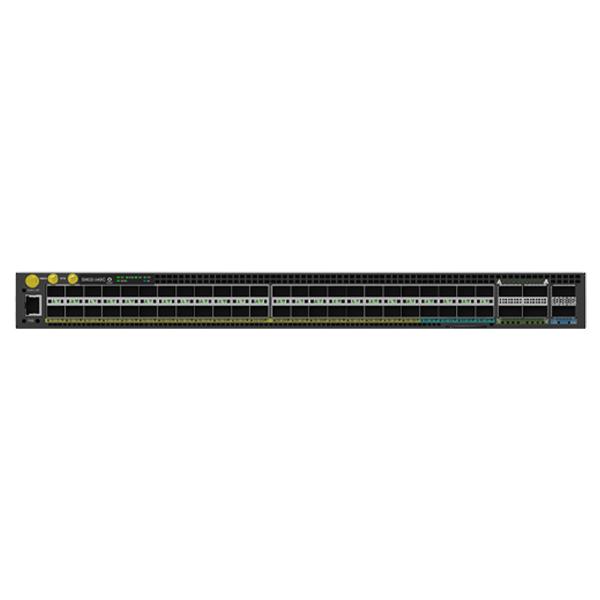

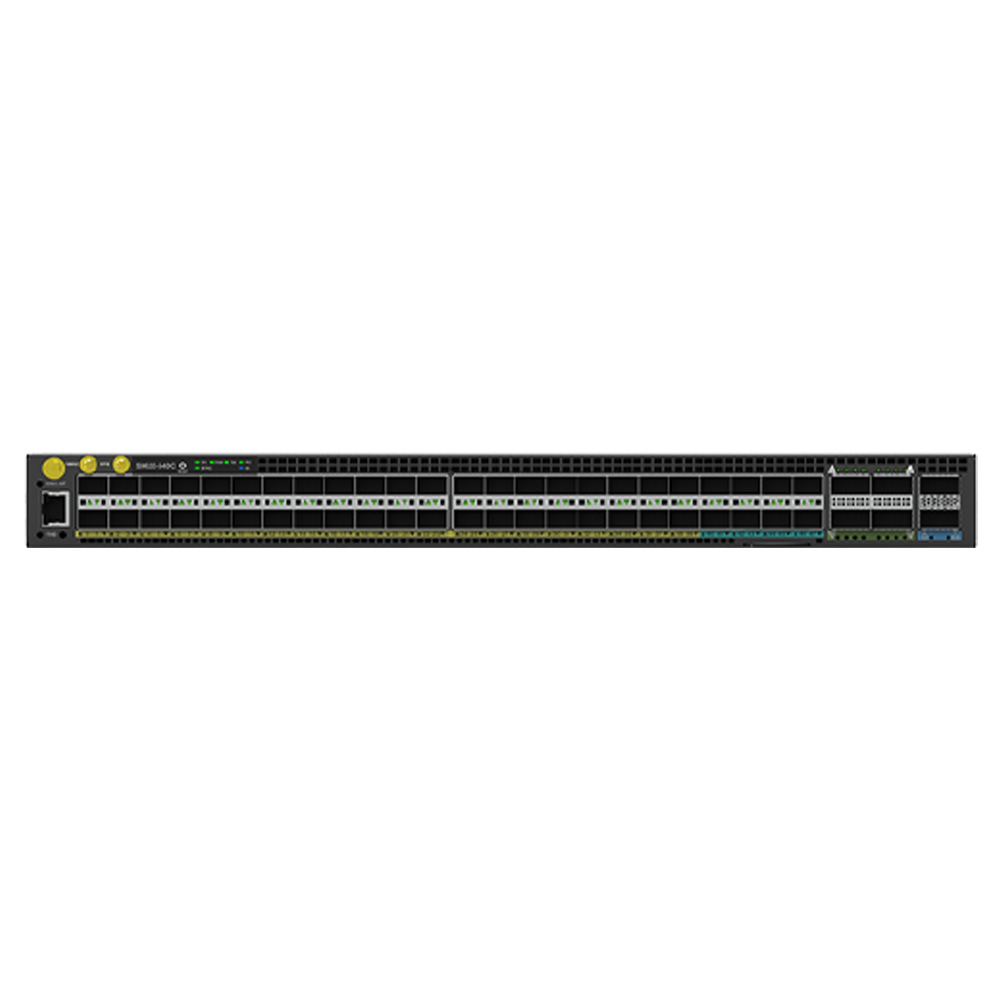

The UfiSpace S9620-54DC is a 1RU open aggregation router based on the Broadcom Qumran3u ASIC with 40 25G SFP28 and eight 50G SFP56 service ports, four 100G and two 400G QSFP-DD interfaces for service provider networks.
Use Cases
- Service provider transport
- Metro and mobile network routing
Ports & Switching
- 40x25GbE SFP28 and 8x50GbE SFP56 ports
- 4x100GbE and 2x400GbE QSFP-DD ports
- 40x25G SFP28 and 8x50G SFP56 interfaces
- Four 100G and two 400G QSFP-DD interfaces
- MACsec and 400G coherent optical support
Hardware & Platform
- Broadcom Qumran3u BCM88400 silicon
- Intel Ice Lake D, 4 Cores, 2.4GHz (Standard) or 8 Cores, 1.9GHz (Premium)
- 32GB DDR4 (Standard) or 64GB DDR4 (Premium) system memory
- 160GB SSD (Standard) or 2x160GB SSD (Premium)
- 1RU rack form factor
- 17.32 x 18.90 x 1.73 in (W x D x H)
- 23.72 lbs (without FRU)
Compatible Software (NOS)
- Compatible with ArcOS
- Software licensing and the supported feature set depend on the selected NOS and configuration.
- IP Infusion lists OcNOS support as planned for this model. Confirm release availability before selecting OcNOS.
Cooling & Power
- Dual AC or DC PSU
- 4+1 hot-swappable fan units
Efficiency & Reliability
- SyncE and IEEE 1588v2 timing
- Class C synchronization
- BMC for equipment health monitoring
- Segment routing capabilities depend on the selected NOS
- 4GB deep packet buffer
Ordering Information
- S9620-54DC platform. Confirm the quoted configuration.
