Overview

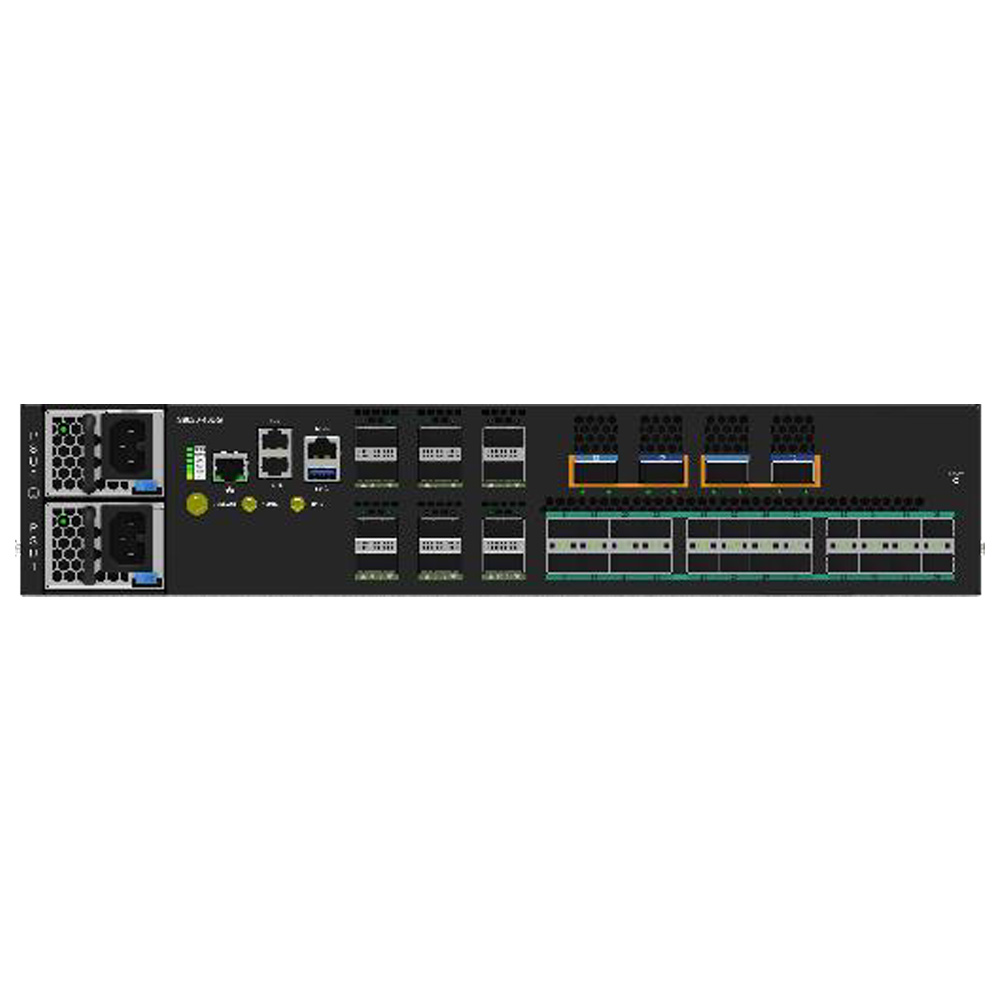

The UfiSpace S9620-40DG is a 2RU open aggregation router based on the Broadcom Qumran3a ASIC with 24 50G SFP56 and 12 100G QSFP28 service ports and QSFP-DD uplinks that operate as four 400G or two 800G interfaces for service provider networks.
Use Cases
- Service provider transport
- Metro and mobile network routing
Ports & Switching
- 24x50GbE SFP56 and 12x100GbE QSFP28 ports
- 4x400GbE or 2x800GbE QSFP-DD uplinks
- 24x50G SFP56 and 12x100G QSFP28 service interfaces
- QSFP-DD uplinks operate as four 400G or two 800G interfaces
- MACsec and 400G/800G coherent optical support
Hardware & Platform
- Broadcom Qumran3a BCM88490 silicon
- Intel Ice Lake D, 8 Cores, 1.9GHz
- 32GB DDR4 (Standard) or 64GB DDR4 (Premium) system memory
- 160GB SSD
- 2RU rack form factor
- 17.32 x 9.84 x 3.50 in (W x D x H)
- 18.74 lbs (without FRU)
Compatible Software (NOS)
- Compatible with ArcOS
- Software licensing and the supported feature set depend on the selected NOS and configuration.
- IP Infusion lists OcNOS support as planned for this model. Confirm release availability before selecting OcNOS.
Cooling & Power
- Dual AC or DC PSU

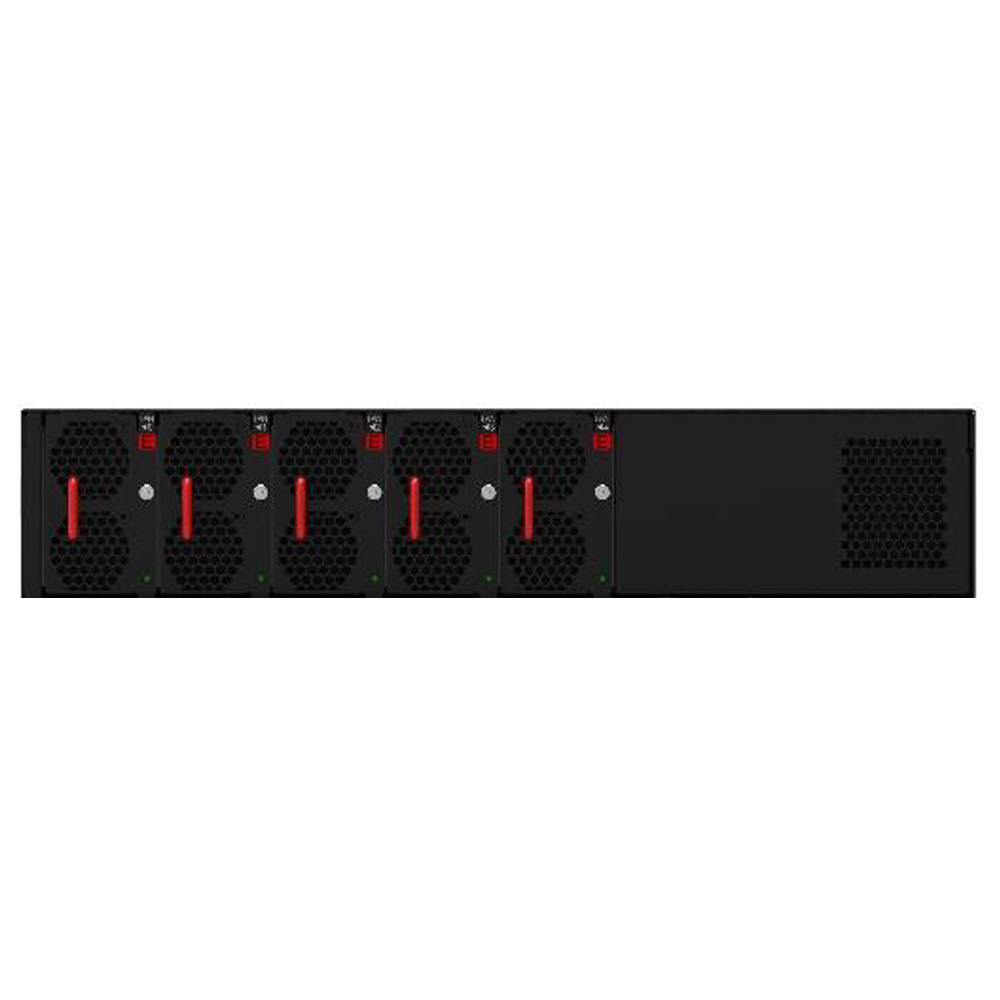

- 4+1 hot-swappable fan units
Efficiency & Reliability
- SyncE and IEEE 1588v2 timing
- Class C synchronization
- BMC for equipment health monitoring
- Segment routing capabilities depend on the selected NOS
- 16GB deep packet buffer
Ordering Information
- S9620-40DG platform. Confirm the quoted configuration.
