UfiSpace S9620-32E 32x800G QSFP-DD Ports Aggregation Router

MFR# S9620-32E
Authorized Dealer
Check availability

Request Pricing
?

B2B Pricing

Shop with confidence knowing that you have a dedicated B2B account team ready to answer any technical or sales questions.

  • Exclusive business pricing
  • Custom quotes
  • Responsive technical support
  • Pre-sales and after-sales support
Request a Quote
Add to Quote Cart
Brand: UfiSpace
Product Type: Aggregation Router
Main Port Count: 32 Ports
Main Port Type: QSFP-DD
Main Port Speed: 800GbE
Product Brief: S9620-32E

UfiSpace S9620-32E 32x800G QSFP-DD Ports Aggregation Router, 2RU, 32x800GbE QSFP-DD ports, Broadcom Qumran3D BCM88870 ASIC, Intel Ice Lake D, 8 Cores, 1.9GHz Processor, Dual AC or DC PSU, Supported NOS ArcOS

Ask a Product Specialist

Open networking requires the right combination of hardware, software, and support to succeed. Our in-house engineering and support team works closely with industry-leading partners to help you source and integrate the right components, validate designs, and deploy with confidence, backed by two decades of successful deployments for data centers, service providers, and enterprises.

Looking for something else or have a question about this product?
800.398.1262  |  Email
Get a Quote
Overview

The UfiSpace S9620-32E is a 2RU 800G open aggregation router based on the Broadcom Qumran3D ASIC with 32 QSFP-DD service interfaces for service provider networks.

Use Cases

  • Service provider transport
  • Metro and mobile network routing

Ports & Switching

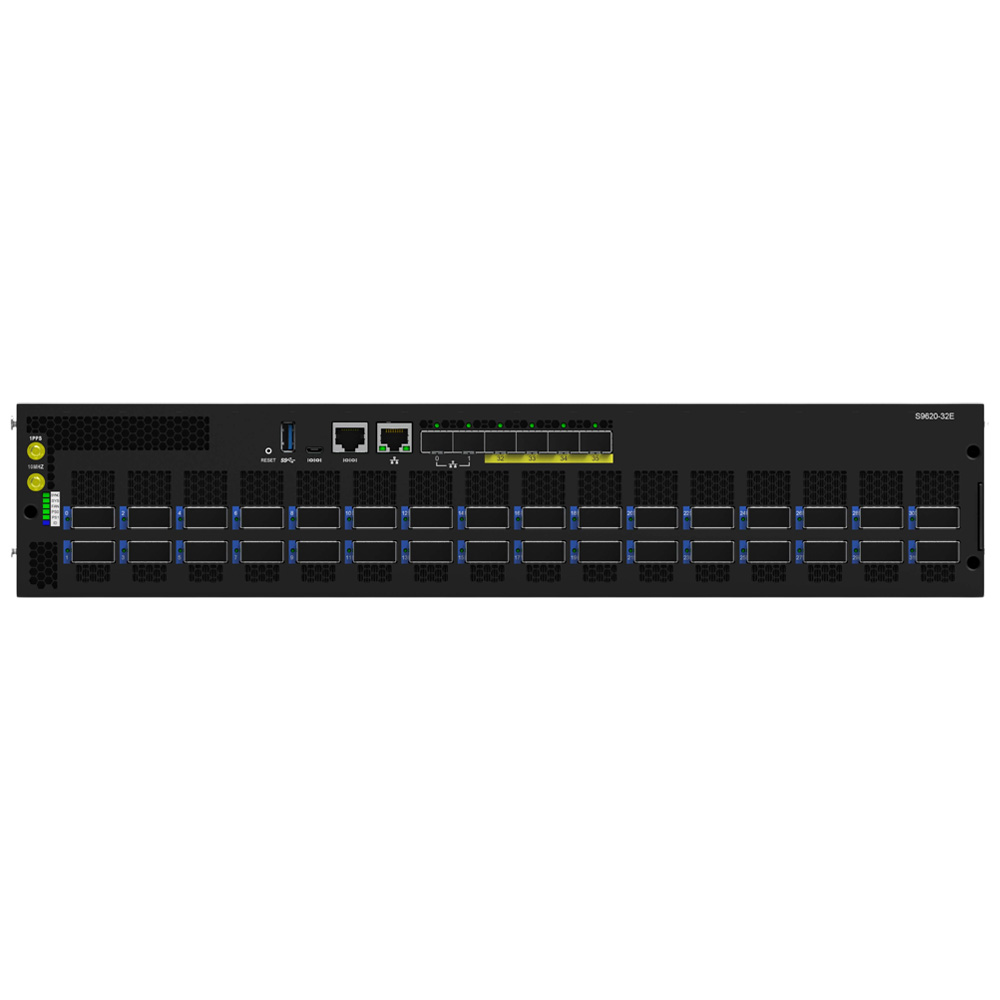

  • 32x800GbE QSFP-DD ports
  • 400G and 800G ZR/ZR+ support
  • MACsec on all ports
  • Four additional 1G/10G/25G SFP28 interfaces

Hardware & Platform

  • Broadcom Qumran3D BCM88870 silicon
  • Intel Ice Lake D, 8 Cores, 1.9GHz
  • 64GB DDR4 system memory
  • 2x256GB SSD
  • 2RU rack form factor
  • 17.17 x 22.83 x 3.45 in (W x D x H)

Compatible Software (NOS)

  • Compatible with ArcOS
  • Software licensing and the supported feature set depend on the selected NOS and configuration.
  • IP Infusion lists OcNOS support as planned for this model. Confirm release availability before selecting OcNOS.

Cooling & Power

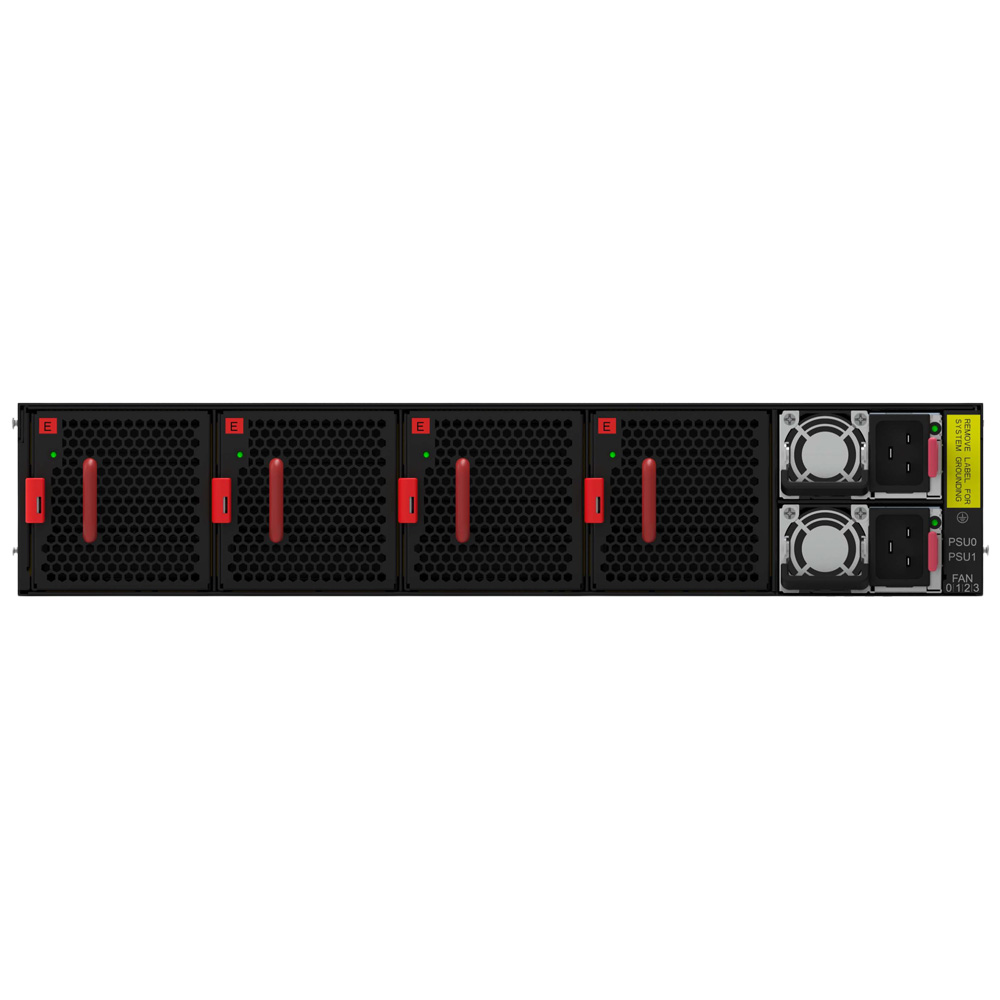

  • Dual AC or DC PSU
  • 3+1 hot-swappable fan units

Efficiency & Reliability

  • SyncE and IEEE 1588v2 timing
  • Class C synchronization
  • BMC for equipment health monitoring
  • Segment routing capabilities depend on the selected NOS
  • 32GB deep packet buffer

Ordering Information

  • S9620-32E platform. Confirm the quoted configuration.
Specifications
Product Type

Aggregation Router
Main Port Count

32 Ports
Main Port Type

QSFP-DD
Main Port Speed

800GbE
ASIC

Broadcom Qumran3D BCM88870
Processor

Intel Ice Lake D, 8 Cores, 1.9GHz
Flash Memory

2x256GB SSD
Power Supply

Dual PSU
Supported NOS

ArcOS
Dimensions

17.17 x 22.83 x 3.45 in
Frequently Asked Questions

Question:

What ports does the S9620-32E have?
Hardware Nation
12-Oct-2026

Answer:

32x800G service ports in a 2RU chassis.

Question:

What switch chip does it use?
Hardware Nation
12-Oct-2026

Answer:

Broadcom Qumran3D, BCM88870, with a 32 GB deep packet buffer.

Question:

What is it designed for?
Hardware Nation
12-Oct-2026

Answer:

High-capacity IP transport for carrier backbone and metro aggregation networks. It brings 800G connectivity into a fixed 2RU platform.

Question:

Can it use coherent optics?
Hardware Nation
12-Oct-2026

Answer:

The hardware supports 400G and 800G ZR and ZR+ optics. The chosen module, port mode, NOS release and optical path must support the intended connection.

Question:

Does it support encrypted links?
Hardware Nation
12-Oct-2026

Answer:

Its hardware supports MACsec on all ports. The NOS release and configuration determine the enabled encryption features.

Question:

Does it have redundant power and cooling?
Hardware Nation
12-Oct-2026

Answer:

Yes. Two hot-swappable power supplies provide 1+1 redundancy, and four hot-swappable fans provide 3+1 redundancy. AC and DC power options are available.

Question:

Can it act as the fabric for a disaggregated chassis?
Hardware Nation
12-Oct-2026

Answer:

It is a standalone Qumran3D routing platform. UfiSpace’s S9725-64E uses Ramon3 for the cell-based fabric role in a distributed disaggregated chassis.
Warranty
All new products are covered by the manufacturer warranty. To claim warranty, you may contact the manufacturer directly or contact your account executive at Hardware Nation. We can help facilitate the warranty processes between the customer and manufacturer.
