UfiSpace S9611-36D 36x400G QSFP-DD Ports Aggregation Router

MFR# S9611-36D
Authorized Dealer
Check availability

Request Pricing
?

B2B Pricing

Shop with confidence knowing that you have a dedicated B2B account team ready to answer any technical or sales questions.

  • Exclusive business pricing
  • Custom quotes
  • Responsive technical support
  • Pre-sales and after-sales support
Request a Quote
Add to Quote Cart
Brand: UfiSpace
Product Type: Aggregation Router
Main Port Count: 36 Ports
Main Port Type: QSFP-DD
Main Port Speed: 400GbE
Product Brief: S9611-36D

UfiSpace S9611-36D 36x400G QSFP-DD Ports Aggregation Router, 2RU, 36x400GbE QSFP-DD ports, Broadcom Jericho2c+ BCM88850 ASIC, Intel Ice Lake D, 8 Cores, 2.1GHz Processor, Dual AC or DC PSU

Ask a Product Specialist

Open networking requires the right combination of hardware, software, and support to succeed. Our in-house engineering and support team works closely with industry-leading partners to help you source and integrate the right components, validate designs, and deploy with confidence, backed by two decades of successful deployments for data centers, service providers, and enterprises.

Looking for something else or have a question about this product?
800.398.1262  |  Email
Get a Quote
Overview

The UfiSpace S9611-36D is a 2RU 400G open core and aggregation router based on the Broadcom Jericho2c+ ASIC with 36 QSFP-DD service interfaces for carrier networks.

Use Cases

  • Service provider transport
  • Metro and mobile network routing

Ports & Switching

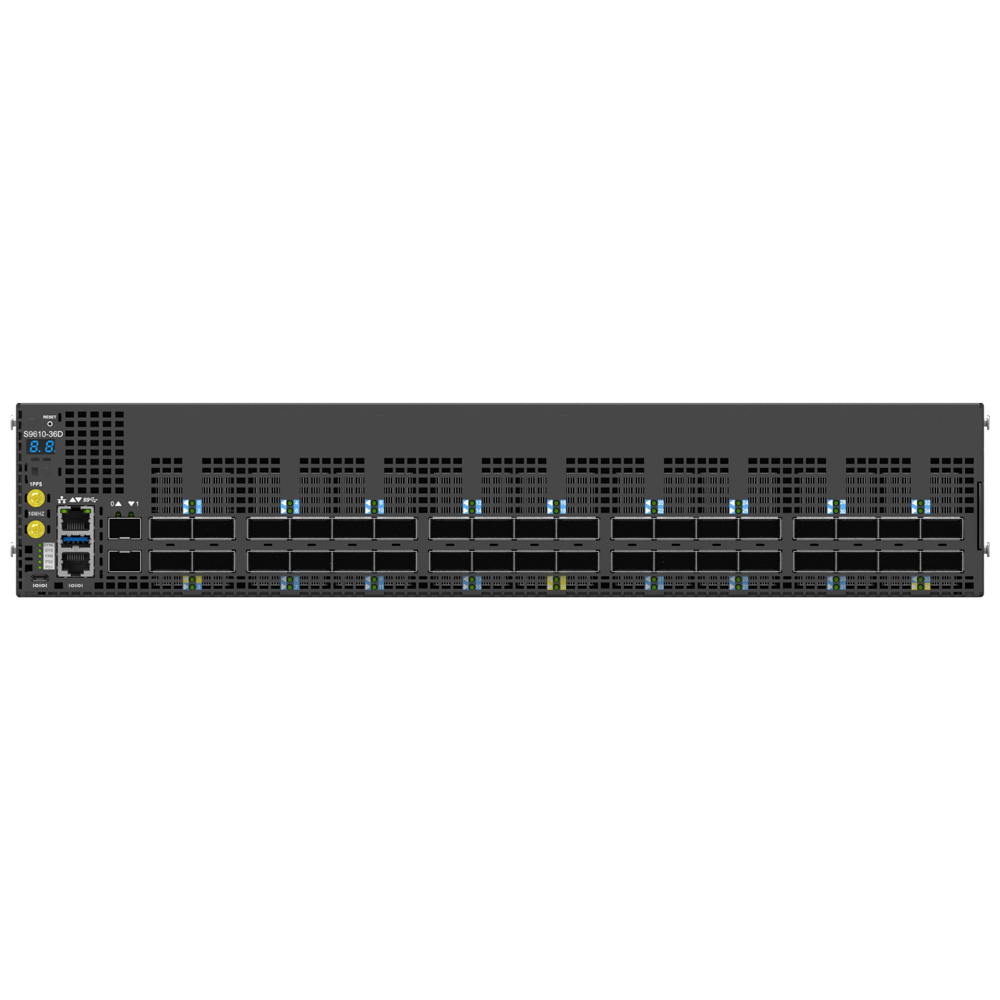

  • 36x400GbE QSFP-DD ports
  • 400G OpenZR+ support

Hardware & Platform

  • Broadcom Jericho2c+ BCM88850 silicon
  • Intel Ice Lake D, 8 Cores, 2.1GHz
  • 64GB DDR4 system memory
  • 2x256GB SSD
  • 2RU rack form factor
  • 17.17 x 30.00 x 3.45 in (W x D x H)
  • 53.18 lbs (without FRU)

Cooling & Power

  • Dual AC or DC PSU

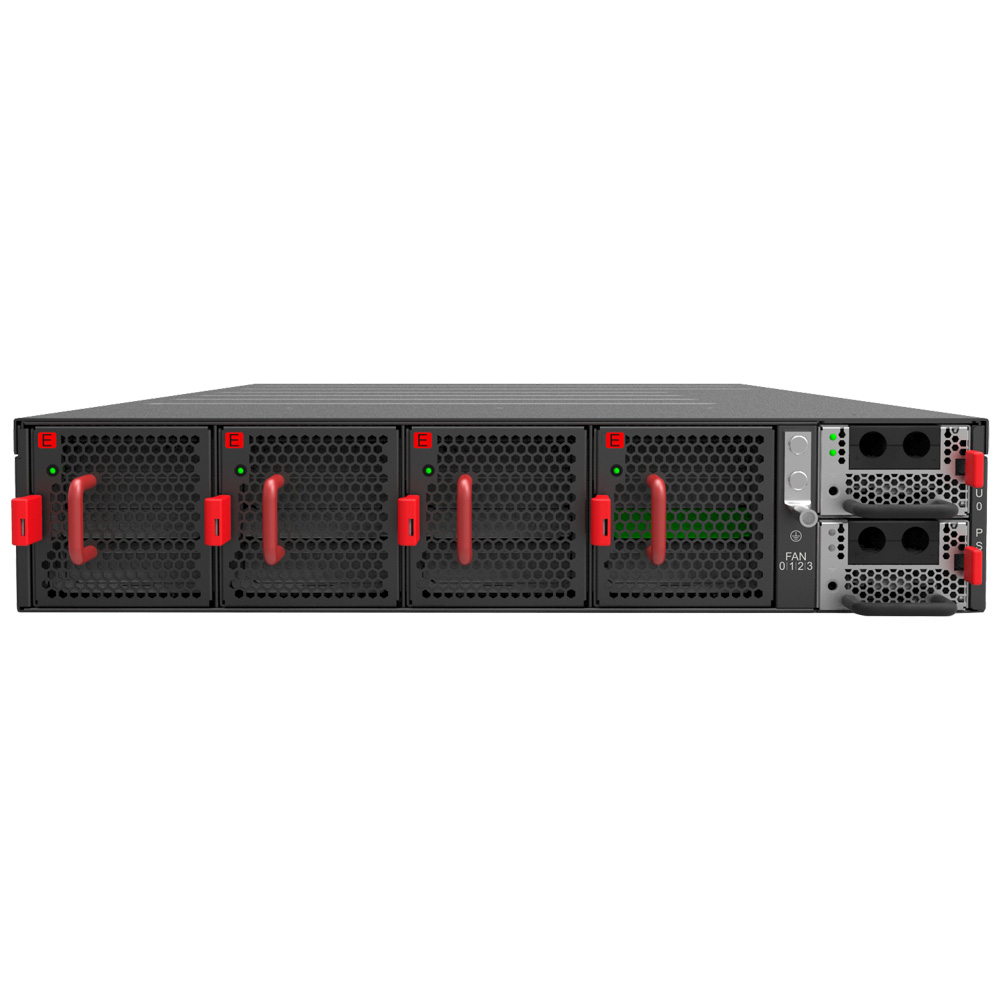

  • 3+1 hot-swappable fan units

Efficiency & Reliability

  • SyncE and IEEE 1588v2 timing
  • Class C synchronization
  • BMC for equipment health monitoring
  • Segment routing capabilities depend on the selected NOS
  • 16GB deep packet buffer
  • External TCAM

Ordering Information

  • S9611-36D platform. Confirm the quoted configuration.
Specifications
Product Type

Aggregation Router
Main Port Count

36 Ports
Main Port Type

QSFP-DD
Main Port Speed

400GbE
ASIC

Broadcom Jericho2c+ BCM88850
Processor

Intel Ice Lake D, 8 Cores, 2.1GHz
Flash Memory

2x256GB SSD
Power Supply

Dual PSU
Dimensions

17.17 x 30.00 x 3.45 in
Weight

53.18 lbs
Frequently Asked Questions

Question:

What ports does the S9611-36D have?
Hardware Nation
12-Oct-2026

Answer:

36x400G ports in a 2RU chassis.

Question:

What switch chip does it use?
Hardware Nation
12-Oct-2026

Answer:

Broadcom Jericho2c+, BCM88850, with an external OP2 TCAM and a 16 GB deep packet buffer.

Question:

What is it designed for?
Hardware Nation
12-Oct-2026

Answer:

Provider-edge routing, central-office data centers and metro or regional aggregation, with a suitable routing NOS.

Question:

Can it use coherent optical links?
Hardware Nation
12-Oct-2026

Answer:

Its hardware supports 400G OpenZR+ for metro and regional connections. Reach depends on the selected module and optical link design.

Question:

Does it support network timing?
Hardware Nation
12-Oct-2026

Answer:

Its hardware supports SyncE and IEEE 1588v2 PTP with Class C timing. The supported timing profile depends on the software release and configuration.

Question:

Does it have redundant power and cooling?
Hardware Nation
12-Oct-2026

Answer:

Yes. Two hot-swappable power supplies provide 1+1 redundancy, and four hot-swappable fan modules provide 3+1 redundancy. AC and DC options are available.

Question:

What CPU, memory and storage does it have?
Hardware Nation
12-Oct-2026

Answer:

An eight-core Intel Ice Lake-D CPU at 2.1 GHz, 64 GB DDR4 memory and two 256 GB SSDs.
