UfiSpace S9610-48DX 40x100G QSFP28 Ports Aggregation Router

MFR# S9610-48DX
Authorized Dealer
Check availability

Request Pricing
?

B2B Pricing

Shop with confidence knowing that you have a dedicated B2B account team ready to answer any technical or sales questions.

  • Exclusive business pricing
  • Custom quotes
  • Responsive technical support
  • Pre-sales and after-sales support
Request a Quote
Add to Quote Cart
Brand: UfiSpace
Product Type: Aggregation Router
Main Port Count: 40 Ports
Main Port Type: QSFP28
Main Port Speed: 100GbE
Product Brief: S9610-48DX

UfiSpace S9610-48DX 40x100G QSFP28 Ports Aggregation Router, 2RU, 40x100GbE QSFP28 ports, 8x400GbE QSFP-DD ports, Broadcom Qumran2c+ BCM88840 ASIC, Intel Ice Lake D, 8 Cores, 2.1GHz (Standard) or 12 Cores, 1.8GHz (Premium) Processor, Dual AC or DC PSU

Ask a Product Specialist

Open networking requires the right combination of hardware, software, and support to succeed. Our in-house engineering and support team works closely with industry-leading partners to help you source and integrate the right components, validate designs, and deploy with confidence, backed by two decades of successful deployments for data centers, service providers, and enterprises.

Looking for something else or have a question about this product?
800.398.1262  |  Email
Get a Quote
Overview

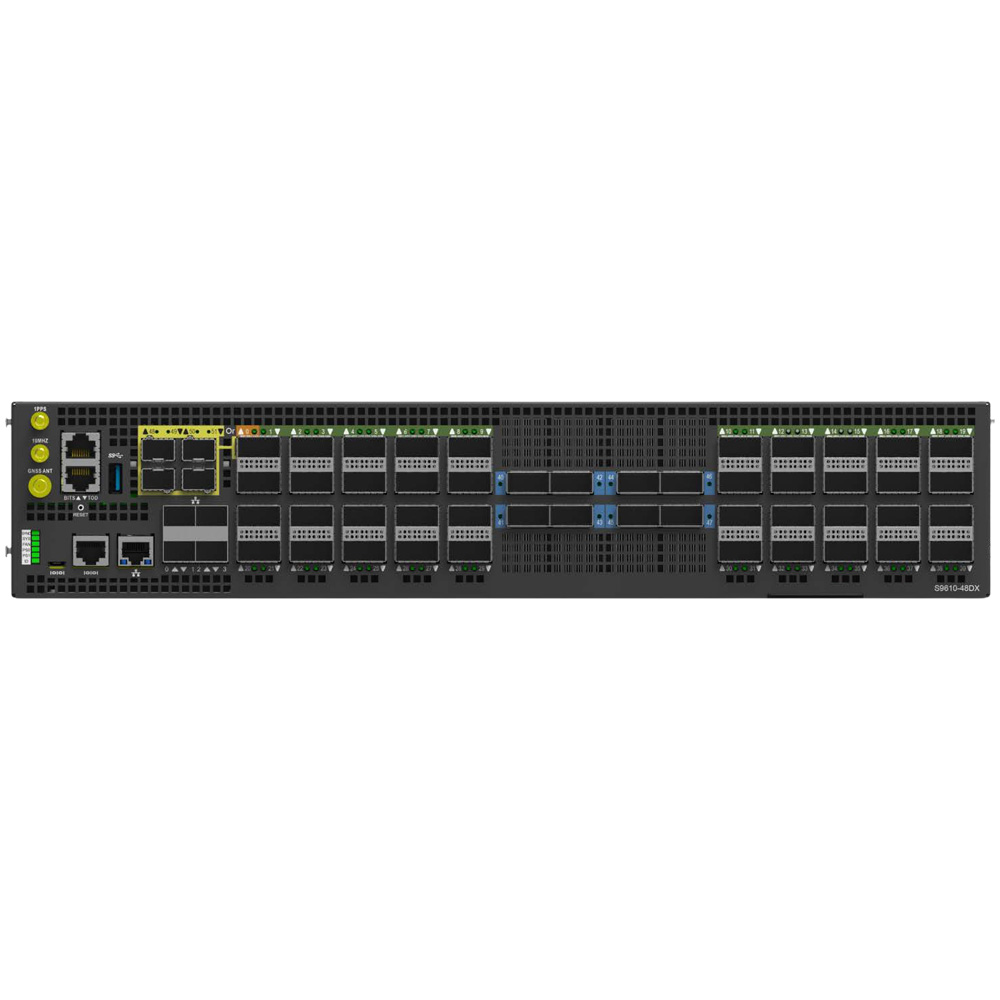

The UfiSpace S9610-48DX is a 2RU open aggregation router based on the Broadcom Qumran2c+ ASIC with 40 100G service ports and eight 400G QSFP-DD interfaces for service provider networks.

Use Cases

  • Service provider transport
  • Metro and mobile network routing

Ports & Switching

  • 40x100GbE QSFP28 ports
  • 8x400GbE QSFP-DD ports
  • 400ZR and OpenZR+ optical support
  • Four 10G/25G in-band interfaces share 100G port 0

Hardware & Platform

  • Broadcom Qumran2c+ BCM88840 silicon
  • Intel Ice Lake D, 8 Cores, 2.1GHz (Standard) or 12 Cores, 1.8GHz (Premium)
  • 64GB DDR4 system memory
  • 128GB SSD (Standard) or 2x256GB SSD (Premium)
  • 2RU rack form factor
  • 17.17 x 30.00 x 3.45 in (W x D x H)

Compatible Software (NOS)

  • Compatible with DriveNets Network Cloud. Confirm the software release and Standard or Premium hardware configuration.

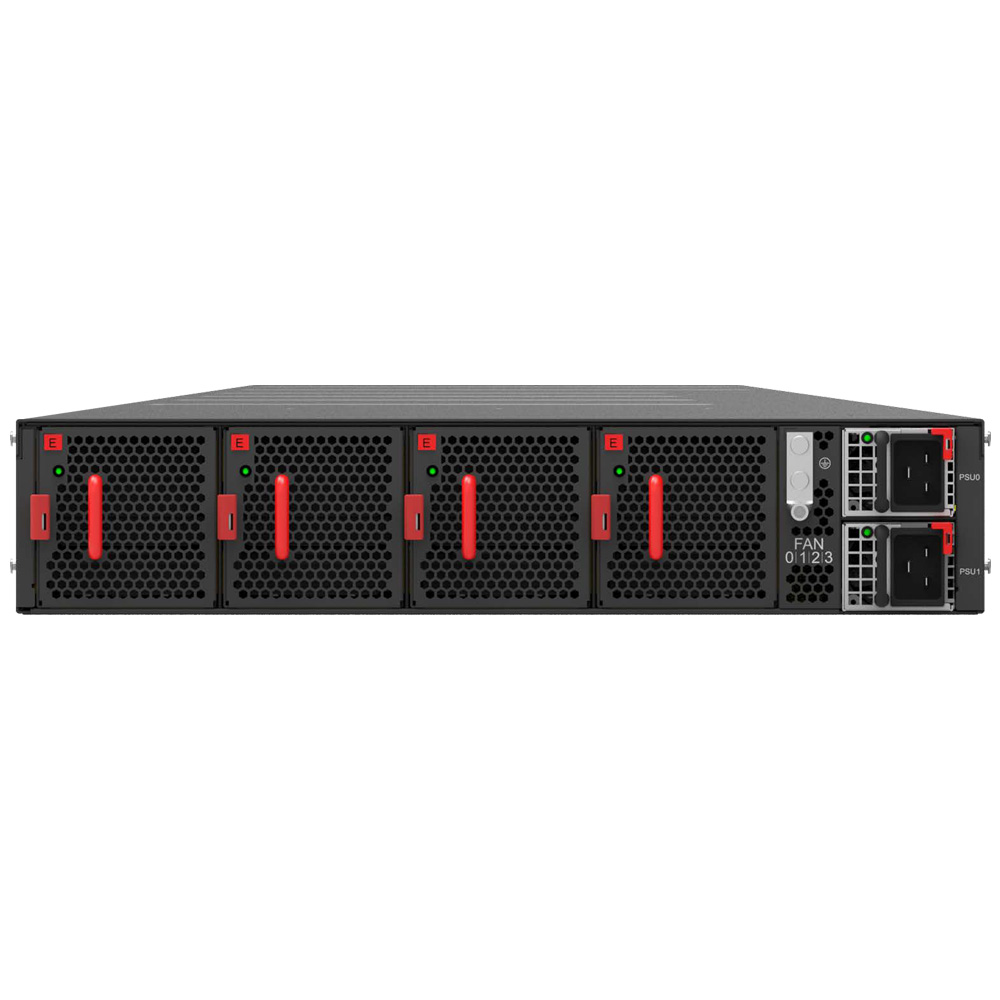

Cooling & Power

  • Dual AC or DC PSU
  • 3+1 hot-swappable fan units

Efficiency & Reliability

  • SyncE and IEEE 1588v2 timing
  • Class C synchronization
  • BMC for equipment health monitoring
  • Segment routing capabilities depend on the selected NOS
  • 8GB deep packet buffer

Ordering Information

  • S9610-48DX platform. Confirm the quoted configuration.
Specifications
Product Type

Aggregation Router
Main Port Count

40 Ports
Main Port Type

QSFP28
Main Port Speed

100GbE
Uplink Port Count

8 Ports
Uplink Port Type

QSFP-DD
Uplink Port Speed

400GbE
ASIC

Broadcom Qumran2c+ BCM88840
Processor

Intel Ice Lake D, 8 Cores, 2.1GHz (Standard) or 12 Cores, 1.8GHz (Premium)
Flash Memory

128GB SSD (Standard) or 2x256GB SSD (Premium)
Power Supply

Dual PSU
Supported NOS

DriveNets
Dimensions

17.17 x 30.00 x 3.45 in
Frequently Asked Questions

Question:

What ports does the S9610-48DX have?
Hardware Nation
12-Oct-2026

Answer:

40x100G ports and 8x400G ports in a 2RU chassis.

Question:

What switch chip does it use?
Hardware Nation
12-Oct-2026

Answer:

Broadcom Qumran2c+, BCM88840, with an 8 GB deep packet buffer.

Question:

Can it connect directly to coherent optical links?
Hardware Nation
12-Oct-2026

Answer:

Yes. The hardware supports 400ZR and OpenZR+ coherent optics. The specific module, optical path and NOS support must match the intended link.

Question:

Does it support mobile network timing?
Hardware Nation
12-Oct-2026

Answer:

Its hardware supports SyncE and IEEE 1588v2 PTP with Class C timing, plus GNSS and external timing interfaces. The required operating mode depends on the NOS release and configuration.

Question:

Does it have redundant power and cooling?
Hardware Nation
12-Oct-2026

Answer:

Yes. Two hot-swappable power supplies provide 1+1 redundancy, and four hot-swappable fan modules provide 3+1 redundancy. AC and DC power options are available.

Question:

How is it different from the S9610-46DX?
Hardware Nation
12-Oct-2026

Answer:

Both have 40x100G ports and Qumran2c+ hardware. The S9610-46DX has six 400G ports; the S9610-48DX has eight, with Standard and Premium control-processor configurations. Their software qualification lists differ.

Question:

How do its Standard and Premium configurations differ?
Hardware Nation
12-Oct-2026

Answer:

Standard uses an eight-core Ice Lake-D CPU at 2.1 GHz and one 128 GB SSD. Premium uses a 12-core CPU at 1.8 GHz and two 256 GB SSDs. Both have 64 GB DDR4 memory.
Warranty
All new products are covered by the manufacturer warranty. To claim warranty, you may contact the manufacturer directly or contact your account executive at Hardware Nation. We can help facilitate the warranty processes between the customer and manufacturer.
