UfiSpace S9601-104BC 96x25G SFP28 Ports Aggregation Router

MFR# S9601-104BC
Authorized Dealer
Check availability

Request Pricing
?

B2B Pricing

Shop with confidence knowing that you have a dedicated B2B account team ready to answer any technical or sales questions.

  • Exclusive business pricing
  • Custom quotes
  • Responsive technical support
  • Pre-sales and after-sales support
Request a Quote
Add to Quote Cart
Brand: UfiSpace
Product Type: Aggregation Router
Main Port Count: 96 Ports
Main Port Type: SFP28
Main Port Speed: 25GbE
Product Brief: S9601-104BC

UfiSpace S9601-104BC 96x25G SFP28 Ports Aggregation Router, 2RU, 96x25GbE SFP28 ports, 4x100GbE QSFP28 and 4x200GbE QSFP56 ports, Broadcom Qumran2c BCM88820 ASIC, Intel Denverton, 8 Cores, 1.7GHz Processor, Dual AC or DC PSU

Ask a Product Specialist

Open networking requires the right combination of hardware, software, and support to succeed. Our in-house engineering and support team works closely with industry-leading partners to help you source and integrate the right components, validate designs, and deploy with confidence, backed by two decades of successful deployments for data centers, service providers, and enterprises.

Looking for something else or have a question about this product?
800.398.1262  |  Email
Get a Quote
Overview

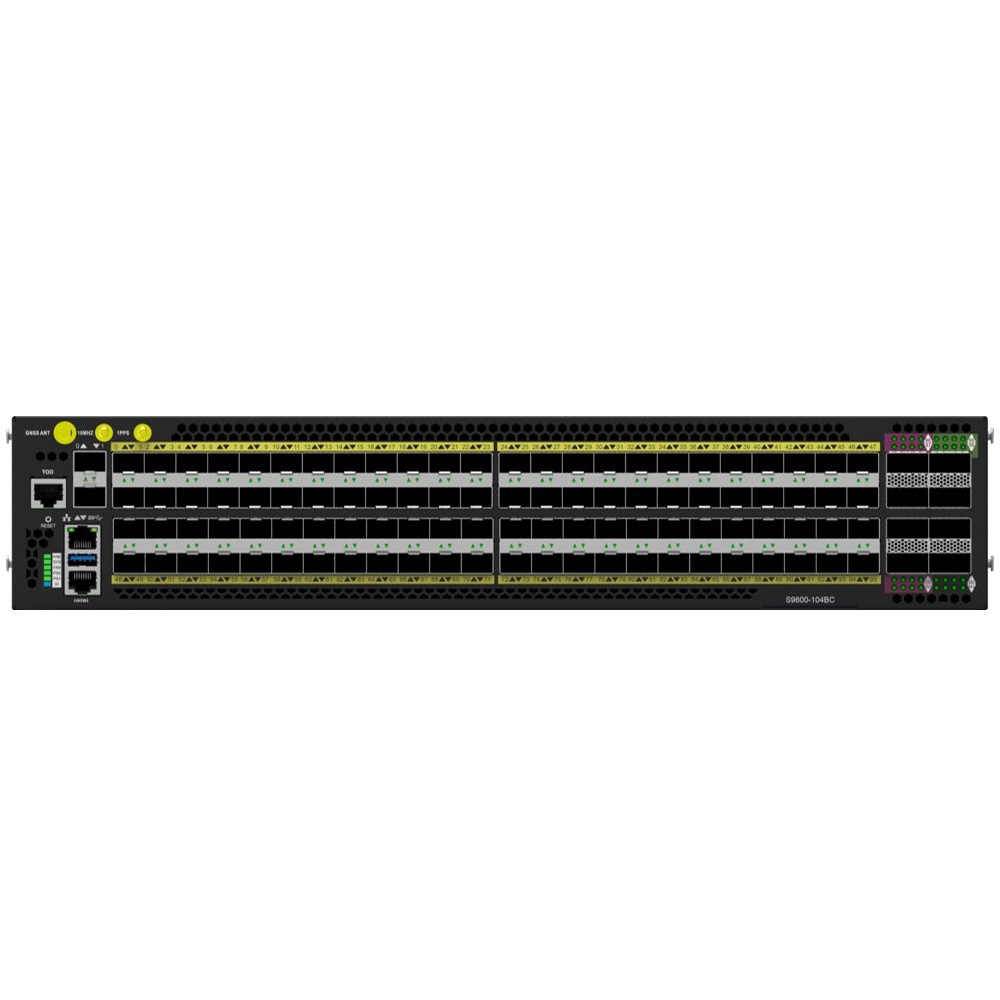

The UfiSpace S9601-104BC is a 2RU open aggregation router based on the Broadcom Qumran2c ASIC with 96 25G SFP28 service ports, four 100G QSFP28 and four 200G QSFP56 interfaces for service provider networks.

Use Cases

  • Service provider transport
  • Metro and mobile network routing

Ports & Switching

  • 96x25GbE SFP28 ports
  • 4x100GbE QSFP28 and 4x200GbE QSFP56 ports
  • Two additional 10G SFP+ management interfaces
  • Four 100G QSFP28 and four 200G QSFP56 interfaces for uplink connectivity

Hardware & Platform

  • Broadcom Qumran2c BCM88820 silicon
  • Intel Denverton, 8 Cores, 1.7GHz
  • 32GB DDR4 system memory
  • 128GB SSD
  • 2RU rack form factor
  • 17.32 x 17.32 x 3.45 in (W x D x H)
  • 32.47 lbs (without FRU)

Cooling & Power

  • Dual AC or DC PSU
  • 3+1 hot-swappable fan units

Efficiency & Reliability

  • SyncE and IEEE 1588v2 timing
  • Class C synchronization
  • BMC for equipment health monitoring
  • Segment routing capabilities depend on the selected NOS
  • 4GB deep packet buffer
  • External Broadcom OP2 BCM16K TCAM

Ordering Information

  • S9601-104BC platform. Confirm the quoted configuration.
Specifications
Product Type

Aggregation Router
Main Port Count

96 Ports
Main Port Type

SFP28
Main Port Speed

25GbE
Uplink Port Count

8 Ports
Uplink Port Type

QSFP28, QSFP56
Uplink Port Speed

100GbE, 200GbE
ASIC

Broadcom Qumran2c BCM88820
Processor

Intel Denverton, 8 Cores, 1.7GHz
Flash Memory

128GB SSD
Power Supply

Dual PSU
Dimensions

17.32 x 17.32 x 3.45 in
Weight

32.47 lbs
Frequently Asked Questions

Question:

What ports does the S9601-104BC have?
Hardware Nation
12-Oct-2026

Answer:

96x25G ports, four 100G ports and four 200G ports in a 2RU chassis.

Question:

What switch chip does it use?
Hardware Nation
12-Oct-2026

Answer:

Broadcom Qumran2c, BCM88820, with an external Broadcom OP2 TCAM and a 4 GB deep packet buffer.

Question:

What is it designed for?
Hardware Nation
12-Oct-2026

Answer:

Mobile transport and metro aggregation. Its 440 mm-deep chassis fits space-constrained 600 mm ETSI racks.

Question:

Does it support network timing?
Hardware Nation
12-Oct-2026

Answer:

Its hardware supports SyncE and IEEE 1588v2 PTP with Class C timing, plus GNSS and external timing interfaces. The selected NOS must implement the required timing profile.

Question:

Does it have redundant power and cooling?
Hardware Nation
12-Oct-2026

Answer:

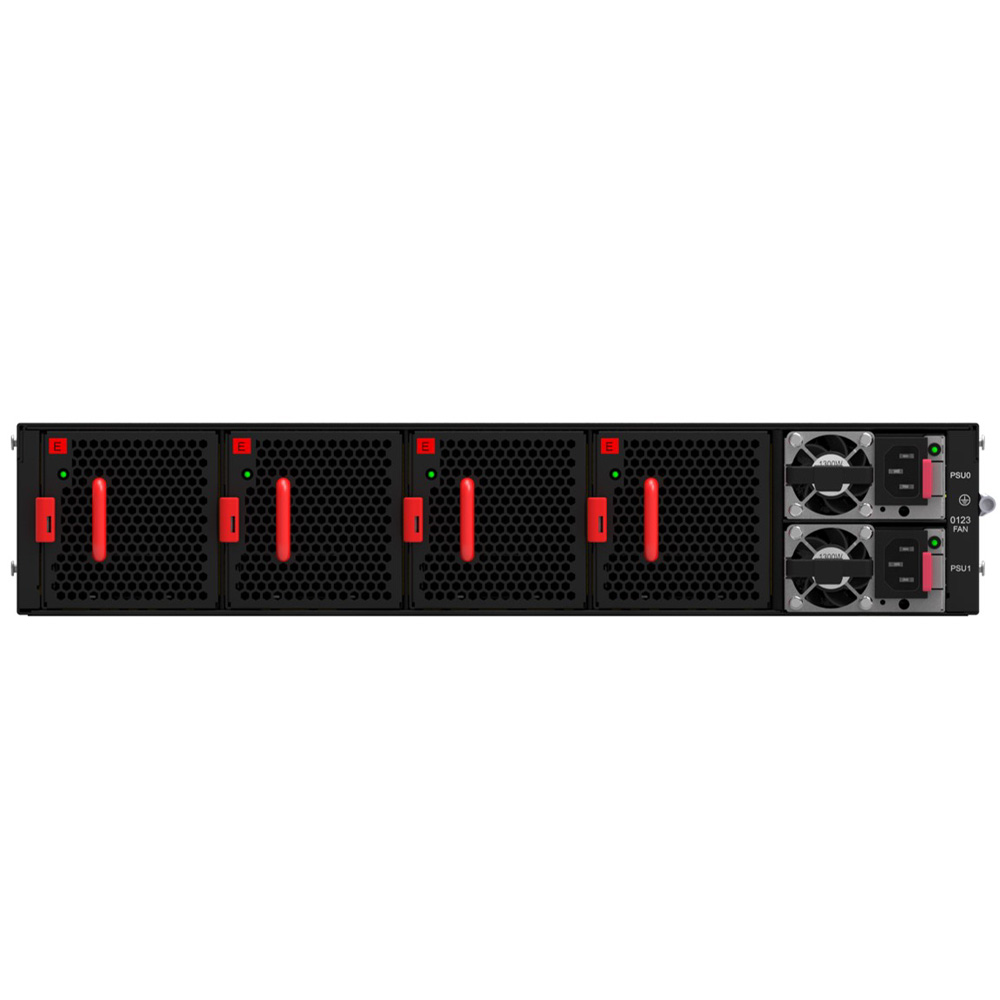

Yes. Two hot-swappable power supplies provide 1+1 redundancy, and four hot-swappable fan modules provide 3+1 redundancy. AC and DC power options are available.

Question:

What CPU, memory and storage does it have?
Hardware Nation
12-Oct-2026

Answer:

An eight-core Intel Denverton CPU at 1.7 GHz, 32 GB DDR4 memory and 128 GB SSD storage.
Warranty
All new products are covered by the manufacturer warranty. To claim warranty, you may contact the manufacturer directly or contact your account executive at Hardware Nation. We can help facilitate the warranty processes between the customer and manufacturer.
