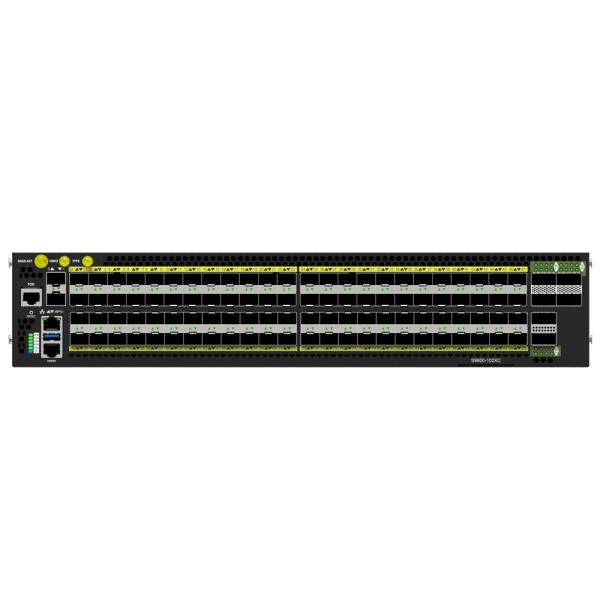

UfiSpace S9600-102XC 96x25G SFP28 Ports Aggregation Router

MFR# S9600-102XC
Authorized Dealer
Check availability

Request Pricing
?

B2B Pricing

Shop with confidence knowing that you have a dedicated B2B account team ready to answer any technical or sales questions.

  • Exclusive business pricing
  • Custom quotes
  • Responsive technical support
  • Pre-sales and after-sales support
Request a Quote
Add to Quote Cart
Brand Name: UfiSpace
Product Type: Aggregation Router
Main Port Count: 96 Ports
Main Port Type: SFP28
Main Port Speed: 25GbE
Product Brief: S9600-102XC

UfiSpace S9600-102XC 96x25G SFP28 Ports Aggregation Router, 2RU, 96x25GbE SFP28 ports, 6x100GbE QSFP28 ports, Broadcom Qumran2c BCM88820 ASIC, Intel Skylake D, 8 Cores, 1.9GHz Processor, Dual AC or DC PSU

Ask a Product Specialist

Open networking requires the right combination of hardware, software, and support to succeed. Our in-house engineering and support team works closely with industry-leading partners to help you source and integrate the right components, validate designs, and deploy with confidence, backed by two decades of successful deployments for data centers, service providers, and enterprises.

Looking for something else or have a question about this product?
800.398.1262  |  Live Chat  |  Email
Get a Quote
Overview

The UfiSpace S9600-102XC combines 96 25GbE service interfaces with 6 higher-speed interfaces in a 2RU platform for service provider transport.

Use Cases

  • Service provider transport
  • Metro and mobile network routing

Ports & Switching

  • 96x25GbE SFP28 ports
  • 6x100GbE QSFP28 ports
  • Two additional 10G SFP+ management interfaces

Hardware & Platform

  • Broadcom Qumran2c BCM88820 silicon
  • Intel Skylake D, 8 Cores, 1.9GHz
  • 32GB DDR4 system memory
  • 128GB SSD
  • 2RU rack form factor
  • 33.49 lbs (without FRU)

Compatible Software (NOS)

  • Compatible with RtBrick RBFS
  • Confirm the software release and feature set for the selected configuration.

Cooling & Power

  • Dual AC or DC PSU
  • 3+1 hot-swappable fan units

Efficiency & Reliability

  • SyncE and IEEE 1588v2 timing
  • Class C synchronization
  • BMC for equipment health monitoring
  • Segment routing capabilities depend on the selected NOS
  • 4GB deep packet buffer
  • External Broadcom OP2 BCM16K TCAM

Ordering Information

  • S9600-102XC platform. Confirm the quoted configuration.
Specifications
Brand Name

UfiSpace
Product Type

Aggregation Router
Main Port Count

96 Ports
Main Port Type

SFP28
Main Port Speed

25GbE
Uplink Port Count

6 Ports
Uplink Port Type

QSFP28
Uplink Port Speed

100GbE
ASIC

Broadcom Qumran2c BCM88820
Processor

Intel Skylake D, 8 Cores, 1.9GHz
Flash Memory

128GB SSD
Power Supply

Dual PSU
Supported NOS

RtBrick RBFS
Weight

33.49 lbs
Questions & Answers
Please login to post questions
Warranty
All new products are covered by the manufacturer warranty. To claim warranty, you may contact the manufacturer directly or contact your account executive at Hardware Nation. We can help facilitate the warranty processes between the customer and manufacturer.
SKU: S9600-102XC Categories: , Brand:
