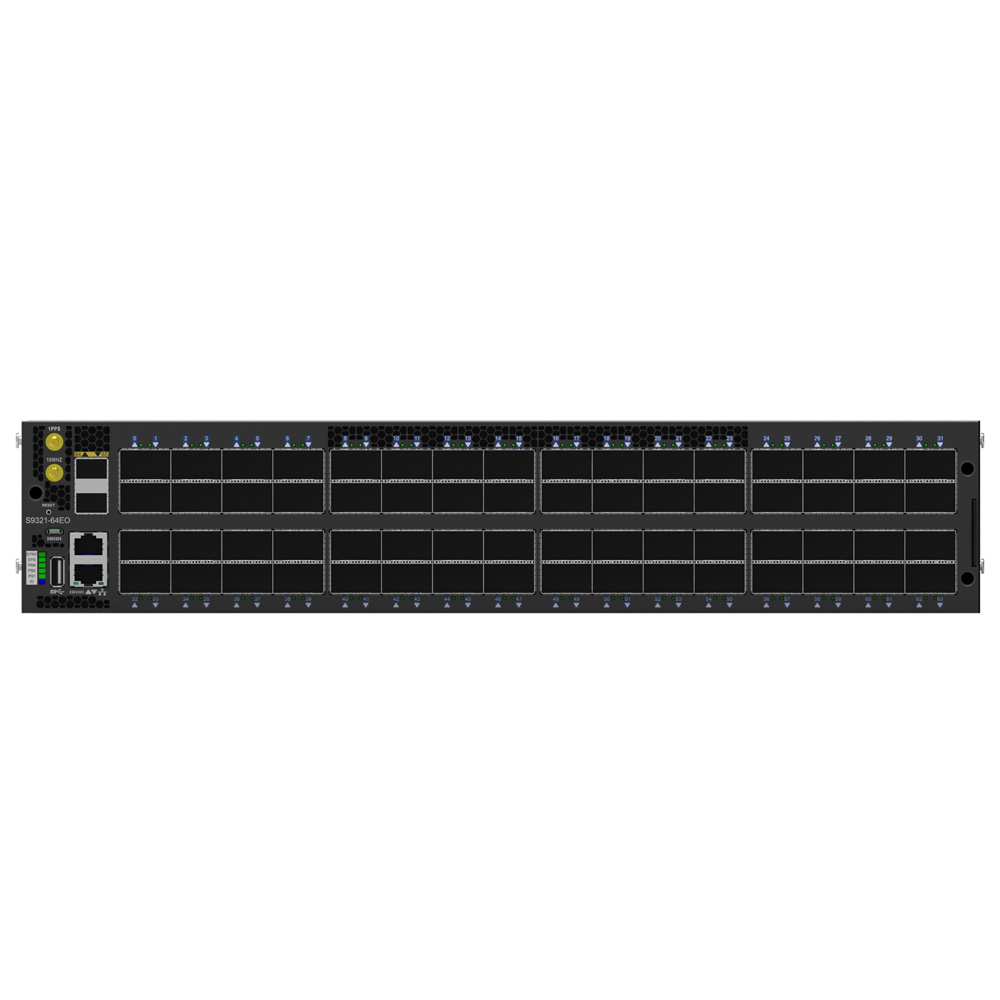

UfiSpace S9321-64EO 64x800G OSFP Ports Spine Switch

MFR# S9321-64EO
Authorized Dealer
Check availability

Request Pricing
?

B2B Pricing

Shop with confidence knowing that you have a dedicated B2B account team ready to answer any technical or sales questions.

  • Exclusive business pricing
  • Custom quotes
  • Responsive technical support
  • Pre-sales and after-sales support
Request a Quote
Add to Quote Cart
Brand Name: UfiSpace
Product Type: Open Switches
Main Port Count: 64 Ports
Main Port Type: OSFP
Main Port Speed: 800GbE
Product Brief: S9321-64EO

UfiSpace S9321-64EO 64x800G OSFP Ports Spine Switch, 2RU, 64x800GbE OSFP ports, Broadcom Tomahawk 5 BCM78900 ASIC, Intel Ice Lake D, 4 Cores, 1.9GHz Processor, Dual AC or DC PSU, Supported NOS IP Infusion OcNOS, SONiC

Ask a Product Specialist

Open networking requires the right combination of hardware, software, and support to succeed. Our in-house engineering and support team works closely with industry-leading partners to help you source and integrate the right components, validate designs, and deploy with confidence, backed by two decades of successful deployments for data centers, service providers, and enterprises.

Looking for something else or have a question about this product?
800.398.1262  |  Email
Get a Quote
Overview

The UfiSpace S9321-64EO provides 64 native 800G OSFP service interfaces for data center spine, leaf and core aggregation deployments.

Use Cases

  • Data center Ethernet connectivity
  • Cloud and AI infrastructure

Ports & Switching

  • 64x800GbE OSFP ports
  • Two additional 10G/25G SFP28 interfaces

Hardware & Platform

  • Broadcom Tomahawk 5 BCM78900 silicon
  • Intel Ice Lake D, 4 Cores, 1.9GHz
  • 32GB DDR4 system memory
  • 128GB SSD
  • 2RU rack form factor
  • 17.17 x 30.00 x 3.45 in (W x D x H)
  • 52.34 lbs (without FRU)

Compatible Software (NOS)

  • Compatible with IP Infusion OcNOS
  • Compatible with SONiC
  • Compatible with ArcOS
  • Software licensing and the supported feature set depend on the selected NOS and configuration.

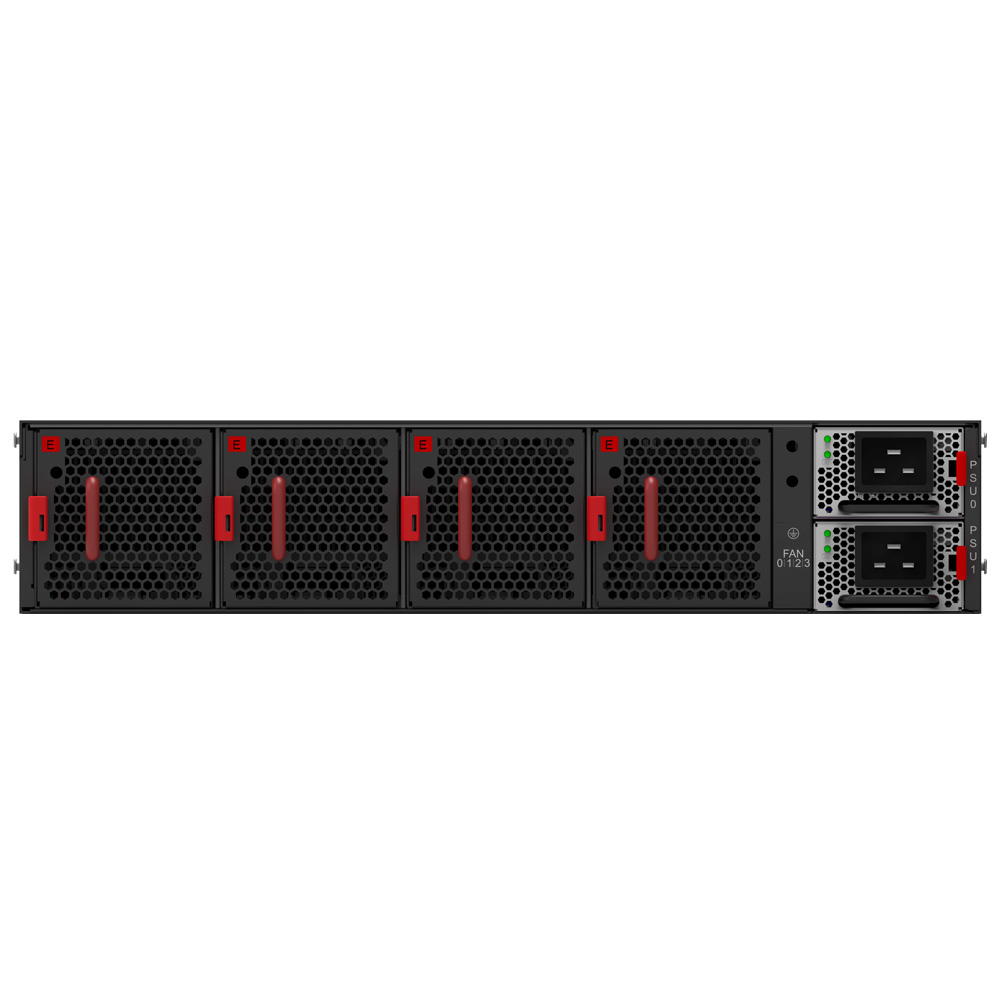

Cooling & Power

  • Dual AC or DC PSU
  • 3+1 hot-swappable fan units

Efficiency & Reliability

  • 51.2Tbps switching capacity
  • Adaptive routing and end-to-end congestion control
  • AST2620 BMC

Ordering Information

  • S9321-64EO platform. Confirm the quoted configuration.
Specifications
Brand Name

UfiSpace
Product Type

Open Switches
Main Port Count

64 Ports
Main Port Type

OSFP
Main Port Speed

800GbE
ASIC

Broadcom Tomahawk 5 BCM78900
Processor

Intel Ice Lake D, 4 Cores, 1.9GHz
Flash Memory

128GB SSD
Power Supply

Dual PSU
Supported NOS

ArcOS, IP Infusion OcNOS, SONiC
Dimensions

17.17 x 30.00 x 3.45 in
Weight

52.34 lbs
Warranty
All new products are covered by the manufacturer warranty. To claim warranty, you may contact the manufacturer directly or contact your account executive at Hardware Nation. We can help facilitate the warranty processes between the customer and manufacturer.
