Brand: UfiSpace
Product Type: Ethernet Switch
Main Port Count: 48 Ports
Main Port Type: RJ45
Main Port Speed: 1GbE
Product Brief: S6301-56STP

UfiSpace S6301-56STP 48x1G RJ45 Ports PoE Switch, 1RU, 48x1GbE RJ45 ports, 8x10GbE SFP+ ports, Broadcom Trident 3 X2 BCM56277 ASIC, Intel Denverton, 4 Cores, 1.6GHz Processor, Dual AC PSU

Ask a Product Specialist

Open networking requires the right combination of hardware, software, and support to succeed. Our in-house engineering and support team works closely with industry-leading partners to validate designs, integrate hardware and software, and coordinate support across vendors, so you don’t have to piece it all together yourself. We bring over a decade of successful deployments for data centers, service providers, and enterprises.

Looking for something else or have a question about this product?
800.398.1262  |  Email
Get a Quote
Overview

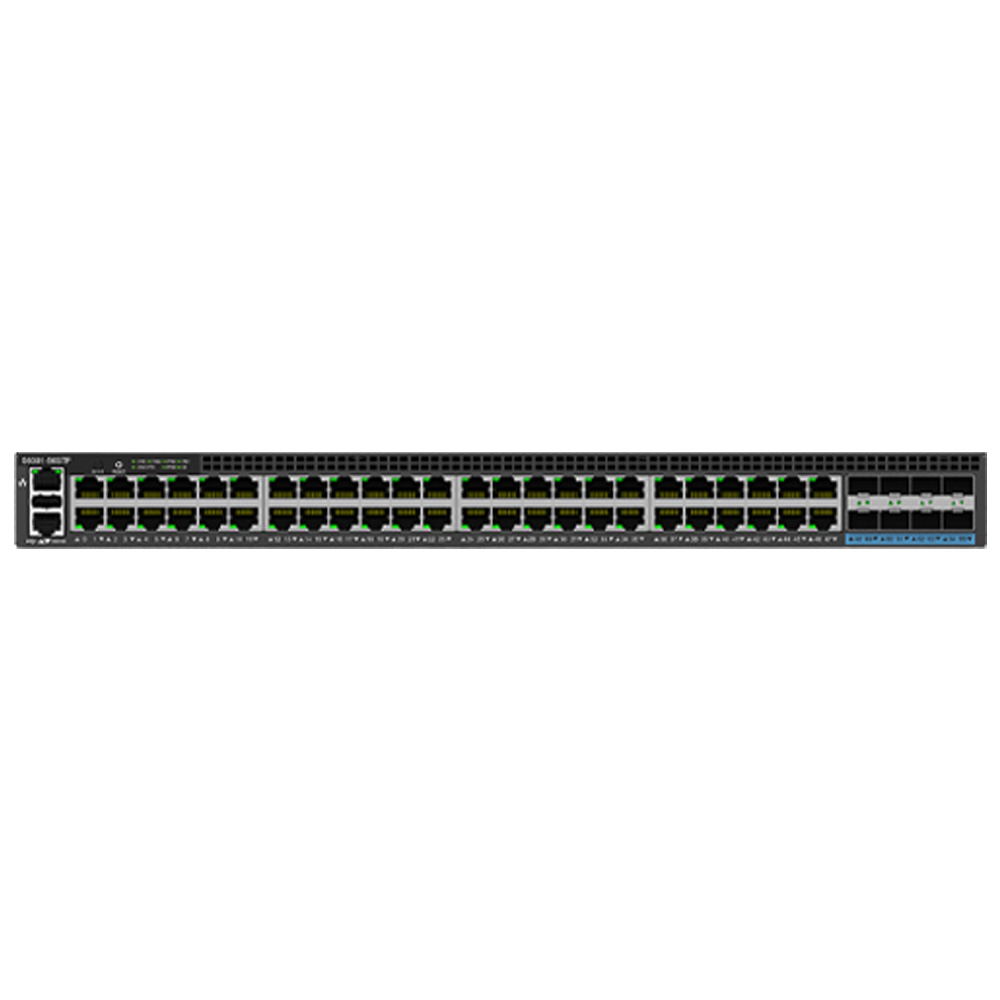

The UfiSpace S6301-56STP is a 1RU Gigabit Ethernet PoE switch based on the Broadcom Trident 3 X2 ASIC with 48 RJ45 ports and eight 10G SFP+ interfaces for access networks.

Use Cases

  • Enterprise and campus access
  • PoE endpoint connectivity

Ports & Switching

  • 48x1GbE RJ45 ports
  • 8x10GbE SFP+ ports
  • IEEE 802.3af/802.3at PoE on all 48 access ports
  • Up to 30W per PoE port

Hardware & Platform

  • Broadcom Trident 3 X2 BCM56277 silicon
  • Intel Denverton, 4 Cores, 1.6GHz
  • 16GB DDR4 system memory
  • 32GB SSD
  • 1RU rack form factor
  • 17.32 x 17.32 x 1.72 in (W x D x H)
  • 12.65 lbs (without FRU)

Compatible Software (NOS)

  • Compatible with PLVision SONiC Lite
  • Compatible with Broadcom Enterprise SONiC
  • Confirm the distribution, software release and feature set for the selected configuration.

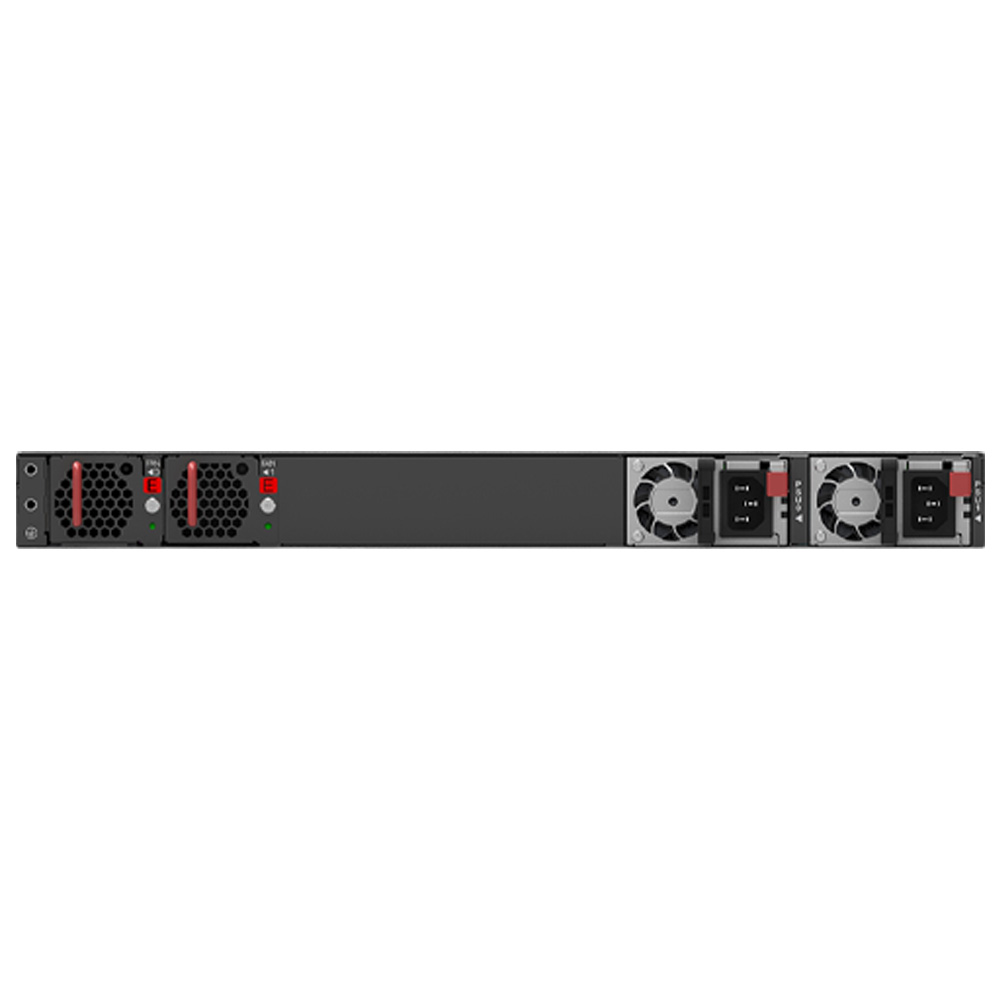

Cooling & Power

  • Dual AC PSU
  • 1+1 hot-swappable fan units

Efficiency & Reliability

  • Layer 2 and Layer 3 switching
  • 4MB packet buffer

Ordering Information

  • S6301-56STP platform. Confirm the quoted configuration.
Specifications
Product Type

Ethernet Switch
Main Port Count

48 Ports
Main Port Type

RJ45
Main Port Speed

1GbE
Uplink Port Count

8 Ports
Uplink Port Type

SFP+
Uplink Port Speed

10GbE
ASIC

Broadcom Trident 3 X2 BCM56277
Processor

Intel Denverton, 4 Cores, 1.6GHz
Flash Memory

32GB SSD
Layer Switching

L2, L3
Power Supply

Dual PSU
Supported NOS

SONiC
Dimensions

17.32 x 17.32 x 1.72 in
Weight

12.65 lbs
Frequently Asked Questions

Question:

Which network operating systems can I run on the S6301-56STP?
Hardware Nation
12-Oct-2026

Answer:

Enterprise SONiC Distribution by Broadcom and PLVision SONiC Lite are documented options for the S6301-56STP. SONiC Lite is a separate enterprise distribution based on Community SONiC; each software option has its own release and support requirements. Other NOS options may be available as the ecosystem evolves.

Question:

What ports does the S6301-56STP have?
Hardware Nation
12-Oct-2026

Answer:

48 Gigabit RJ45 ports and eight 10G SFP+ uplinks in a 1RU chassis.

Question:

What switch chip does it use?
Hardware Nation
12-Oct-2026

Answer:

Broadcom Trident 3-X2, BCM56277.

Question:

Does it provide PoE?
Hardware Nation
12-Oct-2026

Answer:

Yes. All 48 RJ45 ports support IEEE 802.3af/at PoE, with up to 30 W per port. The total available PoE budget and software support determine how many powered devices can operate at that limit together.

Question:

What is it designed for?
Hardware Nation
12-Oct-2026

Answer:

Enterprise or campus access networks, including small, medium-sized or branch offices. It combines Gigabit copper connectivity, PoE and 10G uplinks.

Question:

Does it have redundant power and cooling?
Hardware Nation
12-Oct-2026

Answer:

Yes. Hot-swappable power supplies and fan modules each provide 1+1 redundancy. The power input is AC.

Question:

What CPU, memory and storage does it have?
Hardware Nation
12-Oct-2026

Answer:

A quad-core Intel Denverton processor at 1.6 GHz, 16 GB DDR4 memory and 32 GB SSD storage.
