Micas Networks M2-W6520-24DC8QC-FA 24x200G QSFP56 Ports Leaf Switch

MFR# M2-W6520-24DC8QC-FA
Authorized Dealer
Check availability

Request Pricing
?

B2B Pricing

Shop with confidence knowing that you have a dedicated B2B account team ready to answer any technical or sales questions.

  • Exclusive business pricing
  • Custom quotes
  • Responsive technical support
  • Pre-sales and after-sales support
Request a Quote
Add to Quote Cart
Brand Name: Micas Networks
Product Type: Open Switches
Main Port Count: 24 Ports
Main Port Type: QSFP56
Main Port Speed: 200GbE
Product Brief: M2-W6520-24DC8QC-FA

Micas Networks M2-W6520-24DC8QC-FA 24x200G QSFP56 Ports Leaf Switch, 1RU, 24x200GbE QSFP56 ports, 8x400GbE QSFP-DD ports, Broadcom Trident 4 BCM56780 ASIC, Intel Xeon D-1627 Processor, Dual 1300W AC PSU, Front-to-rear airflow, Supported NOS SONiC

Ask a Product Specialist

Open networking requires the right combination of hardware, software, and support to succeed. Our in-house engineering and support team works closely with industry-leading partners to help you source and integrate the right components, validate designs, and deploy with confidence, backed by two decades of successful deployments for data centers, service providers, and enterprises.

Looking for something else or have a question about this product?
800.398.1262  |  Email
Get a Quote
Overview

The Micas Networks M2-W6520-24DC8QC-FA is a 1RU 200G data center leaf switch based on the Broadcom Trident 4 ASIC with 24 QSFP56 ports and eight 400G QSFP-DD uplinks. This configuration includes dual 1300W AC power supplies and front-to-rear airflow.

Use Cases

  • Data center Ethernet fabrics
  • Cloud and AI infrastructure

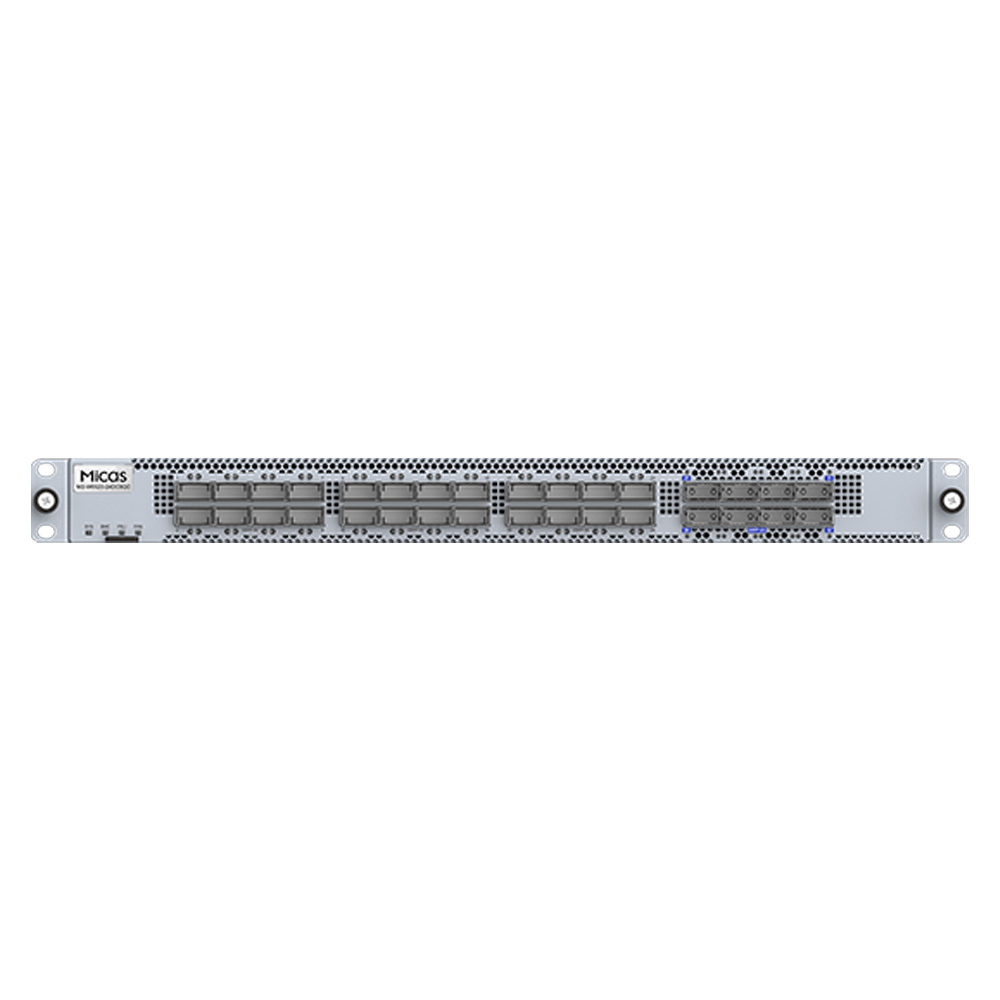

Ports & Switching

  • 24x200GbE QSFP56 ports
  • 8x400GbE QSFP-DD ports

Hardware & Platform

  • Broadcom Trident 4 BCM56780 silicon
  • Intel Xeon D-1627
  • 16GB DDR4 system memory
  • 240GB SSD
  • 1RU rack form factor
  • 17.40 x 26.41 x 1.72 in (W x D x H)
  • 25.57 lbs (with all modules)

Compatible Software (NOS)

  • Open Network Install Environment (ONIE)
  • Compatible with SONiC
  • Software licensing and the supported feature set depend on the selected NOS and configuration.

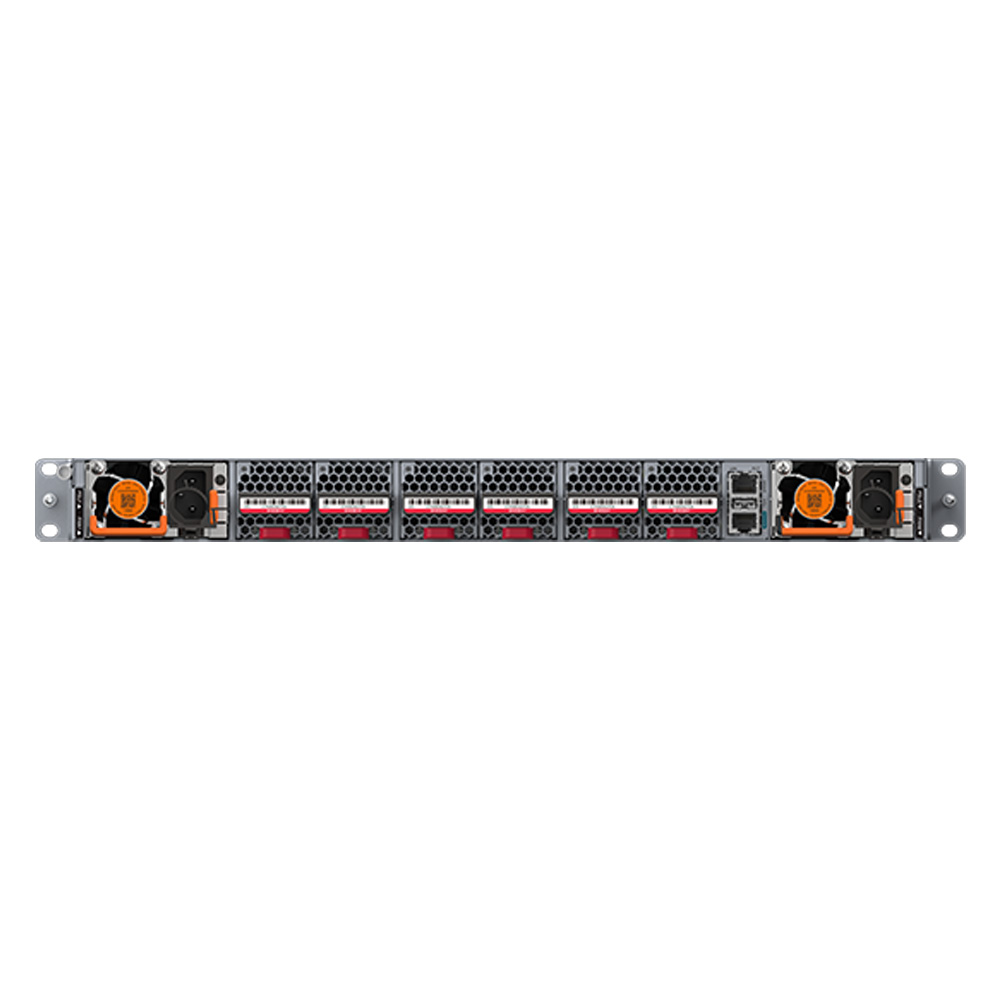

Cooling & Power

  • Dual 1300W AC PSU
  • 6 hot-swappable fans with 5+1 redundancy
  • Front-to-rear airflow

Efficiency & Reliability

  • Layer 2 and Layer 3 forwarding
  • Community and enterprise SONiC options
  • Redundant, serviceable power and cooling

Ordering Information

  • M2-W6520-24DC8QC-FA with dual 1300W AC PSU and front-to-rear airflow
Specifications
Brand Name

Micas Networks
Product Type

Open Switches
Main Port Count

24 Ports
Main Port Type

QSFP56
Main Port Speed

200GbE
Uplink Port Count

8 Ports
Uplink Port Type

QSFP-DD
Uplink Port Speed

400GbE
ASIC

Broadcom Trident 4 BCM56780
Processor

Intel Xeon D-1627
Flash Memory

240GB SSD
Layer Switching

L2, L3
Power Supply

Dual PSU
Supported NOS

SONiC
Software

Open Network Install Environment (ONIE)
Dimensions

17.40 x 26.41 x 1.72 in
Weight

25.57 lbs
Frequently Asked Questions

Question:

Which network operating systems can I run on the M2-W6520-24DC8QC-FA?
Hardware Nation
12-Oct-2026

Answer:

Community SONiC, Enterprise SONiC Distribution by Micas and Enterprise SONiC Distribution by Broadcom. ONIE is preloaded for installing a compatible image. Commercial software licensing and support depend on the selected package. Other NOS options may be available as the ecosystem evolves.

Question:

What ports does the M2-W6520-24DC8QC have?
Hardware Nation
12-Oct-2026

Answer:

24x200G QSFP56 ports and eight 400G QSFP-DD ports in a 1RU chassis.

Question:

What switch chip does it use?
Hardware Nation
12-Oct-2026

Answer:

Broadcom Trident 4, BCM56780.

Question:

What is it designed for?
Hardware Nation
12-Oct-2026

Answer:

A data center leaf switch for spine-to-leaf interconnects, combining 24 200G ports with eight 400G ports in 1RU.

Question:

Does it have redundant power and cooling?
Hardware Nation
12-Oct-2026

Answer:

Two hot-swappable power supplies provide 1+1 redundancy, and six hot-swappable fan modules provide 5+1 redundancy.

Question:

What power and airflow does this version use?
Hardware Nation
12-Oct-2026

Answer:

M2-W6520-24DC8QC-FA uses AC power and front-to-rear airflow.

Question:

What CPU, memory and storage does it have?
Hardware Nation
12-Oct-2026

Answer:

An Intel Xeon D-1627 CPU, 16 GB DDR4 memory and at least 240 GB storage.

Question:

Can the ports be split into lower speeds?
Hardware Nation
12-Oct-2026

Answer:

Yes. A 400G port supports 2x200G breakout, and a 200G port supports 2x100G breakout. The optics or cable and NOS release must support the selected port mode.
Warranty
All new products are covered by the manufacturer warranty. To claim warranty, you may contact the manufacturer directly or contact your account executive at Hardware Nation. We can help facilitate the warranty processes between the customer and manufacturer.
