Overview

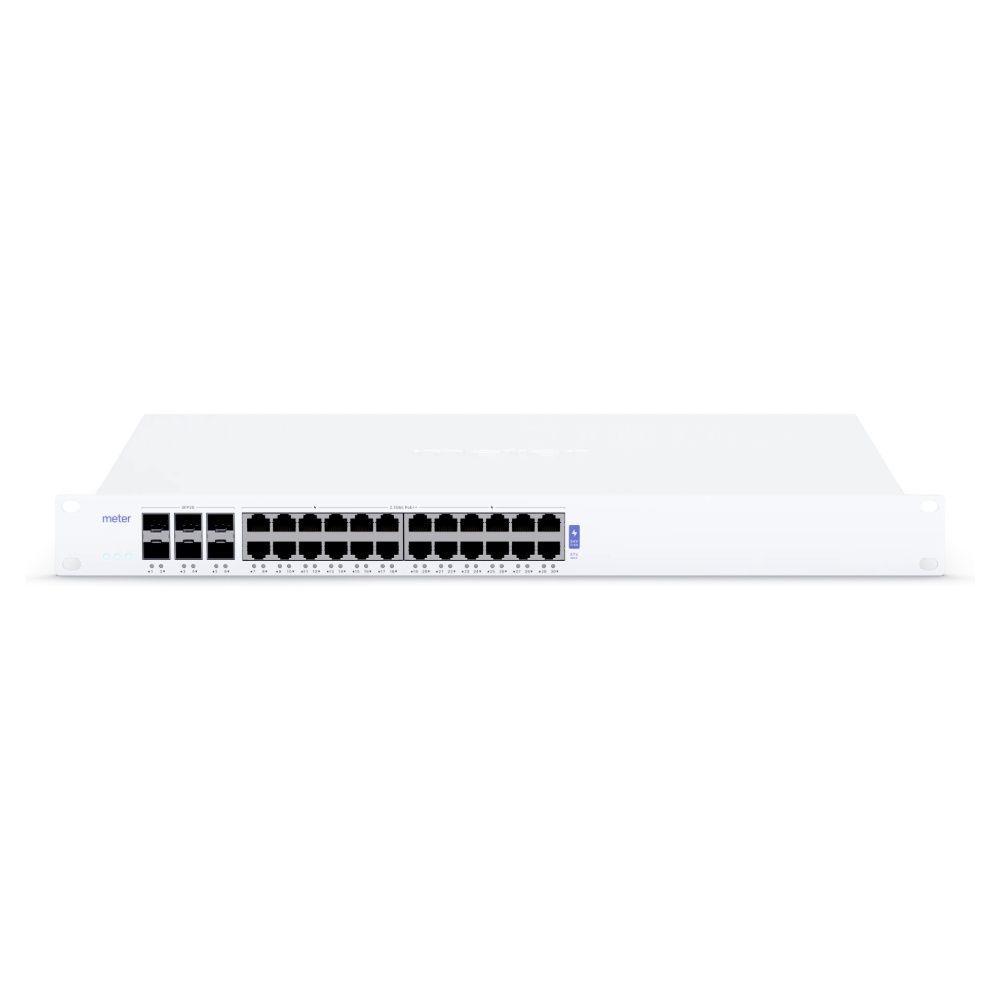

Meter S1 is a 24-port multigigabit PoE++ access switch for Meter-managed business networks.
Available as part of a Meter Network subscription; equipment and commercial terms confirmed in your quote. Learn about Meter through Hardware Nation.
Use Cases
- Multigigabit access networks
- Managed multi-site deployments
- PoE-powered access points and devices
Ports & Performance
- 24 x 2.5GbE RJ45 (10M/100M/1G/2.5G)
- 6 x 25G SFP28 uplinks (1/10/25G)
- 420 Gbps switching capacity
- 1 x Gigabit RJ45 out-of-band port
Power & Installation
- IEEE 802.3bt Type 3 Class 6
- Up to 60 W PoE per port
- 720 W total PoE budget
- 100-240 V AC; 50-60 Hz
- 440 x 340 x 44 mm (W x D x H)
- Weight: 10.747 lb
- 0 to 45 C operating temperature
Management & Subscription
- Meter Network operating system
- Meter Dashboard configuration and monitoring
Ordering Information
- Manufacturer product code: S1
- Subscription scope confirmed with quote
- Optics and cables specified for the deployment
- Size the connected load within the total PoE budget
