Overview

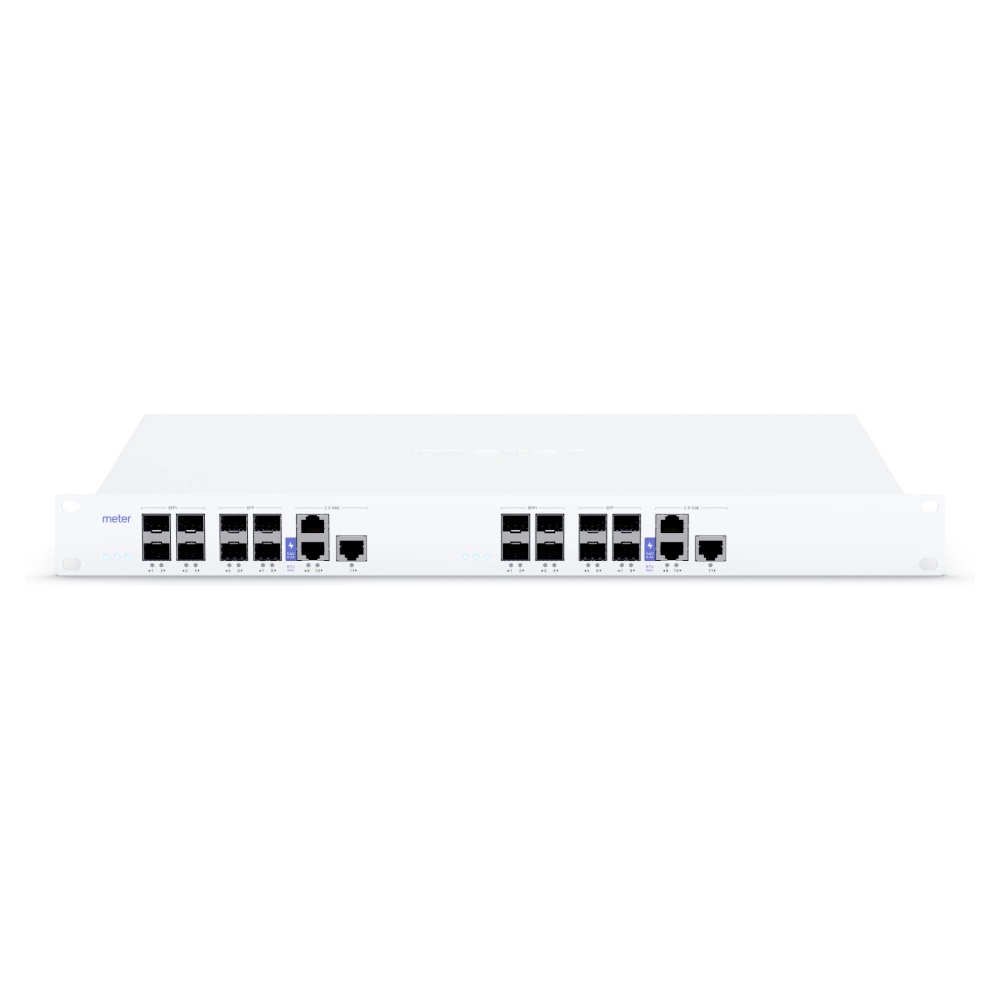

Meter F3 is a dual high-availability firewall in one chassis for managed business networks.
Available as part of a Meter Network subscription; equipment and commercial terms confirmed in your quote. Learn about Meter through Hardware Nation.
Use Cases
- Managed business network security
- High availability in one chassis
- Cellular out-of-band connectivity
Performance & Interfaces
- 20 Gbps rated firewall throughput
- Each firewall has the following interfaces:
- 4 x 10G SFP+ (1/10G)
- 4 x 1G SFP
- 3 x 2.5GbE RJ45 (10M/100M/1G/2.5G)
- 1 x PoE+ output per firewall
Power & Hardware
- 2 x 150 W internal power supplies
- 100-240 V AC; 50-60 Hz
- 440 x 340 x 44 mm (W x D x H)
- Weight: 10.69 lb
- 0 to 45 C operating temperature
Management & Subscription
- Meter Network operating system
- Managed through the Meter Dashboard
- Compatible with Meter 5G gateway
Ordering Information
- Manufacturer product code: F3
- Subscription scope confirmed with quote
- Gateway and optical modules specified with the project
- Provide site count and connectivity requirements
