Overview

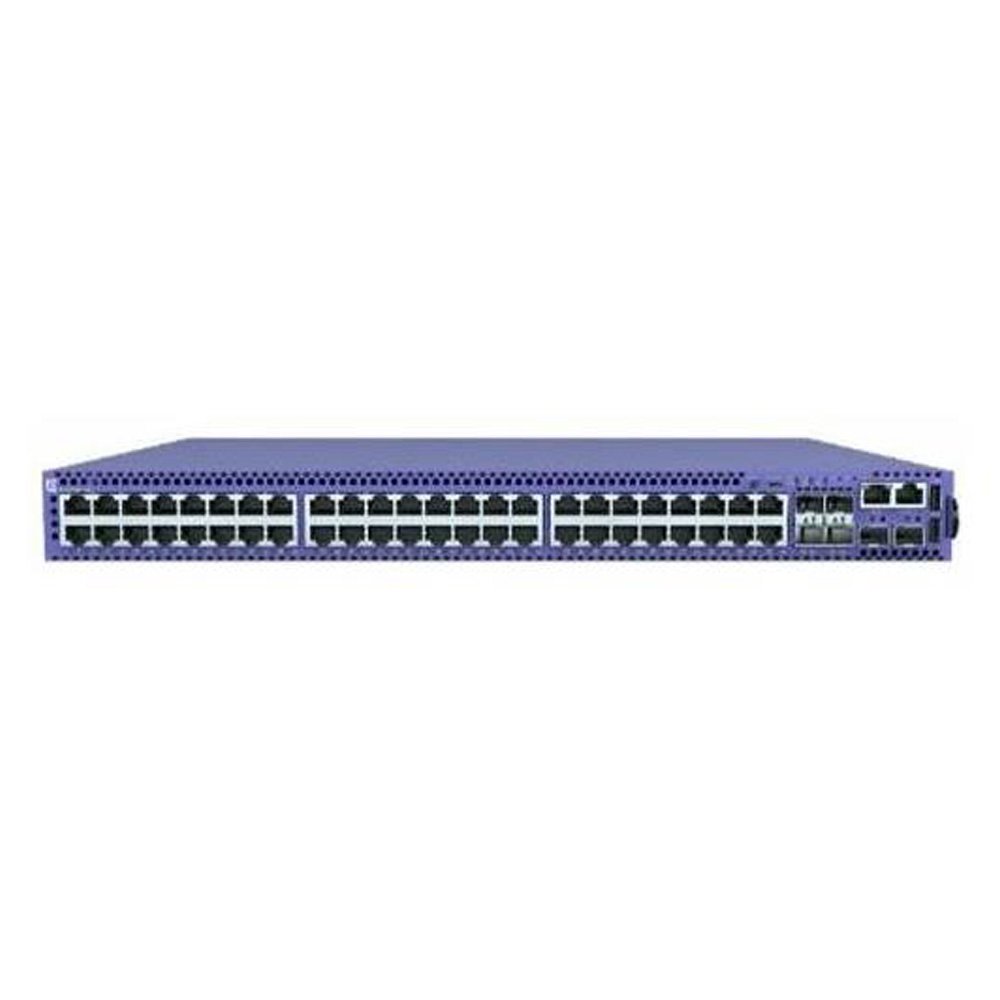

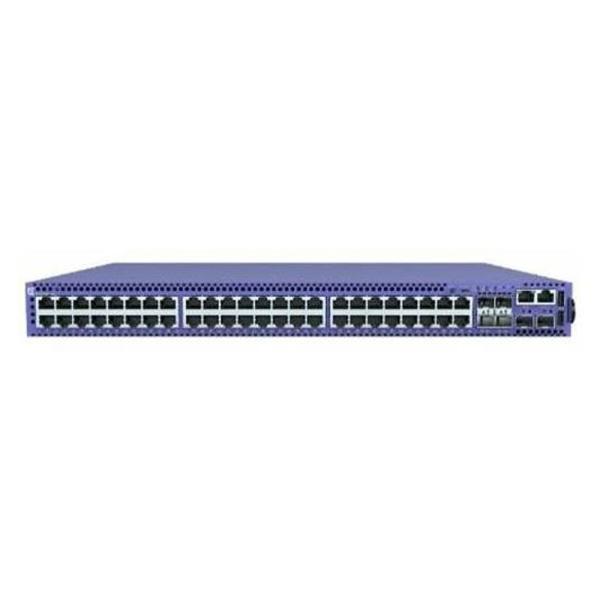

The Extreme Networks 5420M-16MW-32P-4YE is a 1RU multi-gigabit PoE edge switch with 48 access ports and 4x1/10/25G SFP28 uplinks.
Use Cases
- Enterprise edge networks
- Wiring-closet access
Ports & Switching
- 16x100M/1G/2.5GBASE-T RJ45 ports
- 32x10/100/1000BASE-T RJ45 ports
- 4x1/10/25G SFP28 uplink ports
- 424Gbps switching bandwidth
- 315.5Mpps forwarding rate
- 1x10/100/1000BASE-T out-of-band management port
- 1xRJ45 serial console port
- 2xUSB-A ports
- 1xUSB Micro-B console port
- 8-switch stacking with Switch Engine
- 80Gbps stacking per unit via 2xSFP-DD ports
- Fabric Engine does not support stacking
Hardware & Platform
- 1RU rack form factor
- 17.4 x 13.0 x 1.7 in (W x D x H)
- 5.30 kg, excluding optional PSUs
Compatible Software (NOS)
- Extreme Switch Engine or Fabric Engine
Management & Licensing
- Base software licence and Extreme Fabric included
- Premier licence required for selected routing features
- MACsec requires a supported hardware revision and 5000-MACSEC-LIC-P licence
- Extreme Platform ONE or ExtremeCloud IQ management
- ExtremeCloud IQ Site Engine management
- Web GUI and CLI management
- Extreme Platform ONE Security requires a separate licence
Cooling & Power
- Two PSU slots; no PSU included
- Field-replaceable fan module
- 16 PoE ports, up to 90W each (802.3bt)
- 32 PoE+ ports, up to 30W each (802.3at)
- 787W PoE with one XN-ACPWR-1200W-FB
- 1,541W PoE with two XN-ACPWR-1200W-FB PSUs
- 884W PoE at 100-120V with recommended single 2000W PSU
- 1,440W PoE at 200-240V with recommended single 2000W PSU
- 1,687W PoE at 100-120V with recommended dual 2000W PSUs
- 2,400W PoE at 200-240V with recommended dual 2000W PSUs
- Per-port PoE output is limited by the total power budget
Efficiency & Reliability
- IEEE 802.1 AVB with Switch Engine
Ordering Information
- Switch, fans and rack-mount kit included
- Compatible PSU required; ordered separately
- Primary PSU options: XN-ACPWR-2000W or XN-ACPWR-1200W-FB
- Secondary PSU options also include XN-ACPWR-2000W-FB-A
- Use a supported PSU pairing from the vendor power table
- Power cords and console cable ordered separately
- Optics and stacking cables ordered separately
- Optional licences ordered separately
- Universal Limited Lifetime Warranty; vendor policy applies
