Overview

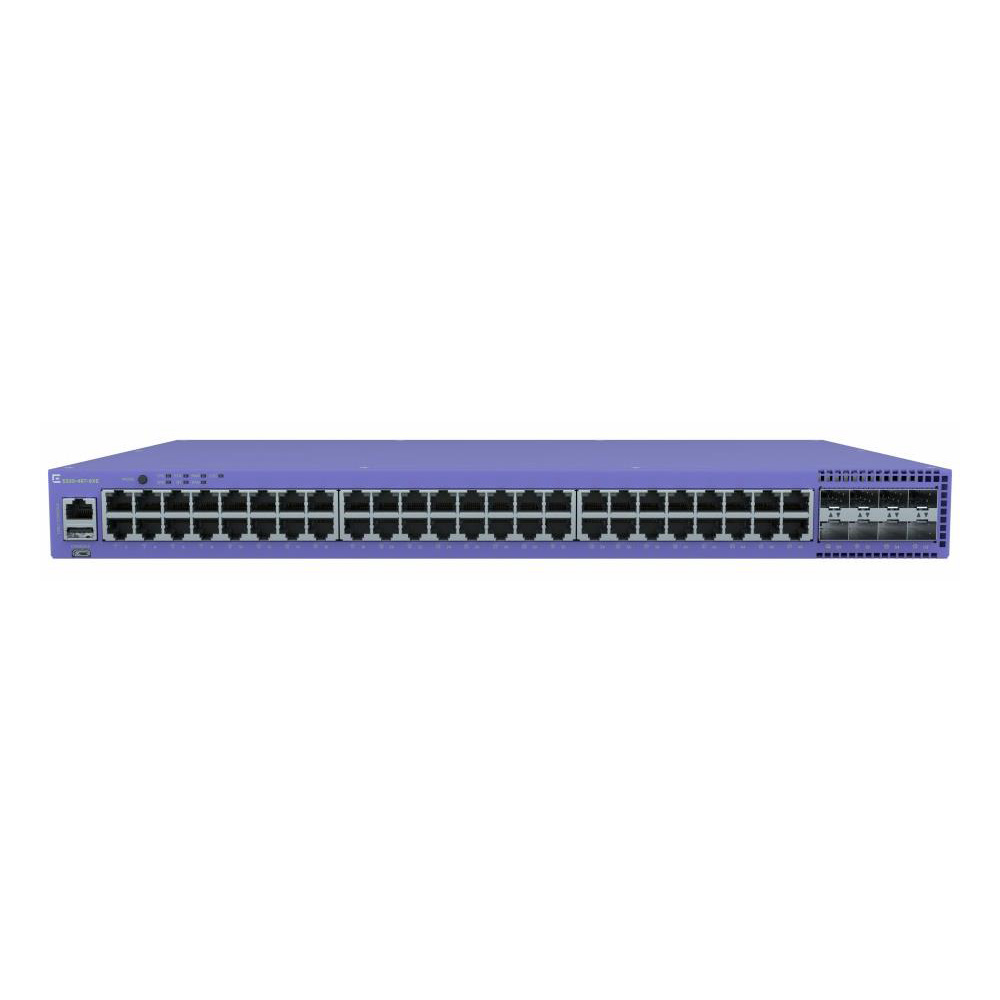

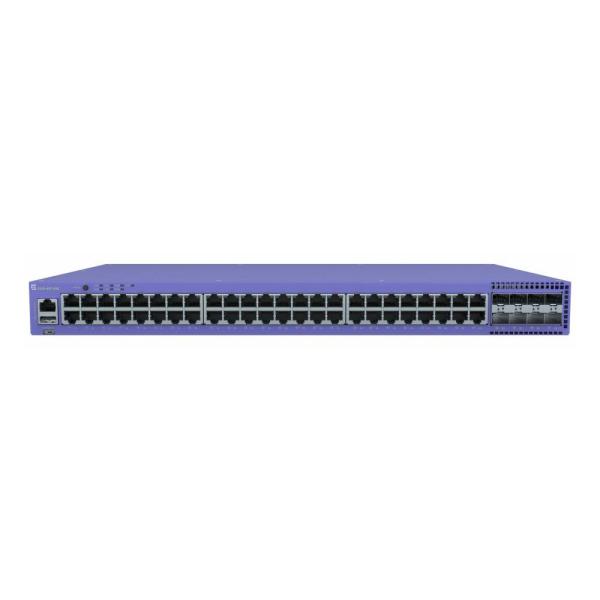

The Extreme Networks 5320-48T-8XE is a 48-port gigabit switch.
Use Cases
- Enterprise campus and branch access
Ports & Switching
- 48x10/100/1000BASE-T RJ45 ports
- 8x1/10GbE SFP+ uplink ports
- Up to 8-switch stacking with Switch Engine
- 40Gbps stacking per unit; shared uplink ports
- 256Gbps aggregate switching bandwidth
- 190.5Mpps forwarding rate
- RJ45 serial console and USB-A storage interfaces
- USB Micro-B console interface
Hardware & Platform
- 1RU rack form factor
- 17.3 x 11.0 x 1.7 in (W x D x H; chassis)
- 9.3 lb manufacturer reference weight
Compatible Software (NOS)
- Switch Engine
- Fabric Engine
Management & Licensing
- Extreme Platform ONE or ExtremeCloud IQ management
- ExtremeCloud IQ Site Engine management
- Web GUI and CLI management
- Base software included
- Premier licence required for selected routing features
- Extreme Platform ONE Security requires a separate licence
- MACsec requires the applicable licence and supported hardware
Cooling & Power
- 1x fixed AC power supply included
- Fixed fans
Efficiency & Reliability
- Audio Video Bridging with Switch Engine
- IEEE 802.3az Energy Efficient Ethernet
Ordering Information
- Console cables and optical transceivers ordered separately
- Universal Limited Lifetime Warranty; manufacturer policy terms apply
