Overview

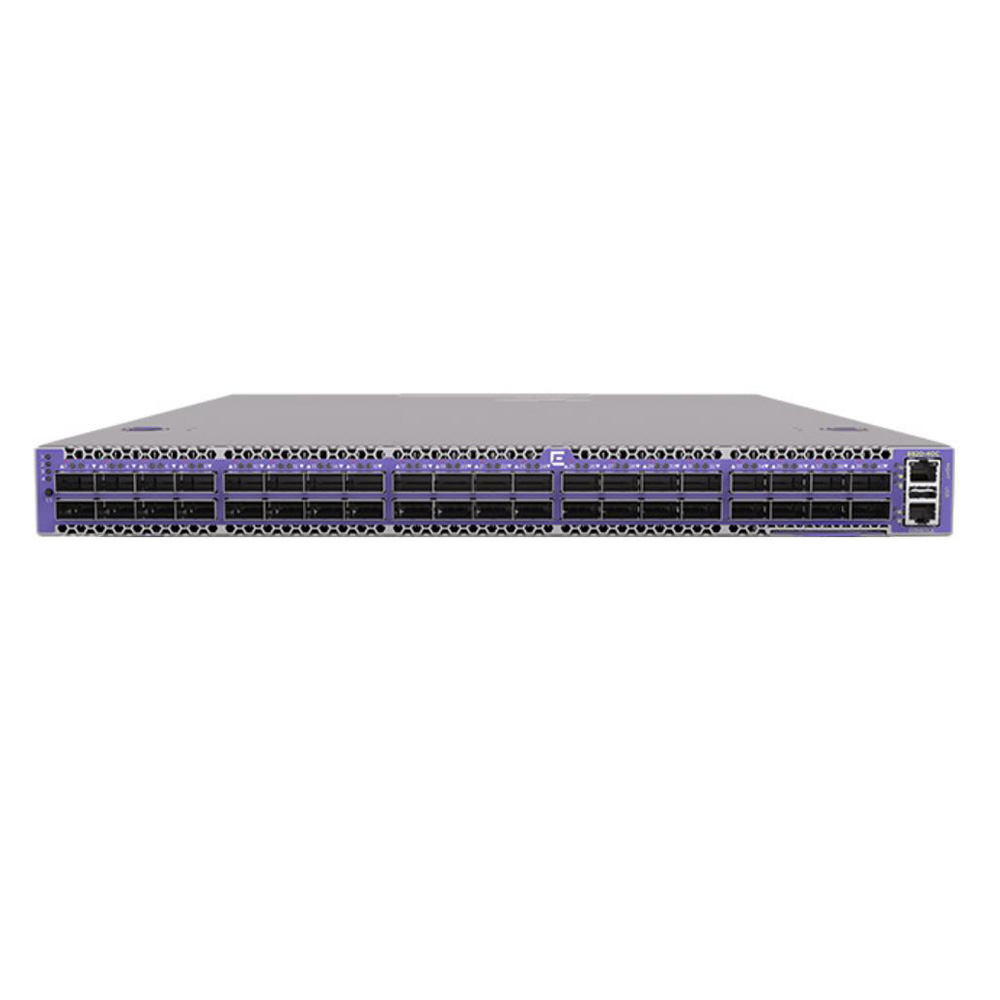

The Extreme Networks 8820-40C is a 40-port 100GbE data center switch and router.
Use Cases
- Data center spine and interconnect networks
- Enterprise and service-provider border routing
Ports & Switching
- 40x40/100GbE QSFP28 ports
- 72x10/25GbE ports in supported breakout configurations
- 4.0Tbps switching capacity in each direction
- 2000Mpps forwarding rate at 284-byte packets
Hardware & Platform
- 1RU rack form factor
- 17.72 x 25.2 x 1.7 in (W x D x H; chassis)
- 8GB packet buffer
- 23.28 lb excluding fans and PSUs
Compatible Software (NOS)
- SLX-OS
Management & Licensing
- Baseboard Management Controller for remote chassis management
- 8800-PRMR-LIC-P includes Integrated Application Hosting
Cooling & Power
- 2x empty modular PSU slots
- 6x empty fan slots
- Power supplies and fans required; ordered separately
Efficiency & Reliability
- Secure Boot and Measured Boot
- Redundant power and fan capability
Ordering Information
- Rack-mount kit included
- Power cords and optics ordered separately
