Overview

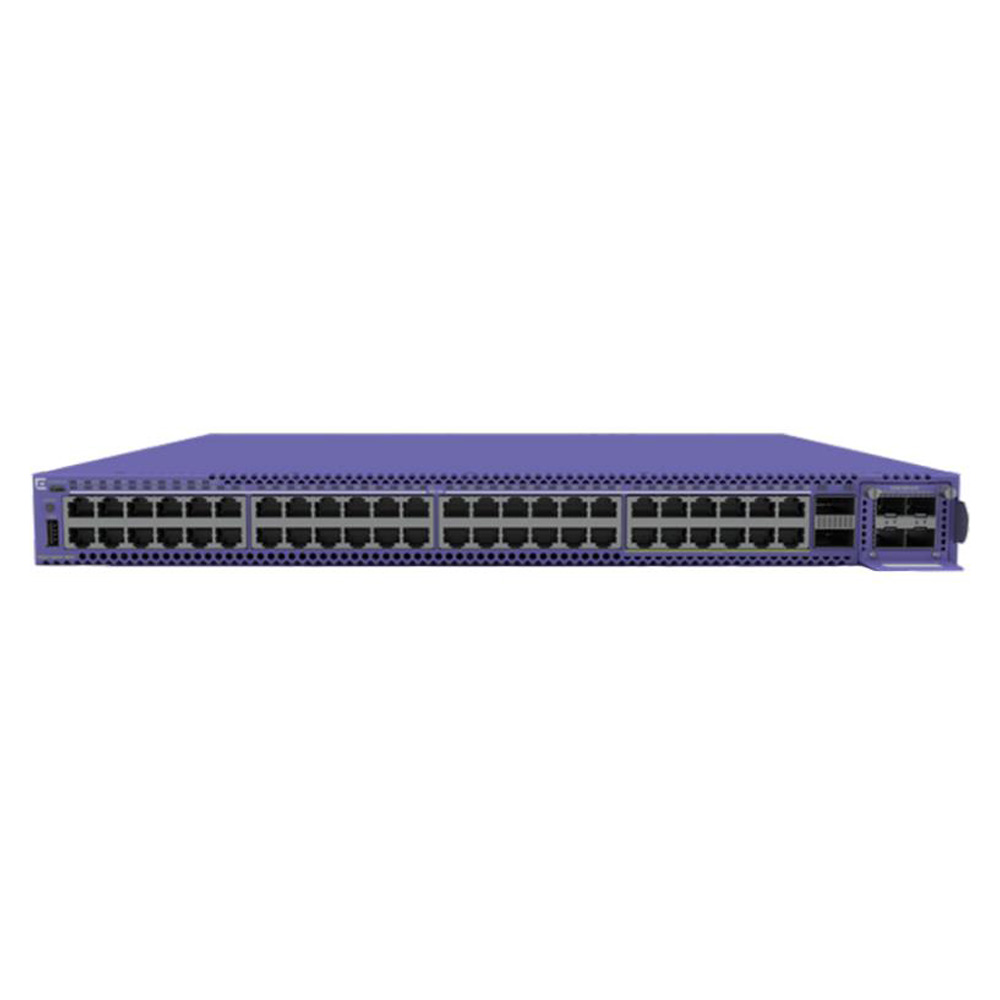

The Extreme Networks 5520-12MW-36W is a 1RU multi-gigabit PoE edge and aggregation switch with 48 RJ45 main ports and an optional uplink-module slot.
Use Cases
- Enterprise edge and aggregation networks
- Campus wiring closets
- Wireless access points and powered Ethernet devices
Ports & Switching
- 12x100M/1G/2.5G/5GBASE-T RJ45 ports
- 36x10/100/1000BASE-T RJ45 ports
- 2xQSFP28 stacking or Ethernet ports; OS restrictions apply
- 40GbE Ethernet mode; breakout options depend on OS
- 1xVIM slot; uplink module ordered separately
- Optional 5520-VIM-4X: 4x1/10G SFP+ ports
- Optional 5520-VIM-4XE: 4x1/10G SFP+, LRM and MACsec
- Optional 5520-VIM-4YE: 4x10/25G SFP28 ports
- 792Gbps aggregated switching bandwidth
- 589.3Mpps forwarding rate
- Up to 8-switch stacking with Switch Engine
- 200Gbps stacking per unit with Switch Engine 31.6 or later
- Fabric Engine Ethernet mode requires non-Fabric mode or no VIM
- 1xGigabit out-of-band management port
- RJ45 serial and USB Micro-B console ports
- 2xUSB-A ports
Hardware & Platform
- 1RU rack form factor
- 17.36 x 17.42 x 1.73 in (W x D x H; chassis only)
- 13.96 lb with fans, excluding PSUs
Compatible Software (NOS)
- Extreme Switch Engine or Fabric Engine
Management & Licensing
- Extreme Platform ONE or ExtremeCloud IQ management
- ExtremeCloud IQ Site Engine management
- Web GUI and CLI management
- Base software licence and Extreme Fabric included
- Premier licence required for selected routing features
- Optional perpetual Premier licence: 5000-PRMR-LIC-P
- MACsec requires separate 5000-MACSEC-LIC-P licence
- Extreme Platform ONE Security requires a separate licence
Cooling & Power
- 3 hot-swappable fan modules included
- Front-to-back airflow
- 2 empty PSU slots; at least 1 PSU required
- Compatible AC PSUs ordered separately
- 48 IEEE 802.3bt PoE ports, up to 90W each
- 464W PoE budget with one 715W PSU
- 1049W PoE budget with two 715W PSUs
- 849W PoE budget with one 1100W PSU
- 1751W PoE budget with two 1100W PSUs
- 849W PoE budget with one 2000W PSU at 100-120VAC
- 1749W PoE budget with one 2000W PSU at 200-240VAC
- 1839W PoE budget with two 2000W PSUs at 100-120VAC
- 3549W PoE budget with two 2000W PSUs at 200-240VAC
- Per-port PoE output is limited by the total power budget
- Use matching PSU types for optimal PoE operation
Efficiency & Reliability
- IEEE 802.1 AVB with Switch Engine
- Perpetual and fast PoE
- Redundant hot-swappable PSUs supported; second PSU ordered separately
Ordering Information
- Base switch, Base software licence and rack-mount kit included
- Fan modules included; PSUs not included
- VIMs, optics and stacking cables ordered separately
- Power cords and console cables ordered separately
- Optional licences ordered separately
- AC PSU options: XN-ACPWR-715W-FB, XN-ACPWR-1100W-FB or XN-ACPWR-2000W-FB
- Universal Limited Lifetime Warranty; vendor policy applies
