Overview

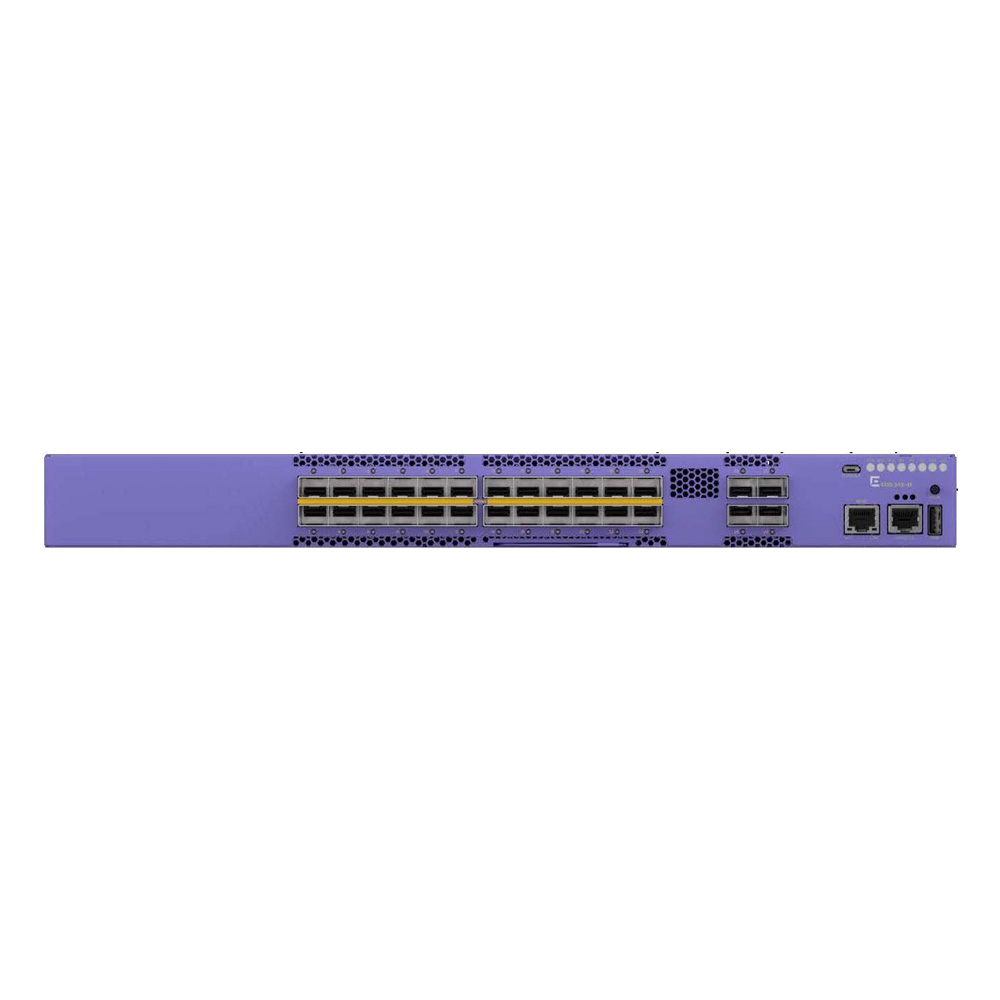

The Extreme Networks 5120-24X-4Y is a 24-port 10GbE SFP+ switch.
Use Cases
- Enterprise edge and aggregation networks
Ports & Switching
- 24x1/10GbE SFP+ ports
- 100Mbps operation limited to the first 12 ports
- 100Mbps requires the qualified 100BASE-FX transceiver
- 4x1/10/25GbE SFP28 uplink ports
- Up to 8-switch stacking
- Stacking shares Ethernet uplink ports
- 680Gbps aggregate switching bandwidth
- 506Mpps forwarding rate
- Gigabit out-of-band management interface
- RJ45 serial console interface
Hardware & Platform
- 1RU rack form factor
- 17.34 x 17.06 x 1.7 in (W x D x H; chassis)
- 12.77 lb excluding fans and PSUs
Compatible Software (NOS)
- Switch Engine
Management & Licensing
- Extreme Platform ONE or ExtremeCloud IQ management
- ExtremeCloud IQ Site Engine management
- Web GUI and CLI management
- Base software included
- Premier licence required for selected routing features
- Extreme Platform ONE Security requires a separate licence
- MACsec requires the applicable licence and supported hardware
Cooling & Power
- 2x empty modular PSU slots
- 4x empty fan slots
- Power supplies and fans required; ordered separately
Efficiency & Reliability
- Audio Video Bridging with Switch Engine
Ordering Information
- Rack-mount kit ordered separately
- Power cords and optics ordered separately
- Console cables and optical transceivers ordered separately
- Universal Limited Lifetime Warranty; manufacturer policy terms apply
