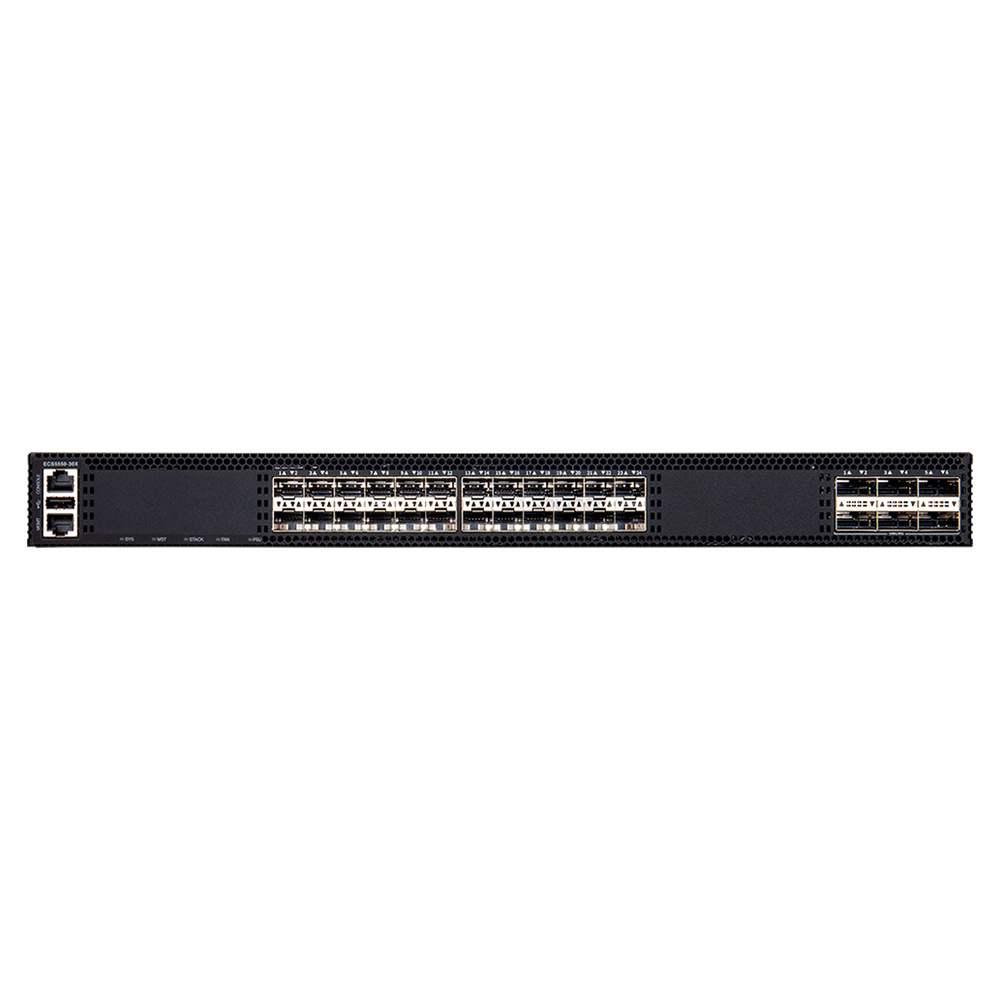

Edge-Core ECS5550-30X 24-Port 10G Aggregation Switch

MFR# ECS5550-30X
Authorized Dealer
Check availability

Request Pricing
?

B2B Pricing

Shop with confidence knowing that you have a dedicated B2B account team ready to answer any technical or sales questions.

  • Exclusive business pricing
  • Custom quotes
  • Responsive technical support
  • Pre-sales and after-sales support
Request a Quote
Add to Quote Cart
Brand: Edge-Core
Product Type: Ethernet Switch
Main Port Count: 24 Ports
Main Port Type: SFP+
Main Port Speed: 2.5GbE, 1GbE, 10GbE

Edge-Core ECS5550-30X 24-Port 10G Aggregation Switch, 24x1G/2.5G/10G SFP+, 6x40G/100G QSFP+/QSFP28, 1680 Gbps Switching Capacity, 8 GB eMMC Flash, 4 GB DRAM

Ask a Product Specialist

Looking for something else or have a question about this product?
800.398.1262  |  Email
Get a Quote
Overview

Edge-Core ECS5550-30X is a 24-port 10G aggregation switch for carrier aggregation and small data-center top-of-rack deployments.

Use Cases

  • Carrier and enterprise aggregation
  • Small data-center top-of-rack

Ports & Switching

  • 24 x 1G/2.5G/10G SFP+
  • 6 x 40G/100G QSFP+/QSFP28
  • 1680 Gbps switching capacity
  • 600 Mpps forwarding rate
  • 1 x RJ45 console
  • 1 x RJ45 management
  • 1 x Type A USB

Hardware & Platform

  • 8 GB eMMC flash
  • 4 GB DRAM
  • 6 MB packet buffer
  • 32 K MAC address table
  • 17.402 x 16.535 x 1.717 in. (W x D x H)
  • Weight: 8.49 lb

Management & Licensing

  • CLI, web and SNMP management
  • Software version confirmed with quote
  • Cloud service requirements confirmed with quote

Cooling & Power

  • AC PSU: 100-240 VAC 50/60 Hz; DC PSU: 36-72 VDC
  • 200 W maximum system consumption
  • 3+1 fan redundancy

Efficiency & Reliability

  • -5 to 50 C operating temperature

Ordering Information

  • Exact model: ECS5550-30X
  • Firmware and regional kit confirmed with quote
  • PSU configuration confirmed with quote
  • Optics and cables selected for the deployment
Specifications
Product Type

Ethernet Switch
Main Port Count

24 Ports
Main Port Type

SFP+
Main Port Speed

2.5GbE, 1GbE, 10GbE
Uplink Port Count

6 Ports
Uplink Port Type

QSFP+, QSFP28
Uplink Port Speed

100GbE, 40GbE
Flash Memory

8GB eMMC
Layer Switching

L2, L3
Dimensions

17.402 x 16.535 x 1.717 in
Weight

8.49 lb
Warranty
All new products are covered by the manufacturer warranty. To claim warranty, you may contact the manufacturer directly or contact your account executive at Hardware Nation. We can help facilitate the warranty processes between the customer and manufacturer.
SKU: ECS5550-30X Categories: , Brand:
