Overview

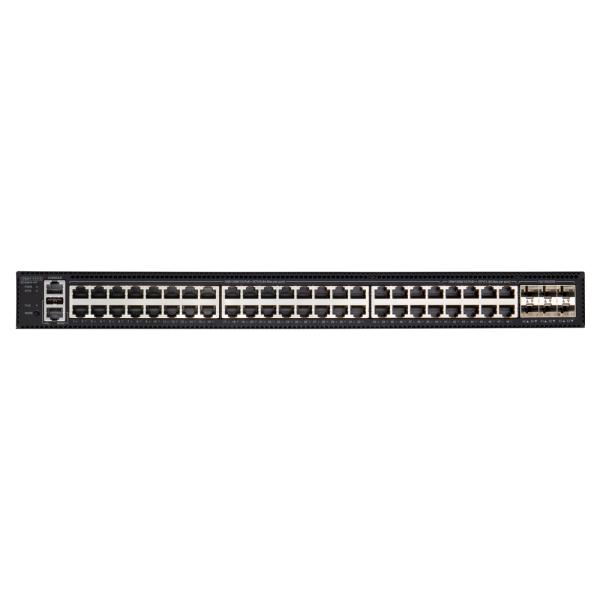

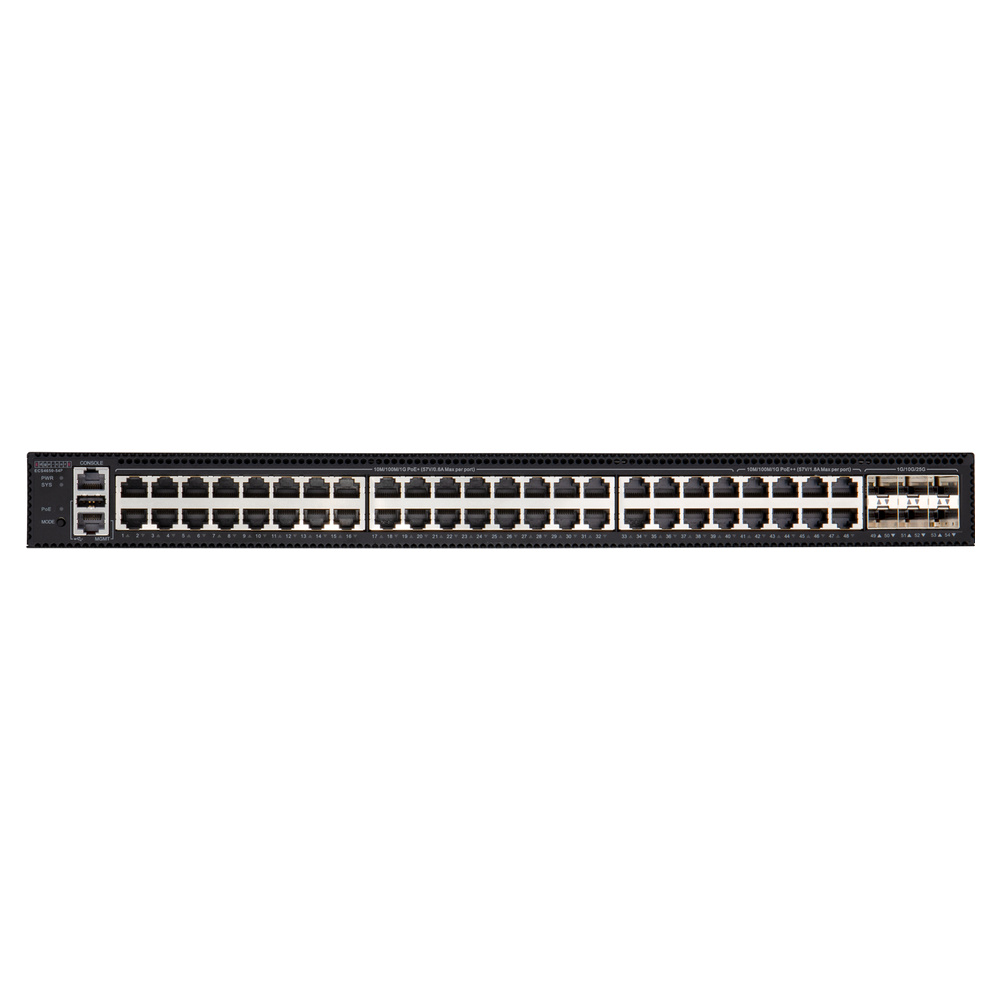

Edge-Core ECS4650-54P is a 48-port PoE Ethernet switch for managed infrastructure deployments.
Use Cases
- Enterprise access and aggregation
Ports & Switching
- 48 x 10/100/1000BASE-T
- 6 x 25G SFP28
- 396 Gbps switching capacity
- 295 Mpps forwarding rate
- 1 x RJ45 console
- 1 x 1GE RJ45 management
- 1 x Type A USB
Hardware & Platform
- 512 MB NAND flash
- 2 GB DRAM
- 3 MB packet buffer
- 32 K MAC address table
- 17.402 x 16.535 x 1.717 in. (W x D x H)
- Weight: 12.13 lb
Management & Licensing
- CLI, web and SNMP management
- Software version confirmed with quote
- Cloud service requirements confirmed with quote
Cooling & Power
- 100-240 VAC 50/60 Hz
- 40 x 802.3at PoE+; 8 x 802.3bt up to 90 W
- 740 W total PoE budget
- 835 W maximum system consumption
Efficiency & Reliability
- -5 to 45 C operating temperature
Ordering Information
- Exact model: ECS4650-54P
- Firmware and regional kit confirmed with quote
- Available PoE depends on total budget
- Optics and cables selected for the deployment
