Overview

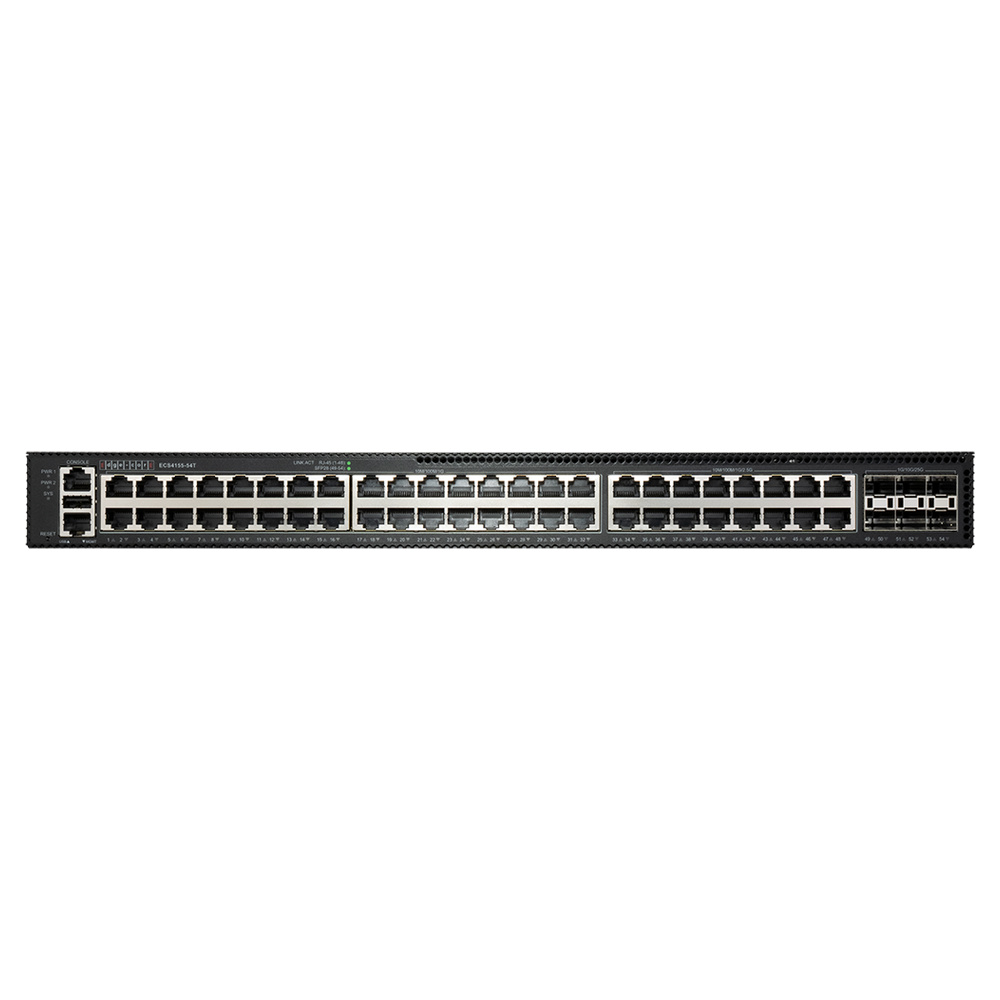

Edge-Core ECS4155-54T is a 48-port Ethernet switch for managed infrastructure deployments.
Use Cases
- Enterprise access and aggregation
Ports & Switching
- 32 x 10M/100M/1G RJ45; 16 x 100M/1G/2.5G RJ45
- 6 x 1G/10G/25G SFP28
- 444 Gbps switching capacity
- 328 Mpps forwarding rate
- 1 x RJ45 console
- 1 x RJ45 management
- 1 x Type A USB
Hardware & Platform
- 8 MB NOR / 16 GB eMMC flash
- 4 GB DRAM
- 3 MB packet buffer
- 32 K MAC address table
- 17.323 x 14.567 x 1.732 in. (W x D x H)
- Weight: 12.39 lb
Management & Licensing
- CLI, web and SNMP management
- Software version confirmed with quote
- Cloud service requirements confirmed with quote
Cooling & Power
- 100-240 VAC, 50/60 Hz; DC PSU -42 to -60 V available for 54T only
- 95 W maximum system consumption
Efficiency & Reliability
- -5 to 50 C operating temperature
Ordering Information
- Exact model: ECS4155-54T
- Firmware and regional kit confirmed with quote
- Optics and cables selected for the deployment
