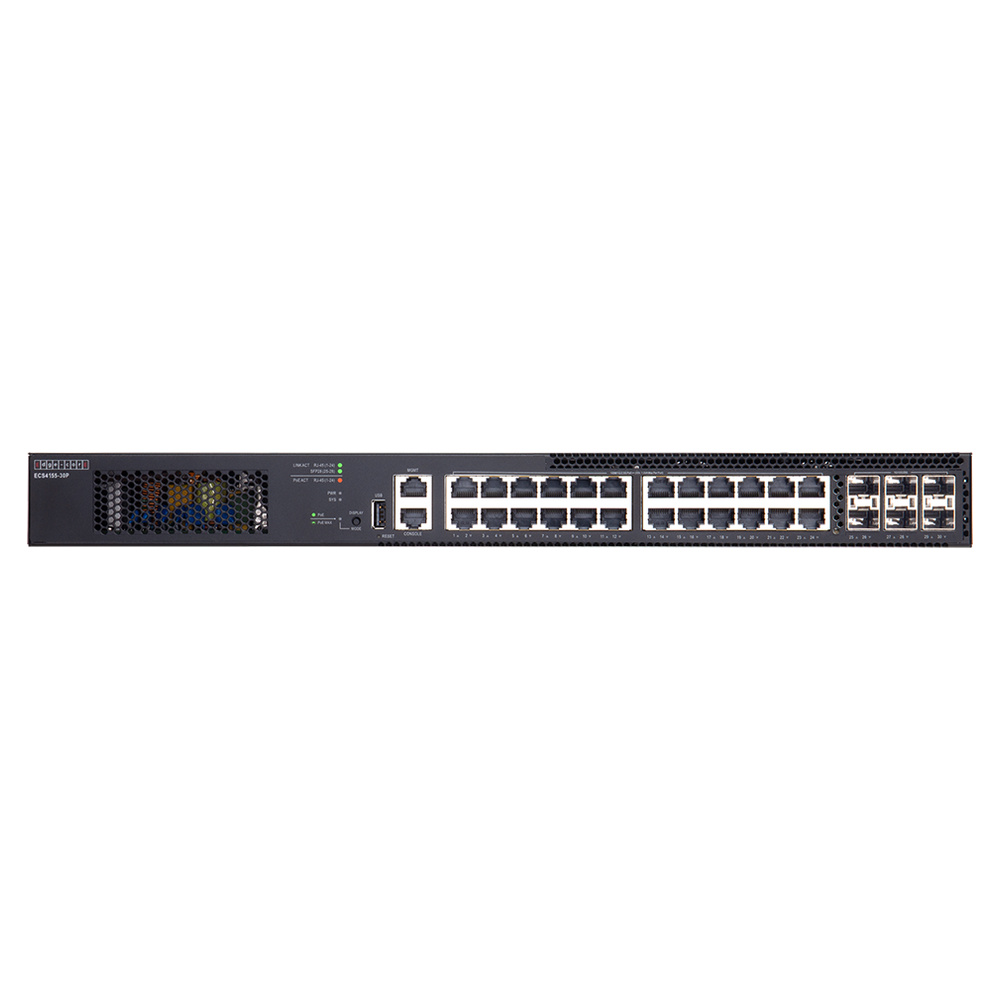

Edge-Core ECS4155-30P 24-Port PoE Ethernet Switch

MFR# ECS4155-30P
Authorized Dealer
Check availability

Request Pricing
?

B2B Pricing

Shop with confidence knowing that you have a dedicated B2B account team ready to answer any technical or sales questions.

  • Exclusive business pricing
  • Custom quotes
  • Responsive technical support
  • Pre-sales and after-sales support
Request a Quote
Add to Quote Cart
Brand: Edge-Core
Product Type: Ethernet Switch
Main Port Count: 24 Ports
Main Port Type: RJ45
Main Port Speed: 2.5GbE, 1GbE

Edge-Core ECS4155-30P 24-Port PoE Ethernet Switch, 24x100M/1G/2.5G RJ45, 6x1G/10G/25G SFP28, 420 Gbps Switching Capacity, 8 MB NOR / 16 GB eMMC Flash, 4 GB DRAM, 750 W Total PoE Budget

Ask a Product Specialist

Looking for something else or have a question about this product?
800.398.1262  |  Email
Get a Quote
Overview

Edge-Core ECS4155-30P is a 24-port PoE Ethernet switch for managed infrastructure deployments.

Use Cases

  • Enterprise access and aggregation

Ports & Switching

  • 24 x 100M/1G/2.5G RJ45
  • 6 x 1G/10G/25G SFP28
  • 420 Gbps switching capacity
  • 310 Mpps forwarding rate
  • 1 x RJ45 console
  • 1 x RJ45 management
  • 1 x Type A USB

Hardware & Platform

  • 8 MB NOR / 16 GB eMMC flash
  • 4 GB DRAM
  • 3 MB packet buffer
  • 32 K MAC address table
  • 17.323 x 11.024 x 1.732 in. (W x D x H)
  • Weight: 10.56 lb

Management & Licensing

  • CLI, web and SNMP management
  • Software version confirmed with quote
  • Cloud service requirements confirmed with quote

Cooling & Power

  • 100-240 VAC, 50/60 Hz
  • 802.3af/at/bt, up to 90 W
  • 750 W total PoE budget
  • 950 W maximum system consumption

Efficiency & Reliability

  • -5 to 50 C operating temperature

Ordering Information

  • Exact model: ECS4155-30P
  • Firmware and regional kit confirmed with quote
  • Available PoE depends on total budget
  • Optics and cables selected for the deployment
Specifications
Product Type

Ethernet Switch
Main Port Count

24 Ports
Main Port Type

RJ45
Main Port Speed

2.5GbE, 1GbE
Uplink Port Count

6 Ports
Uplink Port Type

SFP28
Uplink Port Speed

10GbE, 1GbE, 25GbE
Flash Memory

8MB NOR / 16GB eMMC
Dimensions

17.323 x 11.024 x 1.732 in
Weight

10.56 lb
Warranty
