Overview

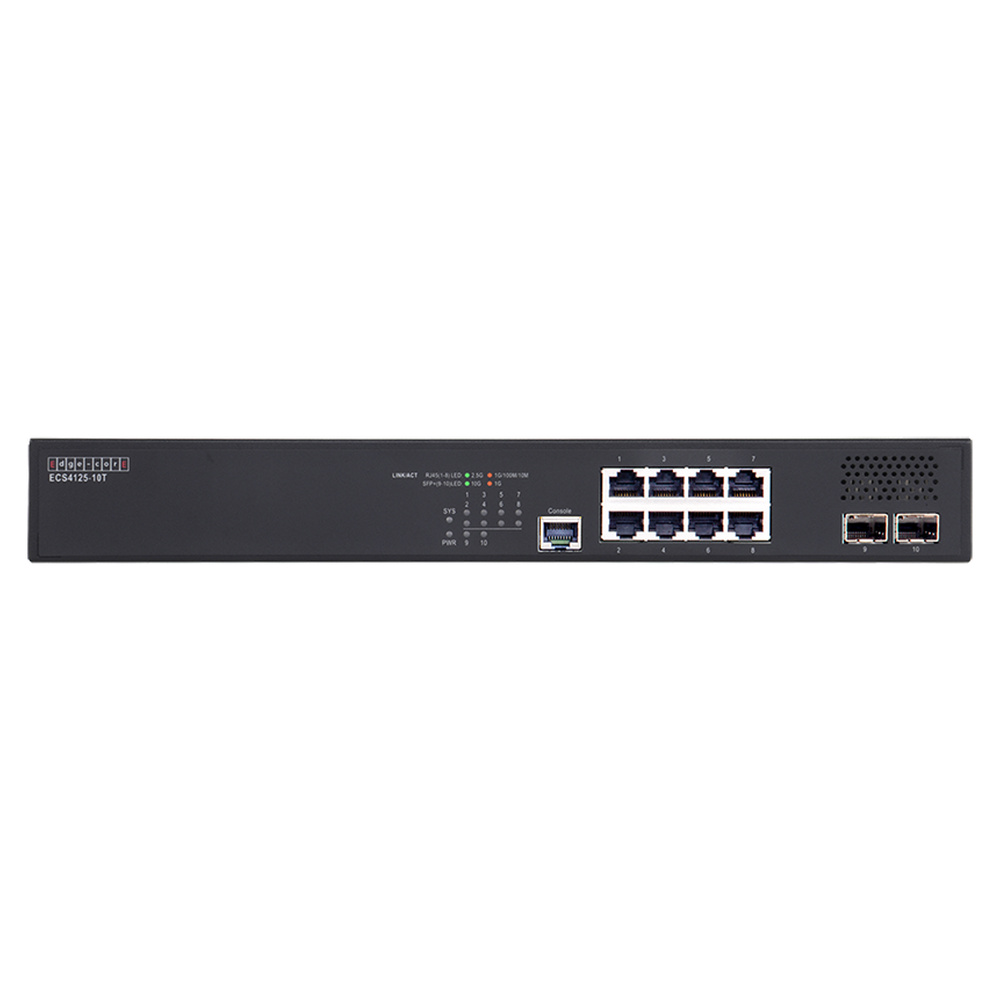

Edge-Core ECS4125-10T is an 8-port Ethernet switch for managed infrastructure deployments.
Use Cases
- Enterprise access and aggregation
Ports & Switching
- 8 x 1G/2.5G RJ45
- 2 x 10G SFP+
- 80 Gbps switching capacity
- 59.52 Mpps forwarding rate
- 1 x RJ45 console
Hardware & Platform
- 64 MB flash
- 1 GB DRAM
- 2 MB packet buffer
- 32 K MAC address table
- 12.992 x 8.189 x 1.732 in. (W x D x H)
- Weight: 4.36 lb
Management & Licensing
- CLI, web and SNMP management
- Software version confirmed with quote
- Cloud service requirements confirmed with quote
Cooling & Power
- 100-240 VAC 50/60 Hz
- 36 W maximum system consumption
Efficiency & Reliability
- 0 to 50 C operating temperature
Ordering Information
- Exact model: ECS4125-10T
- Firmware and regional kit confirmed with quote
- Optics and cables selected for the deployment
