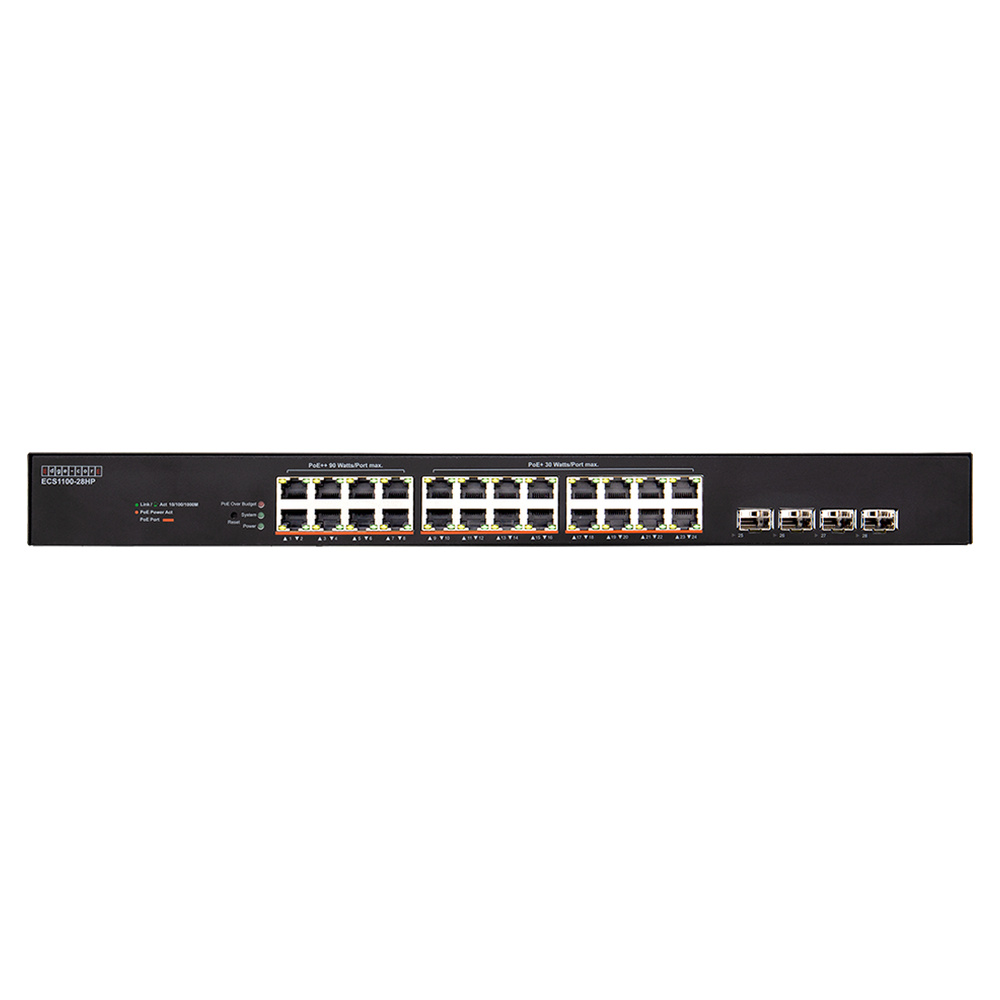

Edge-Core ECS1100-28HP 24-Port PoE Ethernet Switch

MFR# ECS1100-28HP
Authorized Dealer
Check availability

Request Pricing
?

B2B Pricing

Shop with confidence knowing that you have a dedicated B2B account team ready to answer any technical or sales questions.

  • Exclusive business pricing
  • Custom quotes
  • Responsive technical support
  • Pre-sales and after-sales support
Request a Quote
Add to Quote Cart
Brand: Edge-Core
Product Type: Ethernet Switch
Main Port Count: 24 Ports
Main Port Type: RJ45
Main Port Speed: 1GbE

Edge-Core ECS1100-28HP 24-Port PoE Ethernet Switch, 24x10/100/1000 RJ45 PoE, 4x100/1000 SFP, 56 Gbps Switching Capacity, 8 MB Flash, 480 W Total PoE Budget, Web and ecCLOUD Management

Ask a Product Specialist

Looking for something else or have a question about this product?
800.398.1262  |  Email
Get a Quote
Overview

Edge-Core ECS1100-28HP is a 24-port PoE Ethernet switch for managed infrastructure deployments.

Use Cases

  • High-power AP and smart-building deployments

Ports & Switching

  • 24 x 10/100/1000 RJ45 PoE
  • 4 x 100/1000 SFP
  • 56 Gbps switching capacity
  • 41.7 Mpps forwarding rate

Hardware & Platform

  • 8 MB flash
  • 4 Mbits packet buffer
  • 8 K MAC address table
  • 17.323 x 10.236 x 1.732 in. (W x D x H)
  • Weight: 7.80 lb

Management & Licensing

  • Web management
  • ecCLOUD management
  • Cloud service requirements confirmed with quote

Cooling & Power

  • 100-240 VAC 50/60 Hz
  • IEEE 802.3af/at/bt, up to 90 W (Type 4, Class 8)
  • 480 W total PoE budget
  • 560 W maximum system consumption

Efficiency & Reliability

  • 0 to 50 C operating temperature

Ordering Information

  • Exact model: ECS1100-28HP
  • Firmware and regional kit confirmed with quote
  • Available PoE depends on total budget
  • Optics and cables selected for the deployment
Specifications
Product Type

Ethernet Switch
Main Port Count

24 Ports
Main Port Type

RJ45
Main Port Speed

1GbE
Uplink Port Count

4 Ports
Uplink Port Type

SFP
Uplink Port Speed

1GbE
Flash Memory

8MB
Dimensions

17.323 x 10.236 x 1.732 in
Weight

7.80 lb
Warranty
All new products are covered by the manufacturer warranty. To claim warranty, you may contact the manufacturer directly or contact your account executive at Hardware Nation. We can help facilitate the warranty processes between the customer and manufacturer.
