Edge-Core AGR200 AS7927-50X 48x25G/50G SFP28/SFP56 Ports Aggregation Router

MFR# AS7927-50X
Authorized Dealer
Check availability

Request Pricing
?

B2B Pricing

Shop with confidence knowing that you have a dedicated B2B account team ready to answer any technical or sales questions.

  • Exclusive business pricing
  • Custom quotes
  • Responsive technical support
  • Pre-sales and after-sales support
Request a Quote
Add to Quote Cart
Brand Name: Edge-Core
Product Type: Aggregation Router
Main Port Count: 48 Ports
Main Port Type: SFP28, SFP56
Main Port Speed: 50GbE, 25GbE

Edge-Core AGR200 AS7927-50X 48x25G/50G SFP28/SFP56 Ports Aggregation Router, 1RU, 40x25GbE SFP28 and 8x50GbE SFP56 ports, 2x400GbE QSFP-DD ports, Broadcom Qumran3u BCM88400 ASIC, Intel Xeon D Ice Lake, 4 Cores Processor, Dual AC or DC PSU, Front-to-back or back-to-front options

Ask a Product Specialist

Open networking requires the right combination of hardware, software, and support to succeed. Our in-house engineering and support team works closely with industry-leading partners to help you source and integrate the right components, validate designs, and deploy with confidence, backed by two decades of successful deployments for data centers, service providers, and enterprises.

Looking for something else or have a question about this product?
800.398.1262  |  Live Chat  |  Email
Get a Quote
Overview

The Edge-Core AGR200 AS7927-50X combines 25G and 50G access connectivity with two 400G aggregation interfaces in a compact carrier routing platform.

Use Cases

  • Telecom access aggregation and metro transport
  • Secure data center edge routing

Ports & Switching

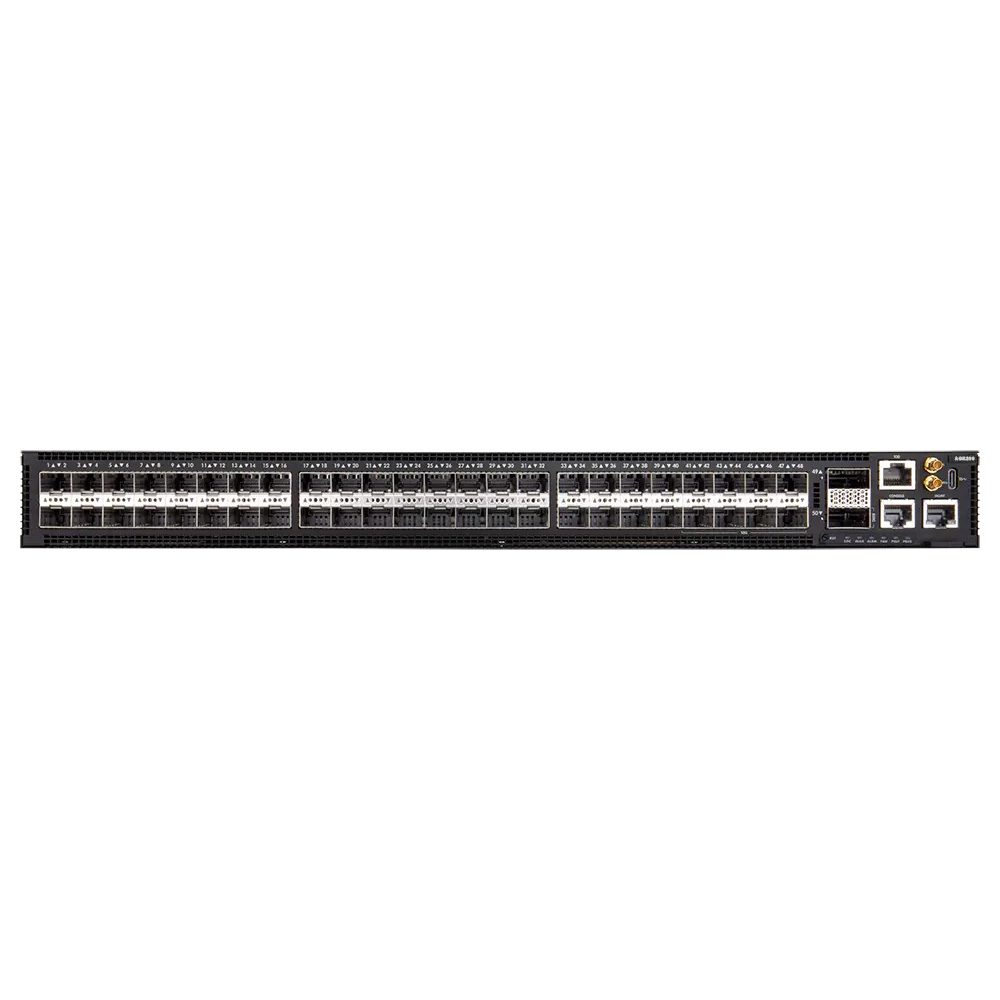

  • 40x25GbE SFP28 and 8x50GbE SFP56 ports
  • 2x400GbE QSFP-DD ports
  • 40x25G SFP28, 8x50G SFP56 and 2x400G QSFP-DD interfaces
  • One 400G interface supports an 800G upgrade option

Hardware & Platform

  • Broadcom Qumran3u BCM88400 silicon
  • Intel Xeon D Ice Lake, 4 Cores
  • 32GB DDR4 ECC system memory
  • 240GB NVMe SSD
  • 1RU rack form factor

Compatible Software (NOS)

  • Open Network Install Environment (ONIE)
  • IP Infusion lists OcNOS support as planned for this model. Confirm release availability before selecting OcNOS.

Cooling & Power

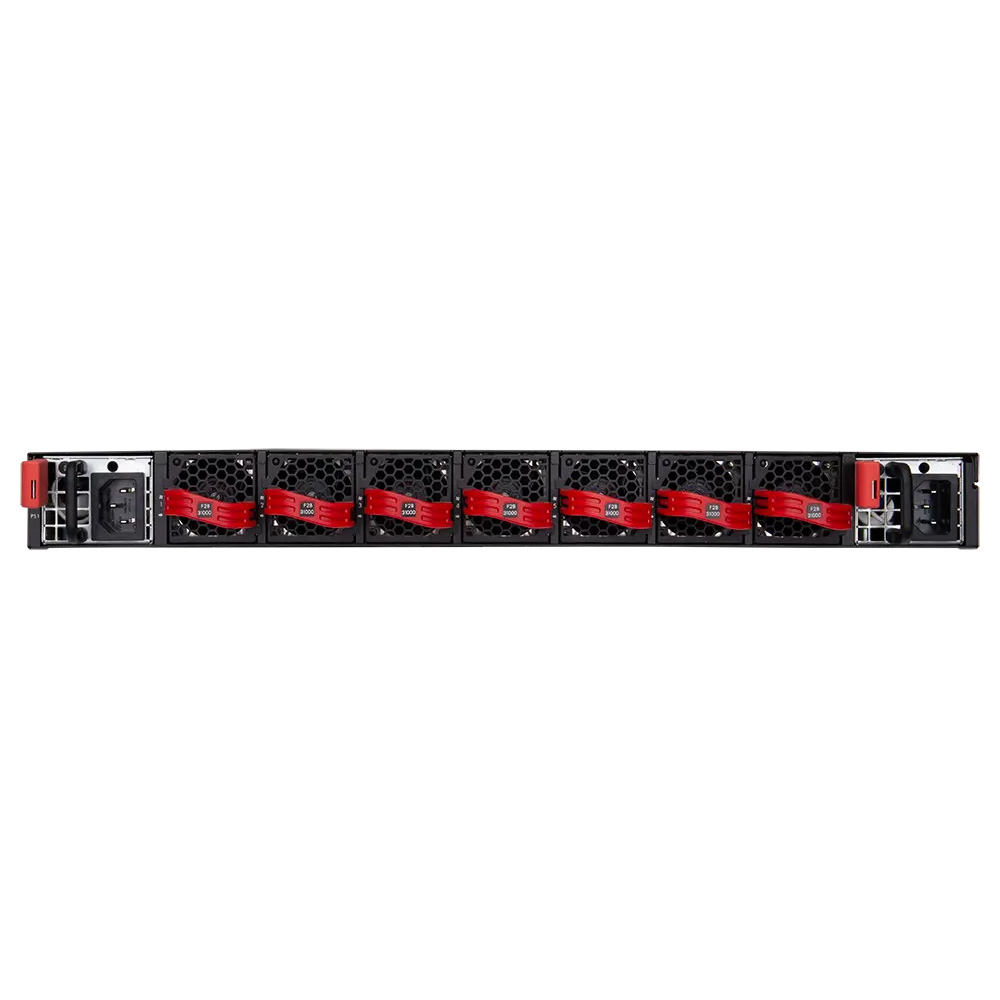

  • Dual AC or DC PSU
  • 6+1 hot-swappable fans
  • Front-to-back or back-to-front options

Efficiency & Reliability

  • MACsec and IPsec capabilities
  • 16GB packet buffering and OpenBMC management

Ordering Information

  • AS7927-50X AGR200 platform. AC/DC and airflow configurations require selection.
Specifications
Brand Name

Edge-Core
Product Type

Aggregation Router
Main Port Count

48 Ports
Main Port Type

SFP28, SFP56
Main Port Speed

50GbE, 25GbE
Uplink Port Count

2 Ports
Uplink Port Type

QSFP-DD
Uplink Port Speed

400GbE
ASIC

Broadcom Qumran3u BCM88400
Processor

Intel Xeon D Ice Lake, 4 Cores
Flash Memory

240GB NVMe SSD
Power Supply

Dual PSU
Software

Open Network Install Environment (ONIE)
