Overview

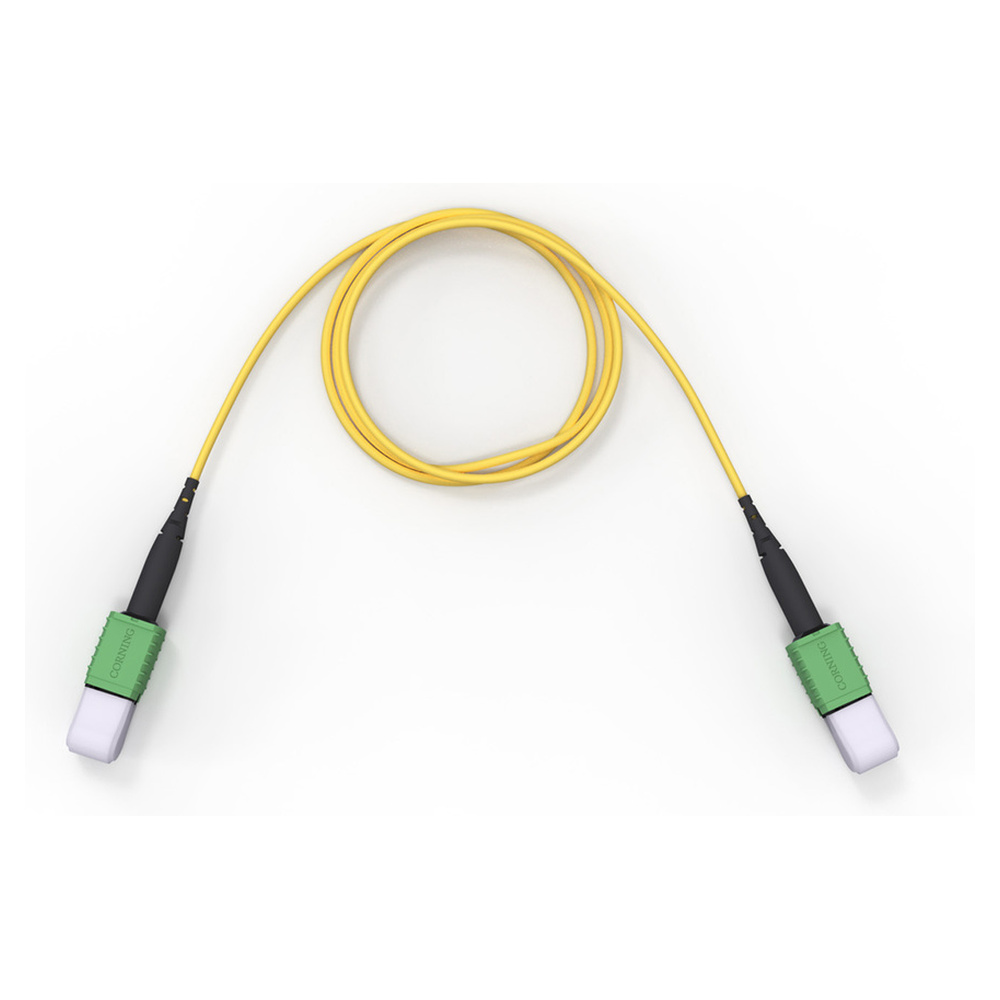

The Corning JE8E808GE8-NB010F is a 10 ft fiber cable, MTP PRO (non-pinned) to MTP PRO (non-pinned) with APC polish, 8 fibers of bend-improved SM (OS2), TIA-568 Type-B polarity and plenum flame rating.
Use Cases
- Passive fiber infrastructure
Connectors & Length
- Assembly ends: MTP to MTP
- Connectors: MTP PRO (non-pinned) to MTP PRO (non-pinned)
- Connector polish: APC / APC
- Cable length: 10 ft
Link Construction
- Media: Bend-improved SM (OS2) / OS2
- Operating temperature: -10 C to 60 C (14 F to 140 F )
- Fiber count: 8
- Polarity: TIA-568 Type-B
- Flame rating: Plenum
- Environment: Indoor
Compatibility
- Match fiber count, connector pinning, polish and polarity to the optical design
Ordering Information
- Exact manufacturer part number: JE8E808GE8-NB010F
- Confirm both ends and the required cable length
