Overview

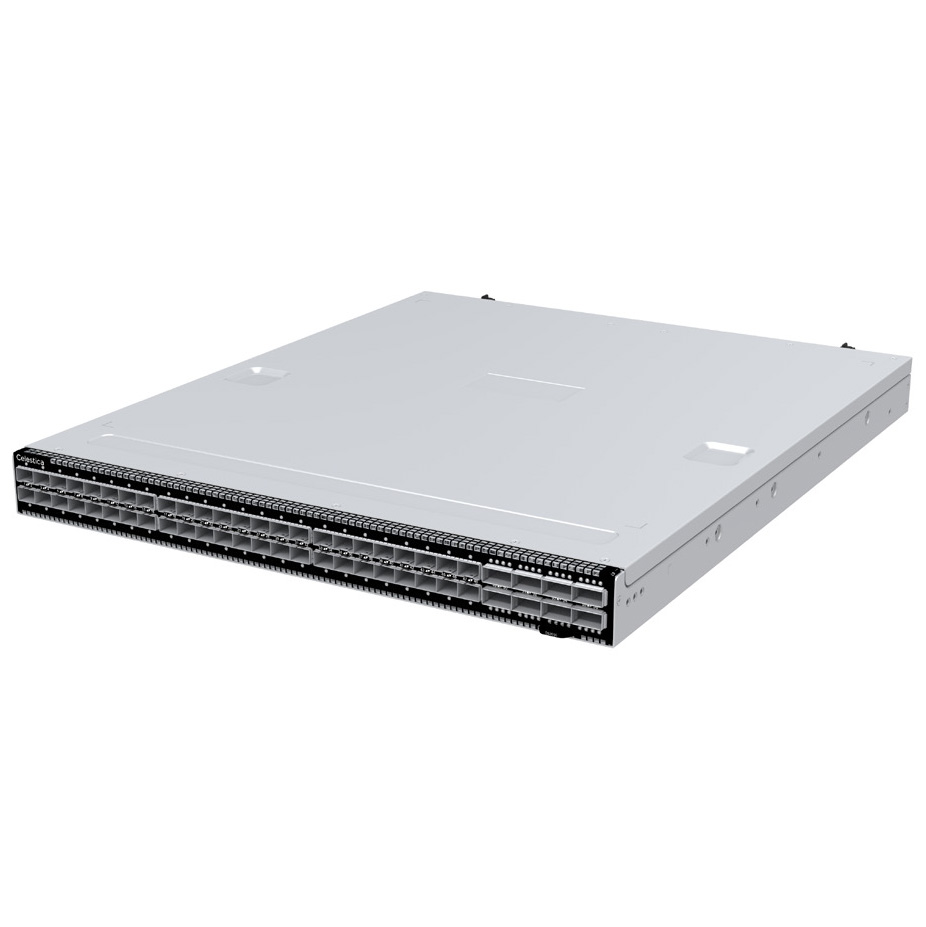

The Celestica DS2000 is a compact 1RU open network switch with 48×SFP28 (10/25G) ports and 8×QSFP28 (100G) uplinks, delivering 2.0Tbps of non-blocking throughput. Designed for next-gen top-of-rack, edge, and aggregation deployments, the DS2000 offers low latency, precision timing, and enterprise-grade BMC management, all with redundant power, airflow options, and SONiC support.
Use Cases
- 10G/25G Top-of-Rack (ToR) switching
- Enterprise edge or aggregation layer
- Broadband environments using XGS-PON
- Open and third-party NOS deployment
Ports & Optics
- 48 × SFP28 (10/25G) ports
- 8 × QSFP28 (100G) ports
- RJ45 management + console ports, USB Type-A
- SFP28 optics up to 2W, QSFP28 up to 5.5W
- Passive DACs supported up to 5m
Switch Hardware
- Switching capacity: 2.0 Tbps
- 32MB packet buffer
- Intel Denverton CPU (up to 8 cores)
- Up to 32GB ECC DDR4 RAM
- Configurable M.2 SSD
Platform Features
- ONIE preloaded (SONiC NOS ready)
- Supports SONiC, ONL, and Redfish API tools
- RunBMC w/ IPMI 2.0, Serial-over-LAN (SoL)
- IEEE 1588v2 and SyncE timing support
- Full L2–L3 hardware forwarding and tunneling
Traffic Management
- DCB, ETS, PFC, QCN congestion control
- Flexible QoS queues (UC/MC), WRR, WDRR, SP
- Storm control, mirroring, rate shaping
- Hierarchical ECMP, SDN-ready IP forwarding
- VXLAN, NVGRE, TRILL, MiM tunneling support
Cooling & Power
- 1RU rackmount chassis
- 1+1 redundant, hot-swappable PSUs
- 3+1 hot-swappable fan modules
- Front-to-back and back-to-front airflow options
- Max Power: <500W; Typical: ~350W
Environmental
- Operating Temp: 0°C to 45°C @900m
- Humidity: 5% to 90% non-condensing
- MTBF: >150,000 hours
- Compliance: CE, FCC, VCCI, UL, RoHS, CCC
Ordering Information
- R4041-F9004-A0: DS2000, 48x10/25G + 8x100G, 4C/16GB/64GB SSD (Back-to-Front airflow)
- R4041-F9007-A0: DS2000, 48x10/25G + 8x100G, 4C/16GB/64GB SSD (Front-to-Back airflow)
