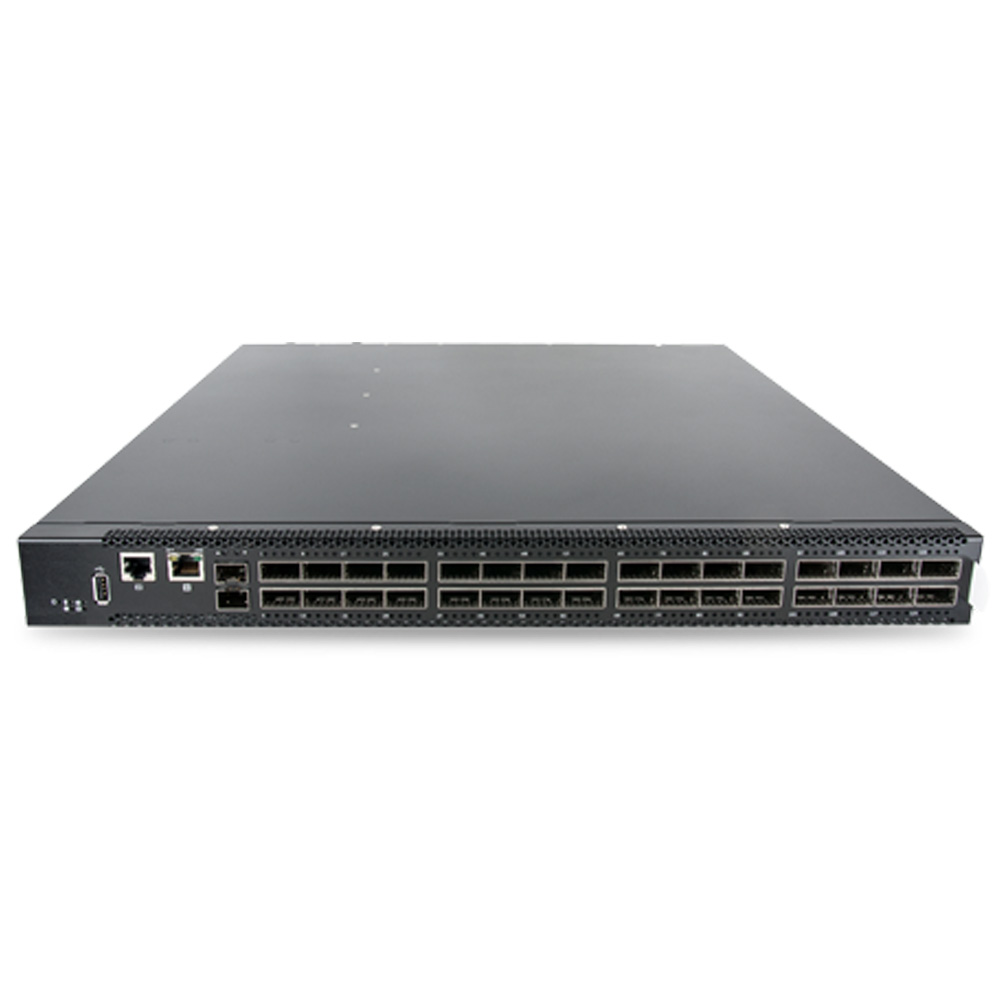

Alpha Networks SNH-61x2-320F 32x100G QSFP28 Ports Data Center Switch

MFR# SNH-61x2-320F
Authorized Dealer
Check availability

Request Pricing
?

B2B Pricing

Shop with confidence knowing that you have a dedicated B2B account team ready to answer any technical or sales questions.

  • Exclusive business pricing
  • Custom quotes
  • Responsive technical support
  • Pre-sales and after-sales support
Request a Quote
Add to Quote Cart
Brand Name: Alpha Networks
Product Type: Open Switches
Main Port Count: 32 Ports
Main Port Type: QSFP28
Main Port Speed: 100GbE

Alpha Networks SNH-61x2-320F 32x100G QSFP28 Ports Data Center Switch, 32x100GbE QSFP28 ports, Broadcom Trident 3 ASIC, x86 CPU platform, Redundant hot-swappable PSU

Ask a Product Specialist

Open networking requires the right combination of hardware, software, and support to succeed. Our in-house engineering and support team works closely with industry-leading partners to validate designs, integrate hardware and software, and coordinate support across vendors, so you don’t have to piece it all together yourself. We bring over a decade of successful deployments for data centers, service providers, and enterprises.

Looking for something else or have a question about this product?
800.398.1262  |  Email
Get a Quote
Overview

The Alpha Networks SNH-61x2-320F is a 100G data center switch based on the Broadcom Trident 3 ASIC with 32 QSFP28 ports for Ethernet fabrics.

Use Cases

  • Data center Ethernet networks

Ports & Switching

  • 32x100GbE QSFP28 ports
  • Two additional 10G SFP+ data interfaces
  • USB port

Hardware & Platform

  • Broadcom Trident 3 silicon
  • x86 CPU platform

Cooling & Power

  • Redundant hot-swappable PSU
  • 5+1 hot-swappable fans

Efficiency & Reliability

  • RJ45 console and RJ45 out-of-band management

Ordering Information

  • SNH-61x2-320F manufacturer model family as supplied
Specifications
Brand Name

Alpha Networks
Product Type

Open Switches
Main Port Count

32 Ports
Main Port Type

QSFP28
Main Port Speed

100GbE
ASIC

Broadcom Trident 3
Processor

x86 CPU platform
Frequently Asked Questions

Question:

What ports does the SNH-61x2-320F have?
Hardware Nation
12-Oct-2026

Answer:

32x100G QSFP28 ports and two 10G SFP+ data ports.

Question:

What switch chip does it use?
Hardware Nation
12-Oct-2026

Answer:

Broadcom Trident 3.

Question:

What is it designed for?
Hardware Nation
12-Oct-2026

Answer:

A data center spine with 100G connectivity.

Question:

How do I manage it?
Hardware Nation
12-Oct-2026

Answer:

An RJ45 serial console, an RJ45 out-of-band management port and a USB port.

Question:

What power and cooling arrangement does it use?
Hardware Nation
12-Oct-2026

Answer:

Hot-swappable, redundant power supplies and six hot-swappable fans in a 5+1 redundant arrangement.

Question:

How is it different from the SNC-60x0-488F?
Hardware Nation
12-Oct-2026

Answer:

The SNC-60x0-488F is a leaf with 48x25G access ports and eight 100G uplinks. The SNH-61x2-320F is a spine with 32x100G ports. Both use Trident 3 and include two 10G SFP+ data ports.
Warranty
All new products are covered by the manufacturer warranty. To claim warranty, you may contact the manufacturer directly or contact your account executive at Hardware Nation. We can help facilitate the warranty processes between the customer and manufacturer.
